Indexing plungers, stainless steel, without collar, with stainless steel mushroom grip and locknut (03093)

Configure

Thread(mm)
Travel S(mm)
- 3.5
- 4
- 5
- 6
- 8
- 10
- 12
- 16
Length L(mm)
- 34.5
- 43
- 50
- 59
- 77
- 83
- 87
- 106
Steel code
- 1.4034
- 1.4305
Surface finish body
- Hardened
- Not hardened
Size
- 0
- 1
- 2
- 3
- 4
- 5
- 9
D=pin diameter(mm)
- 3
- 4
- 5
- 6
- 8
- 10
- 12
- 16
D2(mm)
- 14
- 18
- 21
- 25
- 33
- 40
Fx30°(mm)
- 0.8
- 1
- 1.3
- 1.8
- 2.3
- 2.8
- 3.2
L1(mm)
- 17
- 21
- 24
- 28
- 36
- 40
- 42
- 50
L2(mm)
- 14
- 18
- 21
- 25
- 33
- 40
SW(mm)
- 10
- 13
- 17
- 19
- 24
- 30
- 36
Order No. screw-in washer
Spring force final pressure F2 approx.(N)
- 10
- 12
- 14
- 34
- 35
- 39
- 46
Spring force initial pressure F1 approx.(N)
- 4.5
- 5
- 6
- 15
- 20
Est. shipping days
- All
- Within 4 working days

Indexing plungers, stainless steel, without collar, with stainless steel mushroom grip and locknut (03093)

Catalog

Part number:

Still undefined. 16 possible part numbers found.

Part number list
More Information
Catalog

Part number list

Number of items

Part number

03093-002004
03093-002105
03093-002206
03093-002308
03093-002410
03093-002412
03093-002516
03093-002903
03093-112004
03093-112105
03093-112206
03093-112308
03093-112410
03093-112412
03093-112516
03093-112903

Thread

(mm)

Travel S

(mm)

Length L

(mm)

Steel code

Surface finish body

Size

D=pin diameter

(mm)

Fx30°

(mm)

Order No. screw-in washer

Spring force final pressure F2 approx.

(N)

Spring force initial pressure F1 approx.

(N)

Minimum order quantity

8x1	4	43	1.4034	Hardened	0	4	18	1	21	18	13	03094-90	12	6	1 pieces
10x1	5	50	1.4034	Hardened	1	5	21	1.3	24	21	17	03094-91	12	5	1 pieces
12x1.5	6	59	1.4034	Hardened	2	6	25	1.8	28	25	19	03094-92	14	6	1 pieces
16x1.5	8	77	1.4034	Hardened	3	8	33	2.3	36	33	24	03094-93	35	15	1 pieces
20x1.5	10	83	1.4034	Hardened	4	10	33	2.8	40	33	30	03094-94	34	15	1 pieces
20x1.5	12	87	1.4034	Hardened	4	12	33	2.8	42	33	30	03094-94	39	15	1 pieces
24x2	16	106	1.4034	Hardened	5	16	40	3.2	50	40	36	03094-95	46	20	1 pieces
6x0.75	3.5	34.5	1.4034	Hardened	9	3	14	0.8	17	14	10	03094-99	10	4.5	1 pieces
8x1	4	43	1.4305	Not hardened	0	4	18	1	21	18	13	03094-90	12	6	1 pieces
10x1	5	50	1.4305	Not hardened	1	5	21	1.3	24	21	17	03094-91	12	5	1 pieces
12x1.5	6	59	1.4305	Not hardened	2	6	25	1.8	28	25	19	03094-92	14	6	1 pieces
16x1.5	8	77	1.4305	Not hardened	3	8	33	2.3	36	33	24	03094-93	35	15	1 pieces
20x1.5	10	83	1.4305	Not hardened	4	10	33	2.8	40	33	30	03094-94	34	15	1 pieces
20x1.5	12	87	1.4305	Not hardened	4	12	33	2.8	42	33	30	03094-94	39	15	1 pieces
24x2	16	106	1.4305	Not hardened	5	16	40	3.2	50	40	36	03094-95	46	20	1 pieces
6x0.75	3.5	34.5	1.4305	Not hardened	9	3	14	0.8	17	14	10	03094-99	10	4.5	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

20.98 € ( 24.97 € )	4 working days
18.00 € ( 21.42 € )	4 working days
20.38 € ( 24.25 € )	4 working days
26.91 € ( 32.02 € )	4 working days
35.37 € ( 42.09 € )	4 working days
38.93 € ( 46.33 € )	4 working days
49.11 € ( 58.44 € )	4 working days
22.00 € ( 26.18 € )	4 working days
20.98 € ( 24.97 € )	4 working days
18.00 € ( 21.42 € )	4 working days
20.38 € ( 24.25 € )	4 working days
26.91 € ( 32.02 € )	4 working days
35.37 € ( 42.09 € )	4 working days
38.93 € ( 46.33 € )	4 working days
49.11 € ( 58.44 € )	4 working days
22.00 € ( 26.18 € )	4 working days

More Information

Basic information

Basic information

· Indexing plungers facilitate indexing and locking

· Application sectors: machine, instrument and fixture construction, measuring technology, domestic use

· High stability

· Stainless steel 1.4305, 1.4034

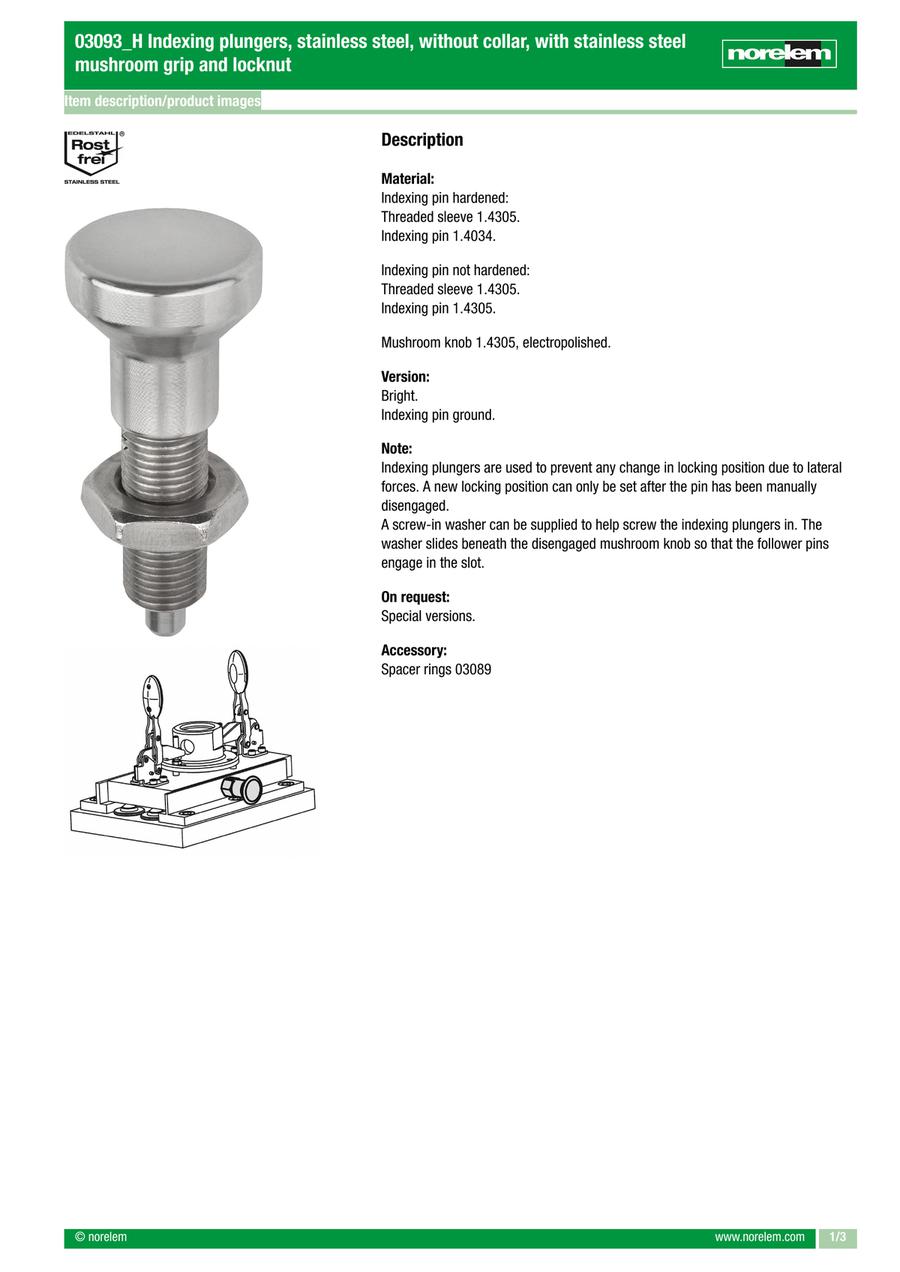

Catalog
