Configure
- Body Material
- Travel S(mm)
- 5
- 6
- 8
- 10
- Length L(mm)
- 47
- 56
- 74
- 80
- Steel code
- 1.4034
- 1.4305
- Grade
- 5.8
- Surface finish body
- Version 2
- Size
- 1
- 2
- 3
- 4
- D=pin diameter(mm)
- 5
- 6
- 8
- 10
- D2(mm)
- 21
- 25
- 33
- Fx30°(mm)
- 1.3
- 1.8
- 2.3
- 2.8
- L1(mm)
- 24
- 28
- 36
- 40
- L2(mm)
- 18
- 22
- 30
- SW(mm)
- 17
- 19
- 24
- 30
- Spring force final pressure F2 approx.(N)
- 12
- 14
- 34
- 35
- Spring force initial pressure F1 approx.(N)
- 5
- 6
- 15
- Est. shipping days
- All
- Within 4 working days

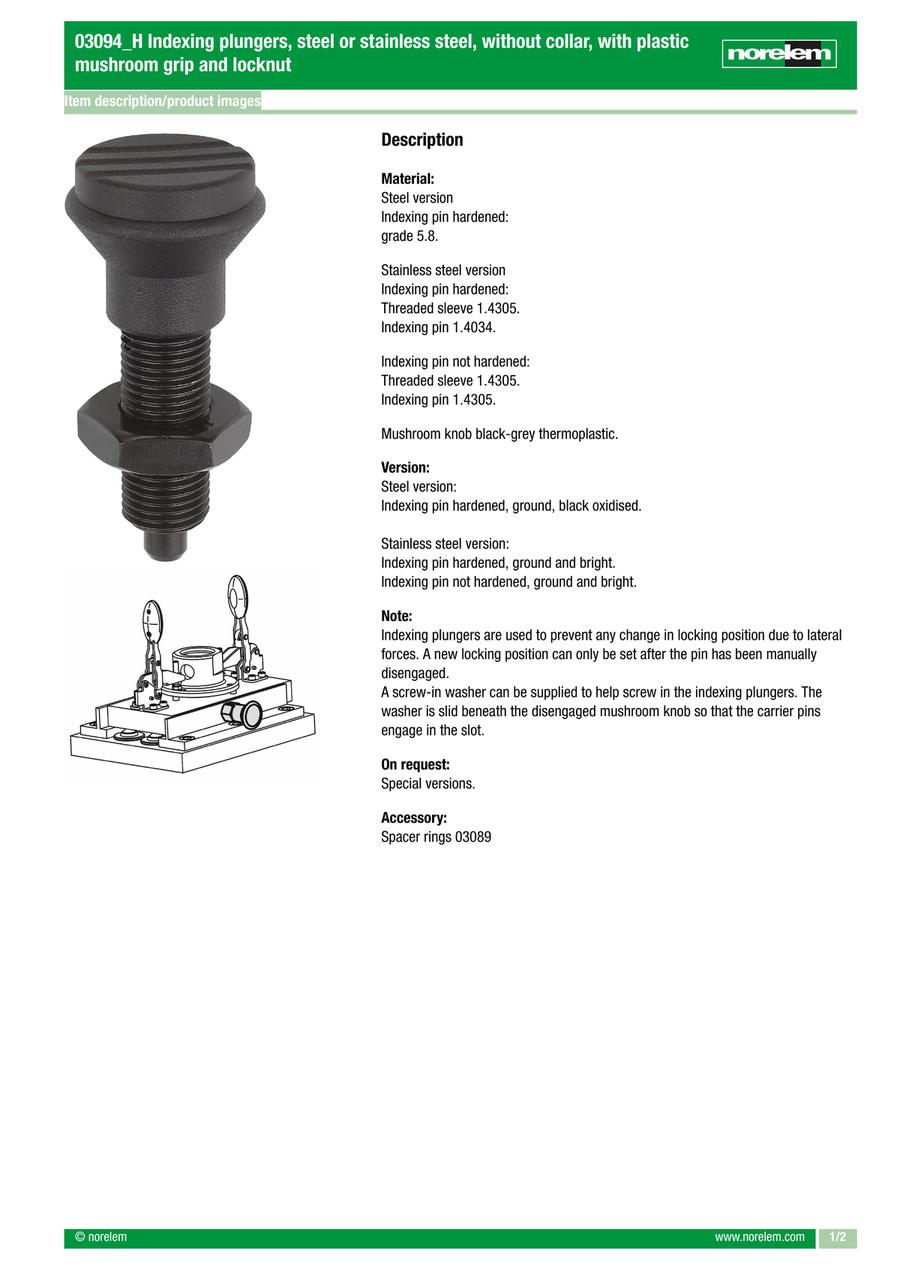

Indexing plungers, steel or stainless steel, without collar, with plastic mushroom grip and locknut (03094)
Part number:
possible part numbers found.Part number list
Number of items
| Part number |
|---|
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
13.70 € ( 16.30 € ) | 4 working days |
15.55 € ( 18.50 € ) | 4 working days |
18.46 € ( 21.97 € ) | 4 working days |
26.95 € ( 32.07 € ) | 4 working days |
13.11 € ( 15.60 € ) | 4 working days |
14.88 € ( 17.71 € ) | 4 working days |
17.62 € ( 20.97 € ) | 4 working days |
25.79 € ( 30.69 € ) | 4 working days |
7.44 € ( 8.85 € ) | 4 working days |
8.07 € ( 9.60 € ) | 4 working days |
9.83 € ( 11.70 € ) | 4 working days |
14.49 € ( 17.24 € ) | 4 working days |
More Information
Basic information
· Indexing plungers facilitate indexing and locking
· Application sectors: machine, instrument and fixture construction, measuring technology, domestic use
· High stability
· Material: steel or stainless steel
