Configure

B(mm)
- 17.6
- 23
- 33
D(mm)
- 39.3
- 52.2
- 70.2
D1=Pin diameter
- 5
- 6
- 8
- 10
- 12
- 16
D2(mm)
- 5.5
- 6.85
- 9.5
- 12
- 14.5
- 19
D3(mm)
- 13.2
- 17.3
- 26.3
D4(mm)
- 26
- 35.4
- 47
L=Length(mm)
- 10
- 15
- 20
- 25
- 30
- 35
- 40
- 45
- 50
- 60
- 70
- 80
L1(mm)
- 5.9
- 6.8
- 7.8
- 8.9
- 9.9
- 13.1
L2(mm)
- 25
- 33
- 39.5
L3(mm)
- 19.2
- 24.2
- 28.4
L5(mm)
- 15.9
- 16.8
- 20.9
- 21.8
- 25.9
- 26.8
- 27.8
- 28.9
- 30.9
- 31.8
- 32.8
- 33.9
- 34.9
- 35.9
- 36.8
- 37.8
- 38.9
- 39.9
- 41.8
- 42.8
- 43.1
- 43.9
- 44.9
- 46.8
- 47.8
- 48.1
- 48.9
- 49.9
- 51.8
- 52.8
- 53.1
- 53.9
- 54.9
- 56.8
- 57.8
- 58.1
- 58.9
- 59.9
- 63.1
- 68.9
- 69.9
- 73.1
- 79.9
- 83.1
- 89.9
- 93.1
Receiving hole H11(mm)
- 5
- 6
- 8
- 10
- 12
- 16
Shearing force double shear max.(kN)
- 15
- 22
- 38
- 60
- 86
- 153
Est. shipping days
- All
- Within 4 working days

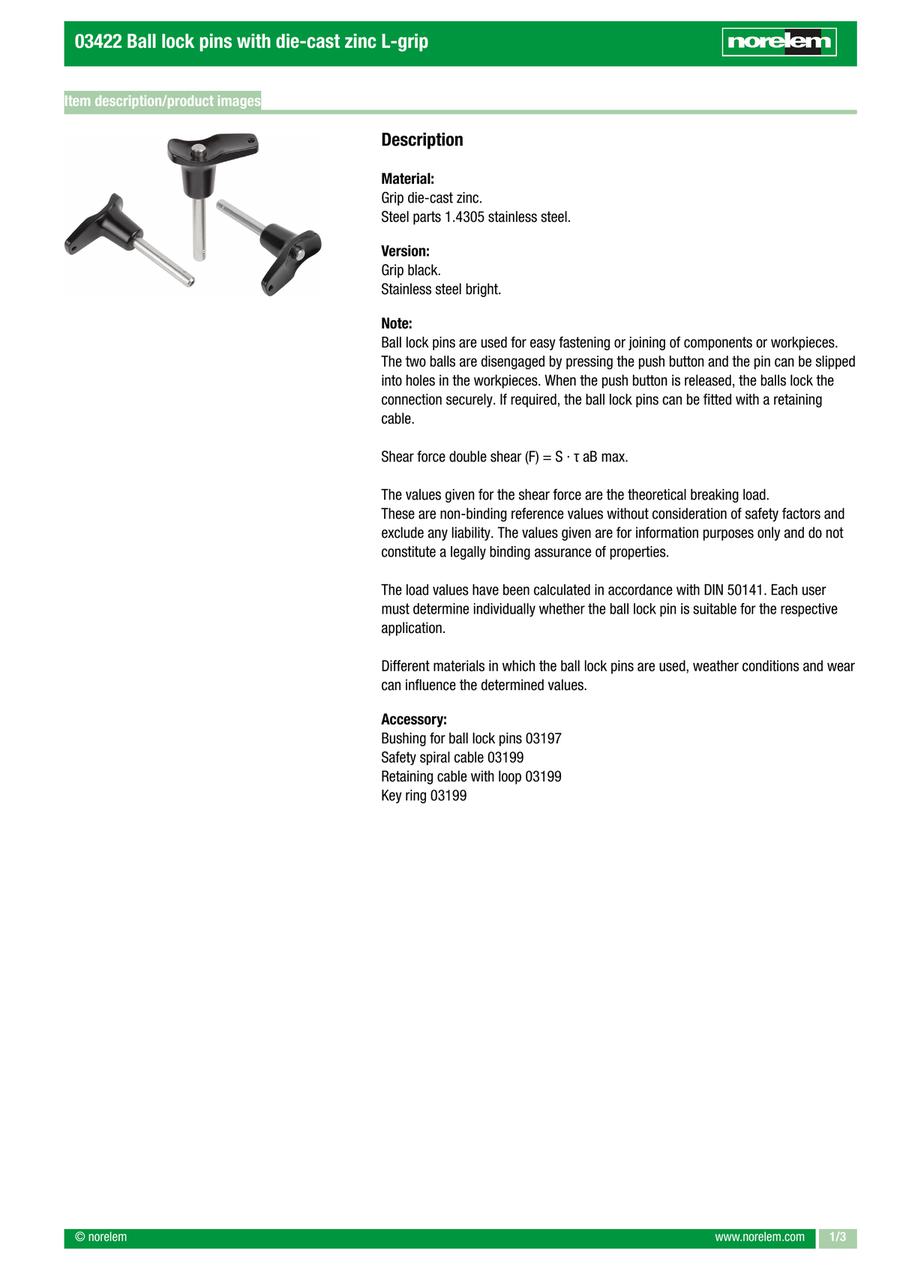

Ball lock pins with die-cast zinc L-grip (03422)

Catalog

Part number:

Still undefined. 46 possible part numbers found.

Part number list
More Information
Catalog

Part number list

Number of items

Part number

(mm)

D1=Pin diameter

(mm)

L=Length

(mm)

Receiving hole H11

(mm)

Shearing force double shear max.

(kN)

Minimum order quantity

17.6	39.3	5	5.5	13.2	26	10	5.9	25	19.2	15.9	5	15	1 pieces
17.6	39.3	5	5.5	13.2	26	15	5.9	25	19.2	20.9	5	15	1 pieces
17.6	39.3	5	5.5	13.2	26	20	5.9	25	19.2	25.9	5	15	1 pieces
17.6	39.3	5	5.5	13.2	26	25	5.9	25	19.2	30.9	5	15	1 pieces
17.6	39.3	5	5.5	13.2	26	30	5.9	25	19.2	35.9	5	15	1 pieces
17.6	39.3	6	6.85	13.2	26	10	6.8	25	19.2	16.8	6	22	1 pieces
17.6	39.3	6	6.85	13.2	26	15	6.8	25	19.2	21.8	6	22	1 pieces
17.6	39.3	6	6.85	13.2	26	20	6.8	25	19.2	26.8	6	22	1 pieces
17.6	39.3	6	6.85	13.2	26	25	6.8	25	19.2	31.8	6	22	1 pieces
17.6	39.3	6	6.85	13.2	26	30	6.8	25	19.2	36.8	6	22	1 pieces
17.6	39.3	6	6.85	13.2	26	35	6.8	25	19.2	41.8	6	22	1 pieces
17.6	39.3	6	6.85	13.2	26	40	6.8	25	19.2	46.8	6	22	1 pieces
17.6	39.3	6	6.85	13.2	26	45	6.8	25	19.2	51.8	6	22	1 pieces
17.6	39.3	6	6.85	13.2	26	50	6.8	25	19.2	56.8	6	22	1 pieces
23	52.2	8	9.5	17.3	35.4	20	7.8	33	24.2	27.8	8	38	1 pieces
23	52.2	8	9.5	17.3	35.4	25	7.8	33	24.2	32.8	8	38	1 pieces
23	52.2	8	9.5	17.3	35.4	30	7.8	33	24.2	37.8	8	38	1 pieces
23	52.2	8	9.5	17.3	35.4	35	7.8	33	24.2	42.8	8	38	1 pieces
23	52.2	8	9.5	17.3	35.4	40	7.8	33	24.2	47.8	8	38	1 pieces
23	52.2	8	9.5	17.3	35.4	45	7.8	33	24.2	52.8	8	38	1 pieces
23	52.2	8	9.5	17.3	35.4	50	7.8	33	24.2	57.8	8	38	1 pieces
23	52.2	10	12	17.3	35.4	20	8.9	33	24.2	28.9	10	60	1 pieces
23	52.2	10	12	17.3	35.4	25	8.9	33	24.2	33.9	10	60	1 pieces
23	52.2	10	12	17.3	35.4	30	8.9	33	24.2	38.9	10	60	1 pieces
23	52.2	10	12	17.3	35.4	35	8.9	33	24.2	43.9	10	60	1 pieces
23	52.2	10	12	17.3	35.4	40	8.9	33	24.2	48.9	10	60	1 pieces
23	52.2	10	12	17.3	35.4	45	8.9	33	24.2	53.9	10	60	1 pieces
23	52.2	10	12	17.3	35.4	50	8.9	33	24.2	58.9	10	60	1 pieces
23	52.2	10	12	17.3	35.4	60	8.9	33	24.2	68.9	10	60	1 pieces
33	70.2	12	14.5	26.3	47	25	9.9	39.5	28.4	34.9	12	86	1 pieces
33	70.2	12	14.5	26.3	47	30	9.9	39.5	28.4	39.9	12	86	1 pieces
33	70.2	12	14.5	26.3	47	35	9.9	39.5	28.4	44.9	12	86	1 pieces
33	70.2	12	14.5	26.3	47	40	9.9	39.5	28.4	49.9	12	86	1 pieces
33	70.2	12	14.5	26.3	47	45	9.9	39.5	28.4	54.9	12	86	1 pieces
33	70.2	12	14.5	26.3	47	50	9.9	39.5	28.4	59.9	12	86	1 pieces
33	70.2	12	14.5	26.3	47	60	9.9	39.5	28.4	69.9	12	86	1 pieces
33	70.2	12	14.5	26.3	47	70	9.9	39.5	28.4	79.9	12	86	1 pieces
33	70.2	12	14.5	26.3	47	80	9.9	39.5	28.4	89.9	12	86	1 pieces
33	70.2	16	19	26.3	47	30	13.1	39.5	28.4	43.1	16	153	1 pieces
33	70.2	16	19	26.3	47	35	13.1	39.5	28.4	48.1	16	153	1 pieces
33	70.2	16	19	26.3	47	40	13.1	39.5	28.4	53.1	16	153	1 pieces
33	70.2	16	19	26.3	47	45	13.1	39.5	28.4	58.1	16	153	1 pieces
33	70.2	16	19	26.3	47	50	13.1	39.5	28.4	63.1	16	153	1 pieces
33	70.2	16	19	26.3	47	60	13.1	39.5	28.4	73.1	16	153	1 pieces
33	70.2	16	19	26.3	47	70	13.1	39.5	28.4	83.1	16	153	1 pieces
33	70.2	16	19	26.3	47	80	13.1	39.5	28.4	93.1	16	153	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

21.64 € ( 25.75 € )	4 working days
21.64 € ( 25.75 € )	4 working days
21.64 € ( 25.75 € )	4 working days
21.64 € ( 25.75 € )	4 working days
23.10 € ( 27.49 € )	4 working days
21.85 € ( 26.00 € )	4 working days
21.85 € ( 26.00 € )	4 working days
21.85 € ( 26.00 € )	4 working days
21.85 € ( 26.00 € )	4 working days
23.10 € ( 27.49 € )	4 working days
23.10 € ( 27.49 € )	4 working days
23.10 € ( 27.49 € )	4 working days
23.10 € ( 27.49 € )	4 working days
23.10 € ( 27.49 € )	4 working days
23.65 € ( 28.14 € )	4 working days
23.65 € ( 28.14 € )	4 working days
25.30 € ( 30.11 € )	4 working days
25.30 € ( 30.11 € )	4 working days
25.30 € ( 30.11 € )	4 working days
25.30 € ( 30.11 € )	4 working days
25.30 € ( 30.11 € )	4 working days
35.22 € ( 41.91 € )	4 working days
35.22 € ( 41.91 € )	4 working days
36.87 € ( 43.88 € )	4 working days
36.87 € ( 43.88 € )	4 working days
36.87 € ( 43.88 € )	4 working days
36.87 € ( 43.88 € )	4 working days
36.87 € ( 43.88 € )	4 working days
38.52 € ( 45.84 € )	4 working days
35.76 € ( 42.55 € )	4 working days
37.80 € ( 44.98 € )	4 working days
37.80 € ( 44.98 € )	4 working days
37.80 € ( 44.98 € )	4 working days
37.80 € ( 44.98 € )	4 working days
37.80 € ( 44.98 € )	4 working days
39.44 € ( 46.93 € )	4 working days
39.44 € ( 46.93 € )	4 working days
41.08 € ( 48.89 € )	4 working days
56.66 € ( 67.43 € )	4 working days
56.66 € ( 67.43 € )	4 working days
56.66 € ( 67.43 € )	4 working days
56.66 € ( 67.43 € )	4 working days
56.66 € ( 67.43 € )	4 working days
58.33 € ( 69.41 € )	4 working days
58.33 € ( 69.41 € )	4 working days
59.60 € ( 70.92 € )	4 working days

More Information

Basic information

Basic information

· For connecting machine parts and workpieces quickly and easily

· Application sectors: machine, instrument and fixture construction, measuring technology, domestic use

· Secure locking by simply pressing and releasing the push button
