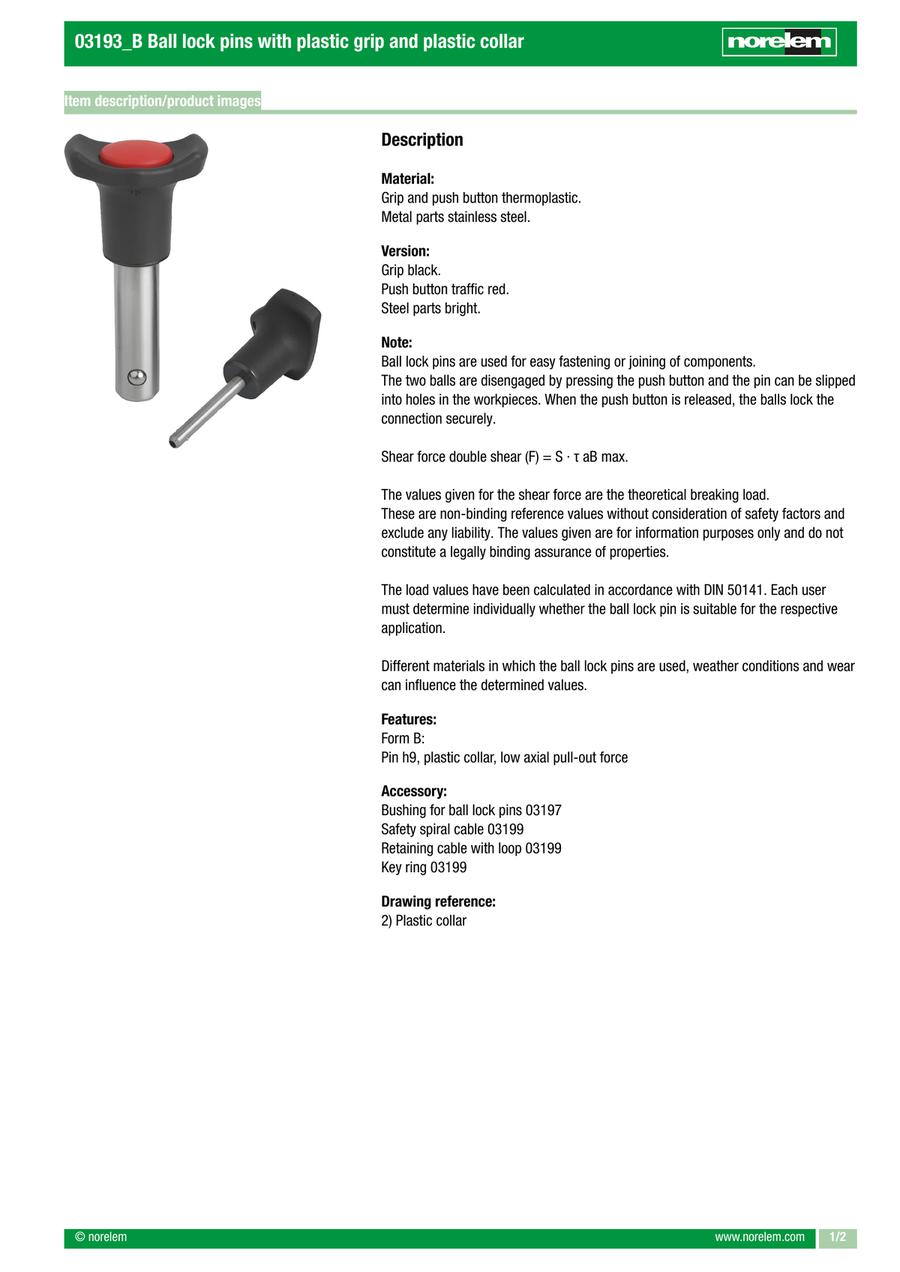

Ball lock pins with plastic grip and plastic collar (03193)
· Application sectors: machine, instrument and fixture construction, measuring technology, domestic use
· Secure locking by simply pressing and releasing the push button
· Self-locking
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 03193-13805015 |
| 03193-13805020 |
| 03193-13805025 |
| 03193-13805030 |
| 03193-13806030 |
| 03193-13806040 |
| 03193-13806050 |
| 03193-13808030 |
| 03193-13808040 |
| 03193-13808050 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | D1=Pin diameter | D2 (mm) | L=Length (mm) | L1 (mm) | L5 (mm) | Receiving hole H11 (mm) | Shearing force double shear max. (kN) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
16.73 € | 1 | 4 Days | 5 | 5.5 | 15 | 5.9 | 20.9 | 5 | 15 | ||
16.84 € | 1 | 4 Days | 5 | 5.5 | 20 | 5.9 | 25.9 | 5 | 15 | ||
16.84 € | 1 | 4 Days | 5 | 5.5 | 25 | 5.9 | 30.9 | 5 | 15 | ||
17.77 € | 1 | 4 Days | 5 | 5.5 | 30 | 5.9 | 35.9 | 5 | 15 | ||
17.77 € | 1 | 4 Days | 6 | 6.85 | 30 | 6.8 | 36.8 | 6 | 22 | ||
18.00 € | 1 | 4 Days | 6 | 6.85 | 40 | 6.8 | 46.8 | 6 | 22 | ||
18.00 € | 1 | 4 Days | 6 | 6.85 | 50 | 6.8 | 56.8 | 6 | 22 | ||
19.50 € | 1 | 4 Days | 8 | 9.5 | 30 | 7.8 | 37.8 | 8 | 38 | ||
19.83 € | 1 | 4 Days | 8 | 9.5 | 40 | 7.8 | 47.8 | 8 | 38 | ||
19.83 € | 1 | 4 Days | 8 | 9.5 | 50 | 7.8 | 57.8 | 8 | 38 |
Loading...
Basic information
| Type | Knob Type | Main material | Stainless steel | Surface finish body | Bright |
|---|---|---|---|---|---|
| Component material | Thermoplastic | Component colour | Black | Form | B |
| Colour Cap | Traffic red RAL 3020 | D(mm) | 38 | D3(mm) | 16 |
| L2(mm) | 33 |
Configure
Basic Attributes
-
D1=Pin diameter
-
D2(mm)
-
L=Length(mm)
-
L1(mm)
-
L5(mm)
-
Receiving hole H11(mm)
-
Shearing force double shear max.(kN)
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
