NORELEM

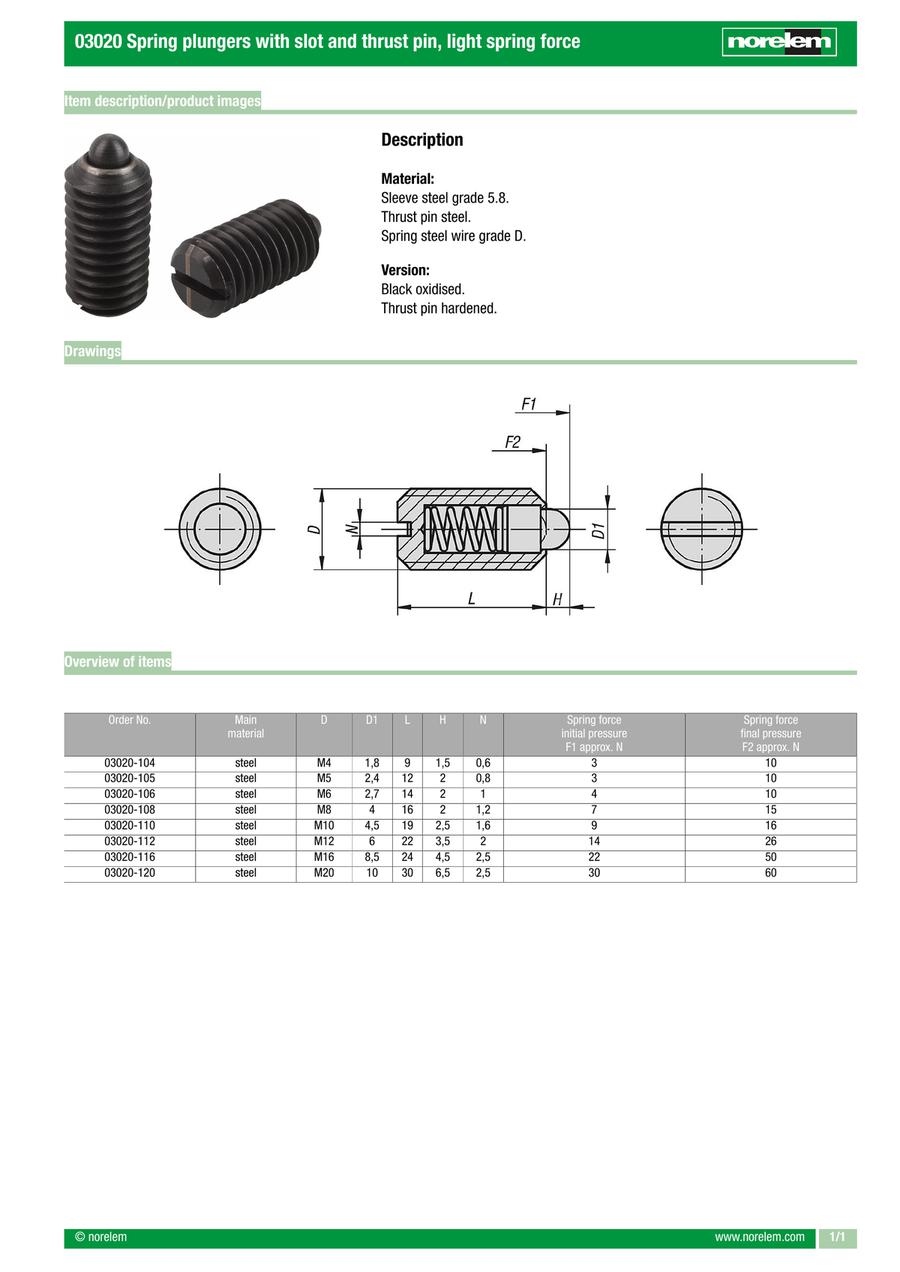

Spring plungers with slot and thrust pin, light spring force (03020)

Spring plungers with slot and thrust pin, light spring force (03020)

Part number:

Still undefined. 8 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    03020-104
    03020-105
    03020-106
    03020-108
    03020-110
    03020-112
    03020-116
    03020-120

    Body O.D./Thread M

    (mm)

    Initial Load

    (N)

    Max. Load

    (N)

    D1

    (mm)

    L=Length

    (mm)

    H

    (mm)

    N

    (mm)

    		Minimum order quantity
    4
    3
    10
    1.8
    9
    1.5
    0.6
    1 pieces
    5
    3
    10
    2.4
    12
    2
    0.8
    1 pieces
    6
    4
    10
    2.7
    14
    2
    1
    1 pieces
    8
    7
    15
    4
    16
    2
    1.2
    1 pieces
    10
    9
    16
    4.5
    19
    2.5
    1.6
    1 pieces
    12
    14
    26
    6
    22
    3.5
    2
    1 pieces
    16
    22
    50
    8.5
    24
    4.5
    2.5
    1 pieces
    20
    30
    60
    10
    30
    6.5
    2.5
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    1.34 €
    ( 1.59 € )
    4 working days
    1.34 €
    ( 1.59 € )
    4 working days
    1.42 €
    ( 1.69 € )
    4 working days
    1.70 €
    ( 2.02 € )
    4 working days
    1.75 €
    ( 2.08 € )
    4 working days
    2.51 €
    ( 2.99 € )
    4 working days
    3.37 €
    ( 4.01 € )
    4 working days
    5.27 €
    ( 6.27 € )
    4 working days
  • 1

    • More Information

    Basic information

    · Quick indexing, positioning and fixating of components

    · Application sectors: machine and plant construction, trade, domestic

    · Universally applicable

    · Simple assembly

    · Hardened thrust pin
