Configure
- Tip Material
- Stainless Steel
- Others
- POM
- Initial Load(N)
- 5
- 12
- 19
- 22
- 42
- 54
- D=outside diameter(mm)
- 3
- 4
- 5
- 6
- 8
- 10
- 12
- D1(mm)
- 2
- 3
- 4
- 5
- 6
- 8
- 10
- L=Length(mm)
- 7
- 9
- 12
- 14
- 16
- 22
- 24
- H(mm)
- 0.6
- 0.65
- 0.8
- 0.9
- 1
- 1.3
- 1.5
- 1.7
- 1.8
- 2.6
- 2.7
- 3.1
- 3.2
- Est. shipping days
- All
- Within 4 working days

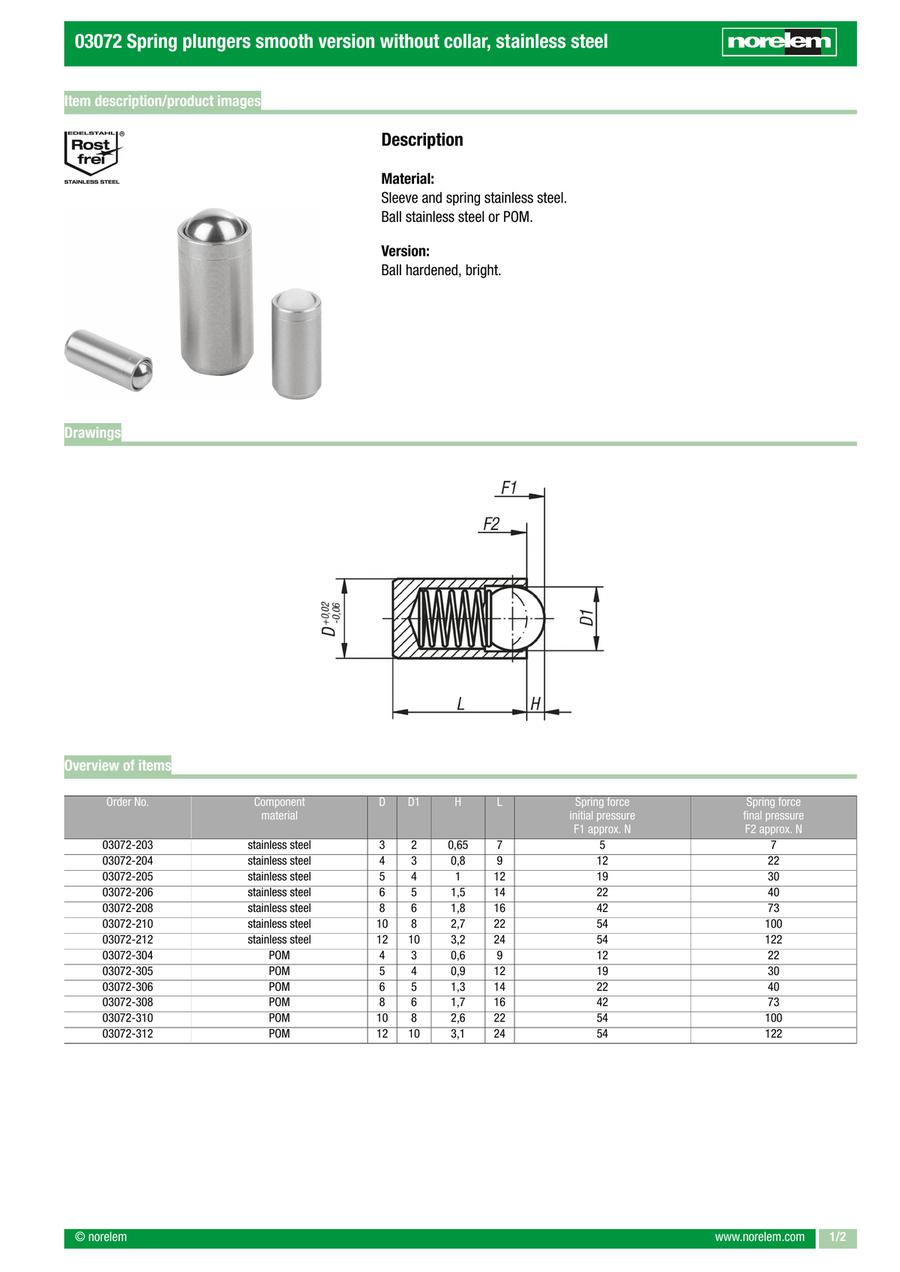

Spring plungers smooth version without collar, stainless steel (03072)
Part number:
possible part numbers found.Part number list
Number of items
| Part number |
|---|
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
1.84 € ( 2.19 € ) | 4 working days |
1.64 € ( 1.95 € ) | 4 working days |
1.79 € ( 2.13 € ) | 4 working days |
1.85 € ( 2.20 € ) | 4 working days |
2.17 € ( 2.58 € ) | 4 working days |
2.48 € ( 2.95 € ) | 4 working days |
3.06 € ( 3.64 € ) | 4 working days |
1.79 € ( 2.13 € ) | 4 working days |
1.97 € ( 2.34 € ) | 4 working days |
2.06 € ( 2.45 € ) | 4 working days |
2.39 € ( 2.84 € ) | 4 working days |
2.72 € ( 3.24 € ) | 4 working days |
3.39 € ( 4.03 € ) | 4 working days |
More Information
Basic information
· Quick indexing, positioning and fixating of components
· Application sectors: machine and plant construction, trade, domestic
· Universally applicable
· Simple assembly
· ball point hardened
