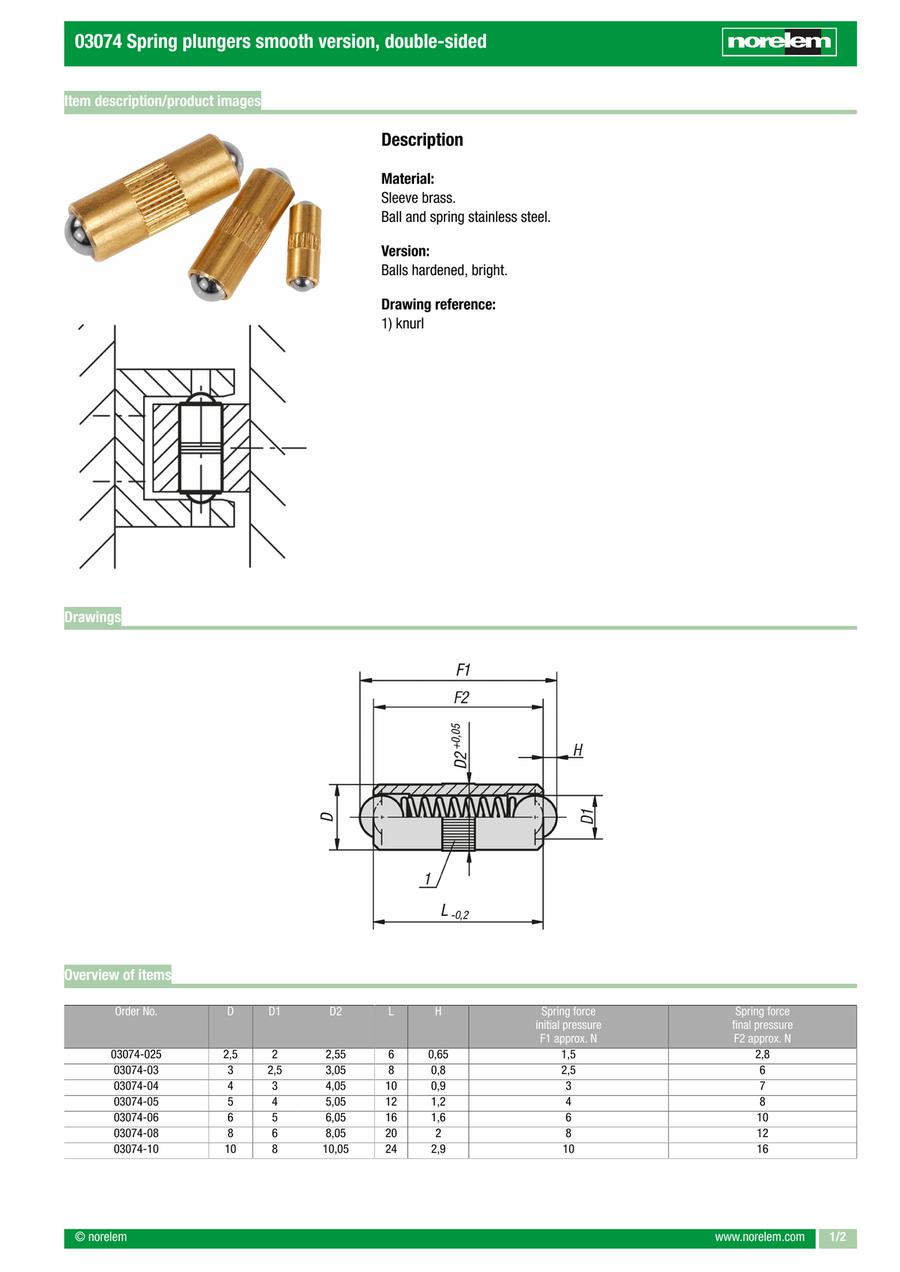

Spring plungers smooth version, double-sided (03074)
· Application sectors: machine and plant construction, trade, domestic
· Universally applicable
· ball point hardened
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 03074-03 |
| 03074-04 |
| 03074-05 |
| 03074-06 |
| 03074-08 |
| 03074-025 |
| 03074-10 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Initial Load (N) | Max. Load (N) | D=outside diameter (mm) | D1 (mm) | D2 (mm) | H (mm) | L=Length (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
2.72 € | 1 | 4 Days | 2.5 | 6 | 3 | 2.5 | 3.05 | 0.8 | 8 | ||
2.10 € | 1 | 4 Days | 3 | 7 | 4 | 3 | 4.05 | 0.9 | 10 | ||
2.18 € | 1 | 4 Days | 4 | 8 | 5 | 4 | 5.05 | 1.2 | 12 | ||
2.39 € | 1 | 4 Days | 6 | 10 | 6 | 5 | 6.05 | 1.6 | 16 | ||
2.62 € | 1 | 4 Days | 8 | 12 | 8 | 6 | 8.05 | 2 | 20 | ||
2.91 € | 1 | 4 Days | 1.5 | 2.8 | 2.5 | 2 | 2.55 | 0.65 | 6 | ||
3.46 € | 1 | 4 Days | 10 | 16 | 10 | 8 | 10.05 | 2.9 | 24 |
Loading...
Basic information
| Main material | brass | Component material | ball stainless steel | Version 1 | smooth version |
|---|---|---|---|---|---|
| Version 2 | double sided |
Configure
Basic Attributes
-
Initial Load(N)
-
D=outside diameter(mm)
-
D1(mm)
-
D2(mm)
-
H(mm)
-
L=Length(mm)
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
