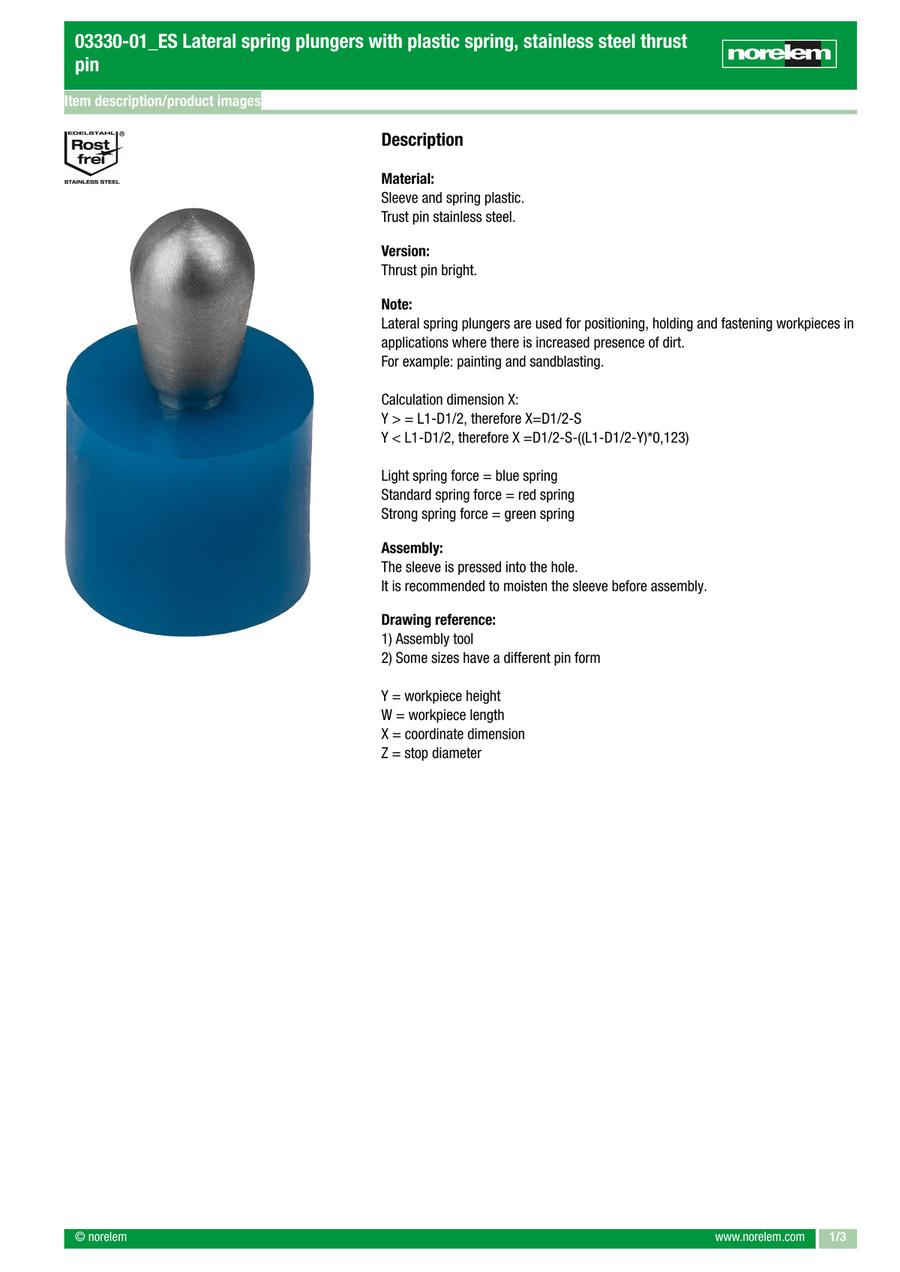

Lateral spring plungers with plastic spring, stainless steel thrust pin (03330-01)

Lateral spring plungers with plastic spring, stainless steel thrust pin (03330-01)

Part number:

Still undefined. 14 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    03330-01-110307
    03330-01-110409
    03330-01-110509
    03330-01-110609
    03330-01-210307
    03330-01-210409
    03330-01-210509
    03330-01-210609
    03330-01-210813
    03330-01-211016
    03330-01-310509
    03330-01-310609
    03330-01-310813
    03330-01-311016

    Main colour

    Version 1

    Version 2

    D=outside diameter

    (mm)

    D1=Outside diameter

    (mm)

    D2=Bore diameter 2

    (mm)

    L=Length

    (mm)

    L1= length

    (mm)

    F ca.

    (N)

    ±S

    (mm)

    Order No. assembly tool

    		Minimum order quantity
    Blue
    Light spring force
    Different pin form
    6
    3
    2.9
    7
    3.7
    10
    0.4
    K1733.03
    1 pieces
    Blue
    Light spring force
    -
    8
    4
    7.9
    9
    5.2
    15
    0.6
    K1733.04
    1 pieces
    Blue
    Light spring force
    -
    10
    5
    9.9
    9
    7.3
    30
    0.8
    K1733.05
    1 pieces
    Blue
    Light spring force
    -
    10
    6
    9.9
    9
    10.3
    20
    1
    K1733.05
    1 pieces
    Red
    Standard spring force
    Different pin form
    6
    3
    5.9
    7
    3.7
    20
    0.4
    K1733.03
    1 pieces
    Red
    Standard spring force
    -
    8
    4
    7.9
    9
    5.2
    30
    0.6
    K1733.04
    1 pieces
    Red
    Standard spring force
    -
    10
    5
    9.9
    9
    7.3
    60
    0.8
    K1733.05
    1 pieces
    Red
    Standard spring force
    -
    10
    6
    9.9
    9
    10.3
    30
    1
    K1733.05
    1 pieces
    Red
    Standard spring force
    -
    12
    8
    11.9
    13
    13.3
    50
    1.2
    K1733.08
    1 pieces
    Red
    Standard spring force
    -
    16
    10
    15.9
    16
    16.9
    80
    1.6
    K1733.10
    1 pieces
    Green
    Intensified spring force
    -
    10
    5
    9.9
    9
    7.3
    90
    0.8
    K1733.05
    1 pieces
    Green
    Intensified spring force
    -
    10
    6
    9.9
    9
    10.3
    60
    1
    K1733.05
    1 pieces
    Green
    Intensified spring force
    -
    12
    8
    11.9
    13
    13.2
    100
    1.2
    K1733.08
    1 pieces
    Green
    Intensified spring force
    -
    16
    10
    15.9
    16
    16.6
    160
    1.6
    K1733.10
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    6.84 €
    ( 8.14 € )
    4 working days
    7.13 €
    ( 8.48 € )
    4 working days
    7.85 €
    ( 9.34 € )
    4 working days
    8.46 €
    ( 10.07 € )
    4 working days
    6.84 €
    ( 8.14 € )
    4 working days
    7.13 €
    ( 8.48 € )
    4 working days
    7.85 €
    ( 9.34 € )
    4 working days
    8.46 €
    ( 10.07 € )
    4 working days
    9.19 €
    ( 10.94 € )
    4 working days
    9.67 €
    ( 11.51 € )
    4 working days
    7.85 €
    ( 9.34 € )
    4 working days
    8.46 €
    ( 10.07 € )
    4 working days
    9.19 €
    ( 10.94 € )
    4 working days
    9.67 €
    ( 11.51 € )
    4 working days
  • 1

    • More Information

    Basic information

    · Dirt resistant

    · Press-in

    · Various spring forces
