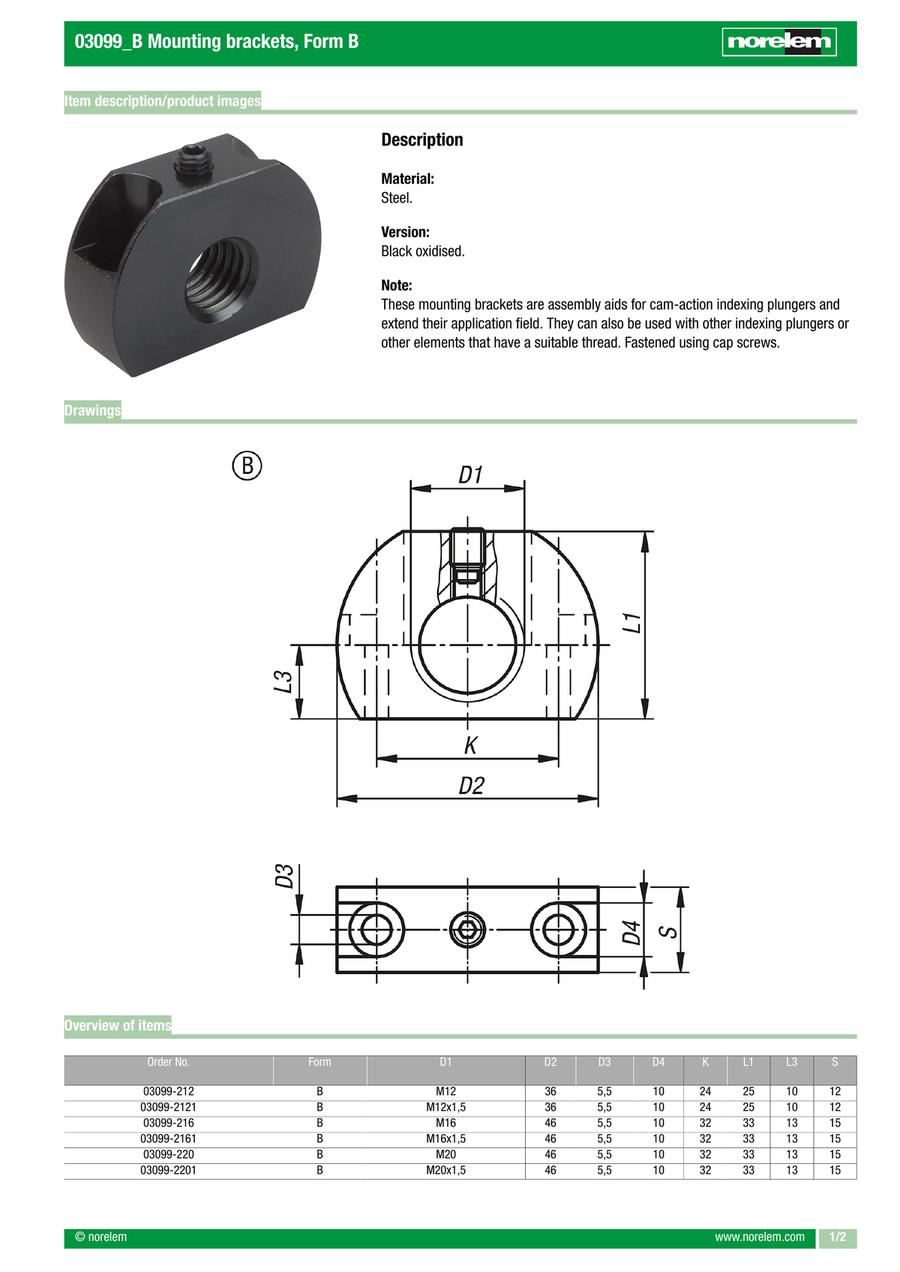

Mounting brackets, Form B (03099)

Mounting brackets, Form B (03099)

Part number:

Still undefined. 6 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    03099-212
    03099-2121
    03099-216
    03099-2161
    03099-220
    03099-2201

    D1=Thread

    D2

    (mm)

    K

    (mm)

    L1

    (mm)

    L3

    (mm)

    S

    (mm)

    		Minimum order quantity
    M12
    36
    24
    25
    10
    12
    1 pieces
    M12x1,5
    36
    24
    25
    10
    12
    1 pieces
    M16
    46
    32
    33
    13
    15
    1 pieces
    M16x1,5
    46
    32
    33
    13
    15
    1 pieces
    M20
    46
    32
    33
    13
    15
    1 pieces
    M20x1,5
    46
    32
    33
    13
    15
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    16.64 €
    ( 19.80 € )
    4 working days
    16.64 €
    ( 19.80 € )
    4 working days
    16.50 €
    ( 19.64 € )
    4 working days
    16.50 €
    ( 19.64 € )
    4 working days
    19.00 €
    ( 22.61 € )
    4 working days
    16.02 €
    ( 19.06 € )
    4 working days
  • 1

    • More Information

    Basic information

    · Mounting aid for cam action indexing plungers and indexing plungers
