Configure
- Hand Force(N)
- 100
- 160
- Retaining force F1(N)
- 600
- 1200
- Clamping force F3(N)
- 300
- 600
- Clamping force F4(N)
- 700
- 1000
- A(mm)
- 20.4
- 21.4
- A1(mm)
- 40
- 45
- A2(mm)
- 5.9
- 6.1
- A3(mm)
- 10.2
- 10.7
- B(mm)
- 22
- 27.6
- B1(mm)
- 36
- 42.4
- B2(mm)
- 11.4
- 14.7
- B3(mm)
- 7.4
- 8.7
- B4(mm)
- 8.2
- 9.7
- B5(mm)
- 2
- 3
- C(mm)
- 62.1
- 67.2
- D(mm)
- 5.2
- 6.7
- F2=Retaining force(N)
- 1200
- 2800
- H(mm)
- 74.8
- 79.9
- L=Length(mm)
- 143.5
- 173
- L1(mm)
- 54.9
- 68
- L2(mm)
- 35.6
- 39.1
- Est. shipping days
- All
- Within 4 working days

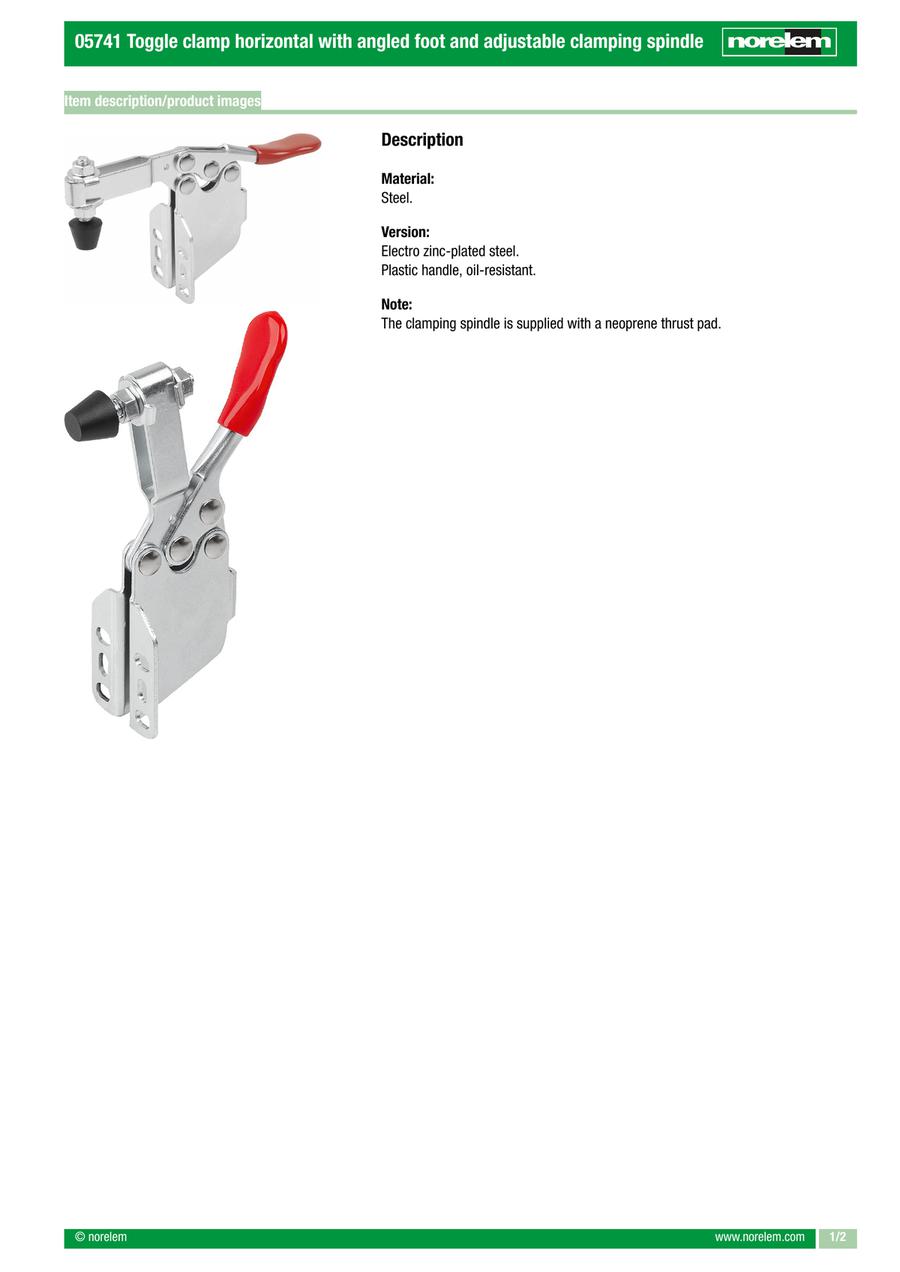

Toggle clamp horizontal with angled foot and adjustable clamping spindle (05741)
Part number:
possible part numbers found.Part number list
Number of items
| Part number |
|---|
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
20.88 € ( 24.85 € ) | 4 working days |
29.68 € ( 35.32 € ) | 4 working days |
More Information
Basic information
· Toggle clamps and power clamps are used in assembly and workholding fixtures
· Application sectors: machine construction, welding technology, metal processing, woodworking, plastics industry
· Self-locking prevents the clamping arm opening autonomously.
