Configure
- Hand Force(N)
- 50
- 100
- 150
- 250
- Body Material
- Surface finish body
- Retaining force F1(N)
- 250
- 1000
- 2000
- 2200
- Clamping force F3(N)
- 150
- 600
- 800
- 1100
- Clamping force F4(N)
- 350
- 1200
- 1600
- 3000
- A(mm)
- 15.9
- 25.4
- 27
- 41.3
- A1(mm)
- 23.8
- 37
- 38
- 57.1
- A3(mm)
- 11.1
- 20.8
- 25.4
- B(mm)
- 15.9
- 22
- 22.2
- 41.3
- B1(mm)
- 23.8
- 35
- 36
- 57.2
- B2(mm)
- 8
- 11.4
- 14.7
- 19
- B3(mm)
- 5
- 7.4
- 8.7
- 11
- B5(mm)
- 1.5
- 2
- 3
- 4
- C(mm)
- 7.7
- 25.1
- 34.9
- 44.4
- C1(mm)
- 6.8
- 6.9
- 12.7
- 19
- D(mm)
- 4.4
- 5.5
- 6.7
- 8.3
- F2=Retaining force(N)
- 500
- 2000
- 3200
- 5000
- H(mm)
- 17.3
- 37.8
- 47.6
- 63.4
- L=Length(mm)
- 79
- 143.5
- 173
- 295.6
- L1(mm)
- 20.7
- 56.9
- 71.6
- 108.3
- L2(mm)
- 13.5
- 35.7
- 39.1
- 63.6
- Est. shipping days
- All
- Within 4 working days

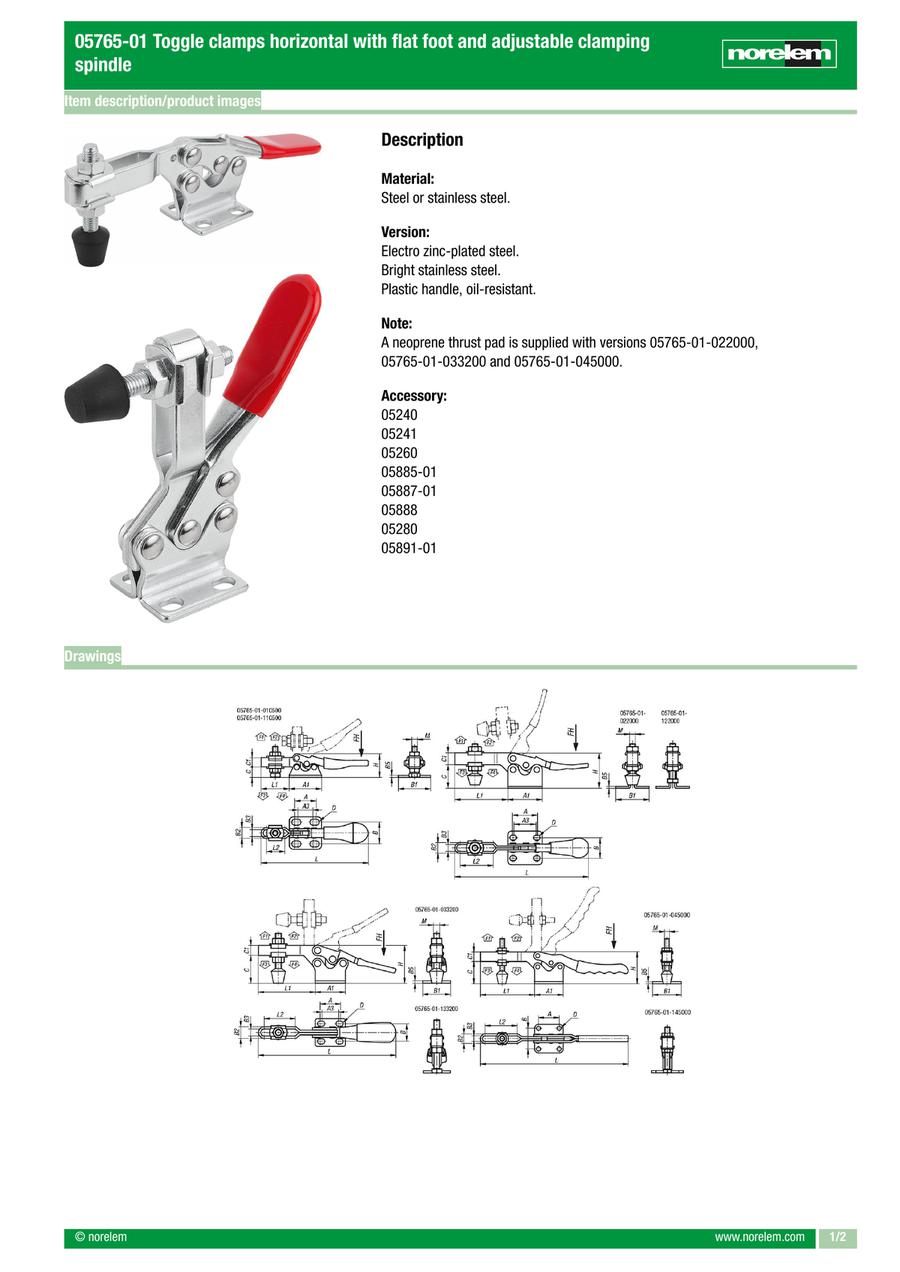

Toggle clamps horizontal with flat foot and adjustable clamping spindle (05765-01)
Part number:
possible part numbers found.Part number list
Number of items
| Part number |
|---|
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
13.97 € ( 16.62 € ) | 4 working days |
19.82 € ( 23.59 € ) | 4 working days |
28.19 € ( 33.55 € ) | 4 working days |
36.80 € ( 43.79 € ) | 4 working days |
22.26 € ( 26.49 € ) | 4 working days |
36.65 € ( 43.61 € ) | 4 working days |
47.71 € ( 56.77 € ) | 4 working days |
71.11 € ( 84.62 € ) | 4 working days |
