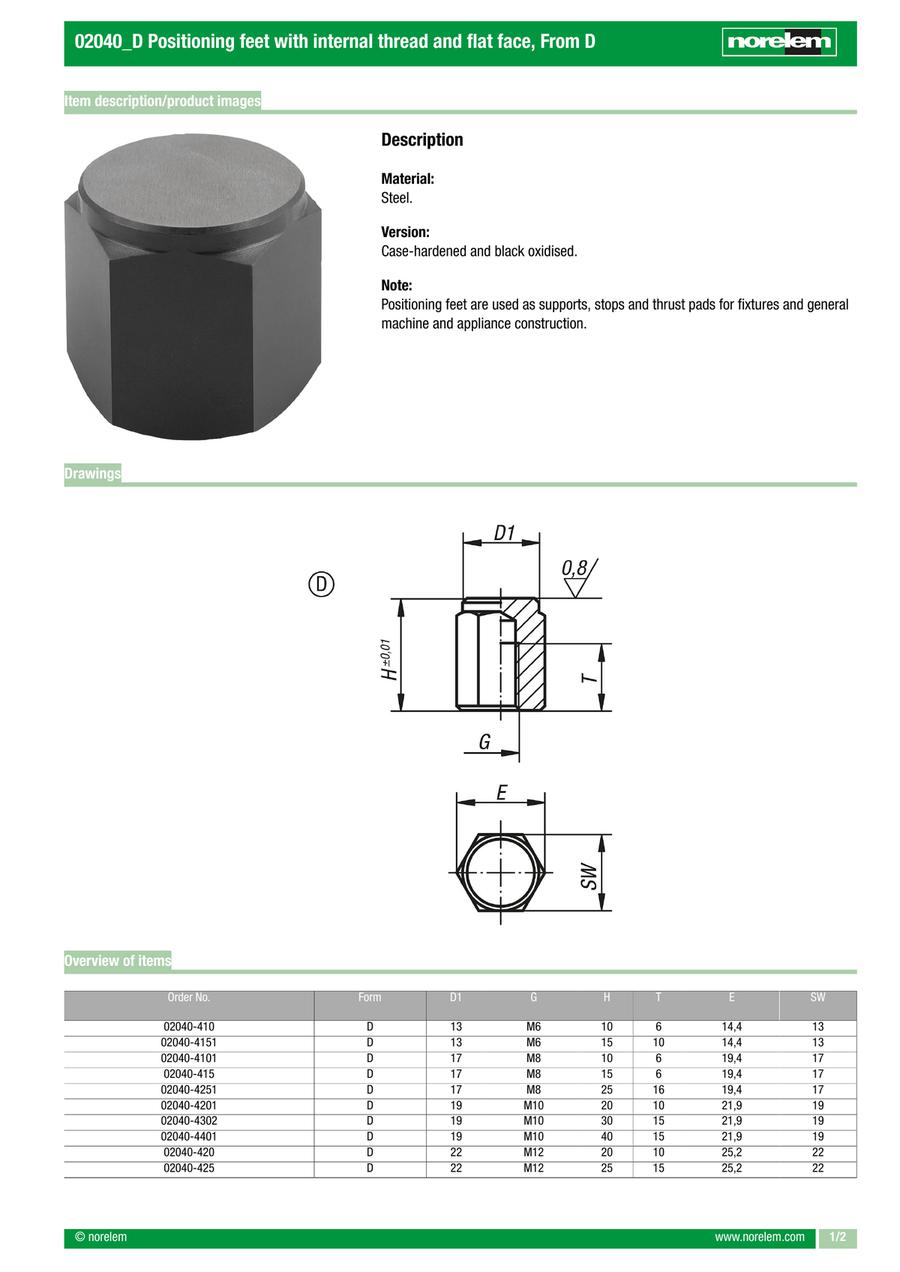

Positioning feet with internal thread and flat face, Form D (02040)
· Application sectors: machine, plant and instrument construction
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 02040-410 |
| 02040-4101 |
| 02040-415 |
| 02040-4151 |
| 02040-420 |
| 02040-4201 |
| 02040-425 |
| 02040-4251 |
| 02040-430 |
| 02040-4301 |
| 02040-4302 |
| 02040-440 |
| 02040-4401 |
| 02040-450 |
| 02040-4501 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | D1 (mm) | E (mm) | G=Thread | H=Height (mm) | SW=key width (mm) | T=thread depth (mm) | Weight in kg (ERP) (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
12.50 € | 1 | 4 Days | 13 | 14.4 | M6 | 10 | 13 | 6 | 0.0104 | ||
13.95 € | 1 | 4 Days | 17 | 19.4 | M8 | 10 | 17 | 6 | 0.0181 | ||
15.06 € | 1 | 4 Days | 17 | 19.4 | M8 | 15 | 17 | 6 | 0.0272 | ||
13.21 € | 1 | 4 Days | 13 | 14.4 | M6 | 15 | 13 | 10 | 0.0161 | ||
16.04 € | 1 | 4 Days | 22 | 25.2 | M12 | 20 | 22 | 10 | 0.0541 | ||
15.83 € | 1 | 4 Days | 19 | 21.1 | M10 | 20 | 19 | 10 | 0.0426 | ||
16.49 € | 1 | 4 Days | 22 | 25.2 | M12 | 25 | 22 | 15 | 0.0661 | ||
16.85 € | 1 | 4 Days | 17 | 19.4 | M8 | 25 | 17 | 16 | 0.0433 | ||
16.85 € | 1 | 4 Days | 22 | 25.2 | M12 | 30 | 22 | 20 | 0.0801 | ||
42.06 € | 1 | 4 Days | 30 | 33 | M16 | 30 | 30 | 20 | 0.1462 | ||
16.37 € | 1 | 4 Days | 19 | 21.9 | M10 | 30 | 19 | 15 | 0.0619 | ||
17.72 € | 1 | 4 Days | 22 | 25.2 | M12 | 40 | 22 | 25 | 0.1078 | ||
17.61 € | 1 | 4 Days | 19 | 21.1 | M10 | 40 | 19 | 15 | 0.0861 | ||
18.45 € | 1 | 4 Days | 22 | 25.2 | M12 | 50 | 22 | 25 | 0.1395 | ||
46.48 € | 1 | 4 Days | 30 | 33 | M16 | 50 | 30 | 25 | 0.2614 |
Loading...
Basic information
| Main material | Steel | Surface finish body | case-hardened and black oxidised | Material (mount surface / support surface) | Steel |
|---|---|---|---|---|---|
| Form | D | Kind of fastening | internal thread | Item | Positioning feet |
| Seat form | round |
Configure
Basic Attributes
-
D1(mm)
- 13
- 17
- 19
- 22
- 30
-
E(mm)
-
G=Thread
- M6
- M8
- M10
- M12
- M16
-
H=Height(mm)
-
SW=key width(mm)
-
T=thread depth(mm)
- 6
- 10
- 15
- 16
- 20
- 25
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
