NORELEM

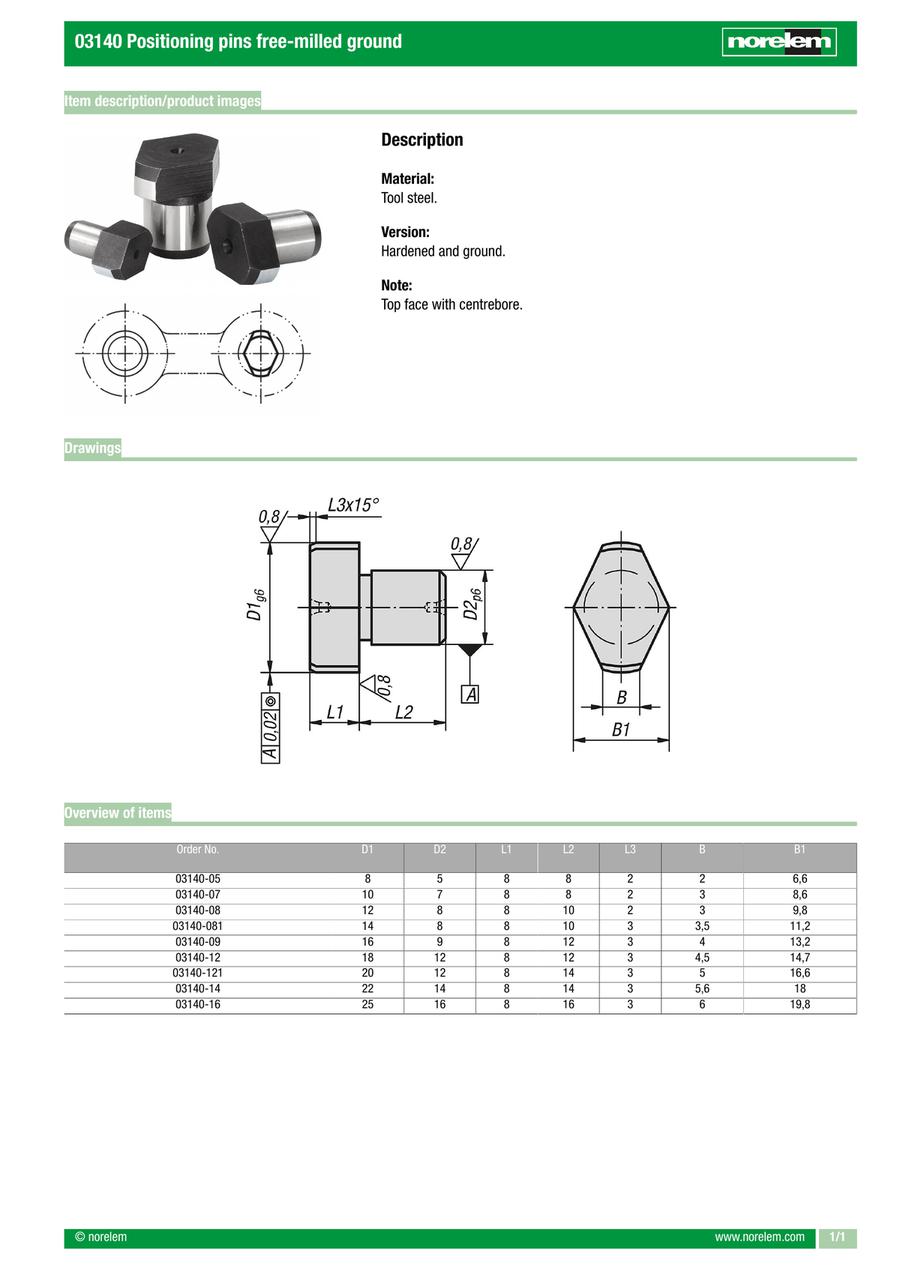

Positioning pins free-milled ground (03140)

Positioning pins free-milled ground (03140)

Part number:

Still undefined. 9 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    03140-05
    03140-07
    03140-08
    03140-09
    03140-081
    03140-12
    03140-14
    03140-16
    03140-121

    Tip O.D.

    (mm)

    B

    (mm)

    B1

    (mm)

    D2=Pin diameter

    (mm)

    L2

    (mm)

    L3

    (mm)

    		Minimum order quantity
    8
    2
    6.6
    5
    8
    2
    1 pieces
    10
    3
    8.6
    7
    8
    2
    1 pieces
    12
    3
    9.8
    8
    10
    2
    1 pieces
    16
    4
    13.2
    9
    12
    3
    1 pieces
    14
    3.5
    11.2
    8
    10
    3
    1 pieces
    18
    4.5
    14.7
    12
    12
    3
    1 pieces
    22
    5.6
    18
    14
    14
    3
    1 pieces
    25
    6
    19.8
    16
    16
    3
    1 pieces
    20
    5
    16.6
    12
    14
    3
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    9.85 €
    ( 11.72 € )
    4 working days
    10.92 €
    ( 12.99 € )
    4 working days
    11.36 €
    ( 13.52 € )
    4 working days
    12.65 €
    ( 15.05 € )
    4 working days
    11.84 €
    ( 14.09 € )
    4 working days
    14.01 €
    ( 16.67 € )
    4 working days
    17.08 €
    ( 20.33 € )
    4 working days
    17.69 €
    ( 21.05 € )
    4 working days
    15.21 €
    ( 18.10 € )
    4 working days
  • 1

    • More Information

    Basic information

    · Also suitable for use as stops and feet

    · High concentric accuracy

    · Toleranced dimension for exact positioning
