    KIPP

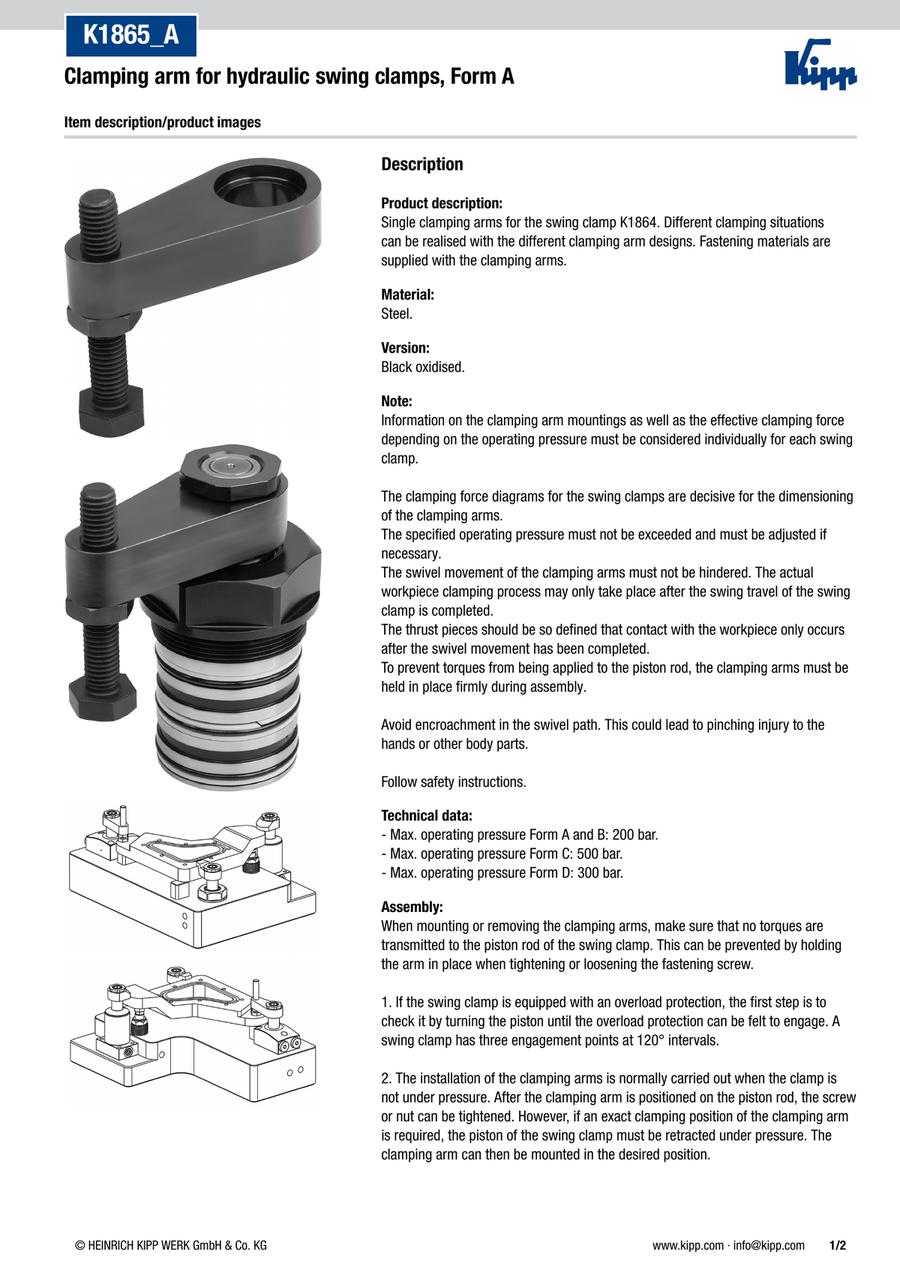

    Clamping arm for hydraulic swing clamps, Form A (K1865)

    Clamping arm for hydraulic swing clamps, Form A (K1865)

    Part number:

    Still undefined. 2 possible part numbers found.
    Quantity:

    Part number list

    Number of items
  • 1
    • Part number
    K1865.25502
    K1865.40752

    D

    (mm)

    D1

    (mm)

    D2

    (mm)

    G

    (mm)

    H

    (mm)

    H4

    (mm)

    H5

    (mm)

    L

    (mm)

    L1

    (mm)

    L2

    (mm)

    R

    (mm)

    R1

    (mm)

    for Piston diameter

    (mm)

    Weight

    (kg)

    		Minimum order quantity
    20
    16
    9
    M10
    16
    10
    64
    75
    50
    16
    16
    9
    25
    0.2000
    1 pieces
    32
    25
    15
    M16
    23
    15
    79
    115
    75
    25
    25
    15
    40
    0.7000
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    40.43 €
    ( 48.11 € )
    4 working days
    53.51 €
    ( 63.68 € )
    4 working days
  • 1

    • More Information

    Basic information

    Single clamping arms for the swing clamp K1864. Different clamping situations can be realised with the different clamping arm designs. Fastening materials are supplied with the clamping arms.
    Material:
    Steel.
    Version:
    Black oxidised.
