Clamp straps gooseneck DIN 6316 wide, Steel or Aluminium (K1951)

Configure

Main material
- Aluminium
- High carbon steel
A(mm)
- 10
- 12
- 15
- 20
- 25
- 30
- 35
- 40
- 50
B1(mm)
- 7
- 9
- 11
- 14
- 18
- 22
- 26
- 34
B2=Width(mm)
- 20
- 25
- 30
- 40
- 50
- 60
- 70
- 80
B3(mm)
- 10
- 12
- 15
- 20
- 25
- 30
- 35
- 40
C(mm)
- 8
- 9
- 12
- 16
- 20
- 24
- 28
- 40
E1(mm)
- 20
- 25
- 32
- 40
- 49
- 55
- 72
- 91
E2(mm)
- 20
- 25
- 32
- 40
- 50
- 55
- 60
- 70
- 80
- 100
H1(mm)
- 9
- 11
- 14
- 18
- 23
- 28
- 32
- 37
- 56
L=Length(mm)
- 60
- 80
- 100
- 125
- 160
- 200
- 250
- 315
R1(mm)
- 11
- 14
- 18
- 20
- 25
- 28
- 34
- 40
F(kN)
- 4.82
- 8.77
- 13.9
- 20.2
- 37.8
- 58.8
- 84.7
- 135
for Screw
- M6
- M8
- M10
- M12/M14
- M16/M18
- M20/M22
- M24
- M30/M32
H max.(mm)
- 20
- 24
- 30
- 40
- 46
- 60
- 70
- 80
- 100
E3(mm)
- 14
- 17
- 22
- 28
- 38
- 40
- 54
- 72
Weight(kg)
- 0.0320
- 0.0560
- 0.0838
- 0.1151
- 0.1644
- 0.2670
- 0.3098
- 0.4245
- 0.5350
- 0.6724
- 0.7714
- 0.9900
- 1.0430
- 1.1920
- 1.3460
- 1.6000
- 1.8940
- 1.9050
- 2.3960
- 3.1570
- 3.3100
- 4.1580
- 5.3600
- 9.0000
Type
CAD
- 2D
- 3D
Est. shipping days
- All
- Within 4 working days

Clamp straps gooseneck DIN 6316 wide, Steel or Aluminium (K1951)

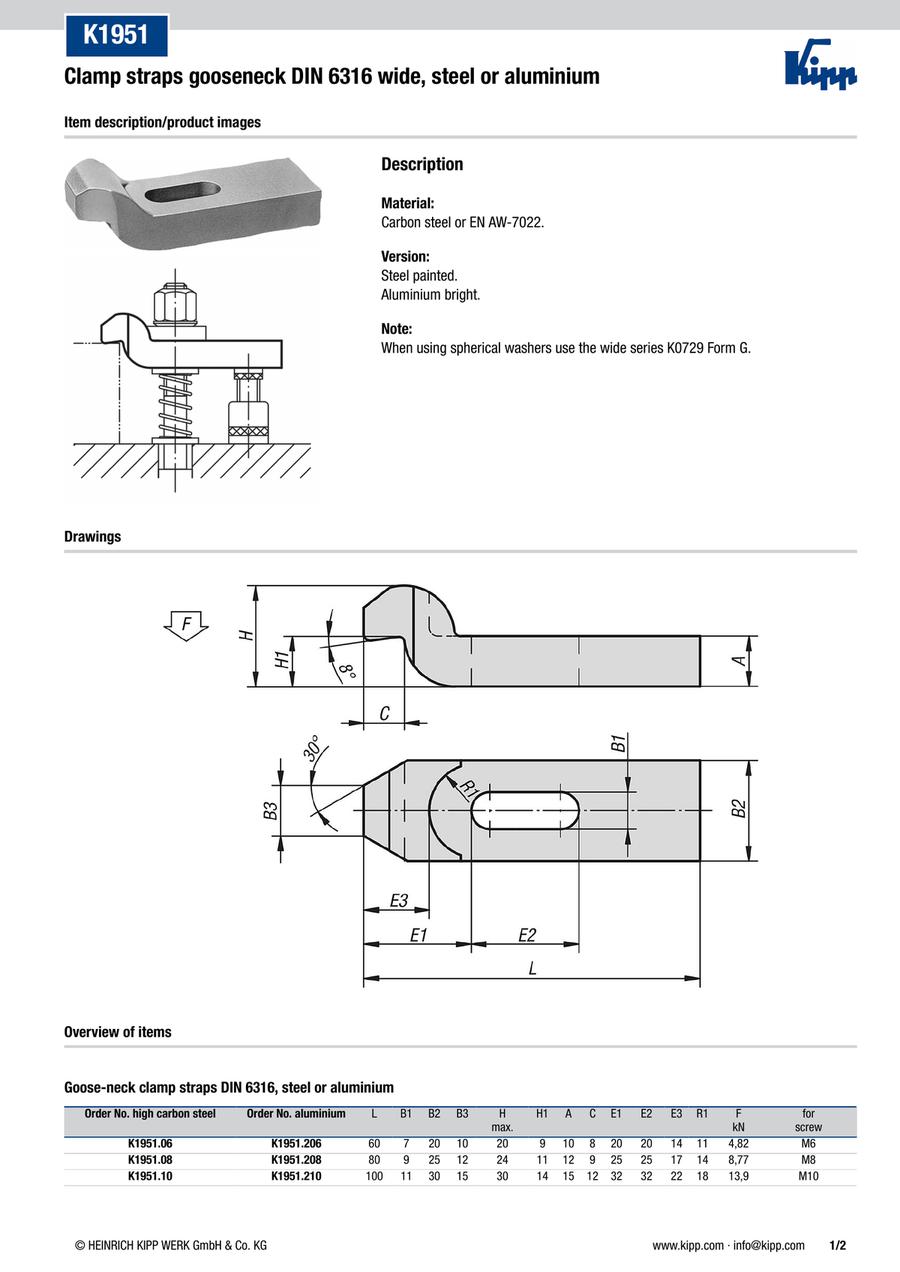

Catalog

Part number:

Still undefined. 24 possible part numbers found.

Part number list
More Information
Catalog

Part number list

Number of items

Part number

Main material

(mm)

B2=Width

(mm)

L=Length

(mm)

(kN)

for Screw

H max.

(mm)

Weight

(kg)

Minimum order quantity

High carbon steel	10	7	20	10	8	20	20	9	60	11	4.82	M6	20	14	0.0838	1 pieces
High carbon steel	12	9	25	12	9	25	25	11	80	14	8.77	M8	24	17	0.1644	1 pieces
High carbon steel	15	11	30	15	12	32	32	14	100	18	13.9	M10	30	22	0.3098	1 pieces
High carbon steel	20	14	40	20	16	40	40	18	125	20	20.2	M12/M14	40	28	0.6724	1 pieces
High carbon steel	25	18	50	25	20	49	40	23	125	25	37.8	M16/M18	46	38	1.0430	1 pieces
High carbon steel	30	22	60	30	24	55	55	28	160	28	58.8	M20/M22	60	40	1.9050	1 pieces
High carbon steel	35	26	70	35	28	72	60	32	200	34	84.7	M24	70	54	3.3100	1 pieces
High carbon steel	40	34	80	40	40	91	80	37	250	40	135	M30/M32	80	72	5.3600	1 pieces
High carbon steel	25	18	50	25	20	49	50	23	160	25	37.8	M16/M18	46	38	1.3460	1 pieces
High carbon steel	30	22	60	30	24	55	70	28	200	28	58.8	M20/M22	60	40	2.3960	1 pieces
Aluminium	10	7	20	10	8	20	20	9	60	11	4.82	M6	20	14	0.0320	1 pieces
Aluminium	12	9	25	12	9	25	25	11	80	14	8.77	M8	24	17	0.0560	1 pieces
Aluminium	15	11	30	15	12	32	32	14	100	18	13.9	M10	30	22	0.1151	1 pieces
Aluminium	20	14	40	20	16	40	40	18	125	20	20.2	M12/M14	40	28	0.2670	1 pieces
Aluminium	25	18	50	25	20	49	40	23	125	25	37.8	M16/M18	46	38	0.4245	1 pieces
Aluminium	25	18	50	25	20	49	50	23	160	25	37.8	M16/M18	46	38	0.5350	1 pieces
Aluminium	30	22	60	30	24	55	55	28	160	28	58.8	M20/M22	60	40	0.7714	1 pieces
Aluminium	30	22	60	30	24	55	70	28	200	28	58.8	M20/M22	60	40	0.9900	1 pieces
Aluminium	35	26	70	35	28	72	60	32	200	34	84.7	M24	70	54	1.1920	1 pieces
Aluminium	35	26	70	35	28	72	80	32	250	34	84.7	M24	70	54	1.6000	1 pieces
Aluminium	40	34	80	40	40	91	80	37	250	40	135	M30/M32	80	72	1.8940	1 pieces
Aluminium	50	34	80	40	40	91	100	56	315	40	135	M30/M32	100	72	3.1570	1 pieces
High carbon steel	35	26	70	35	28	72	80	32	250	34	84.7	M24	70	54	4.1580	1 pieces
High carbon steel	50	34	80	40	40	91	100	56	315	40	135	M30/M32	100	72	9.0000	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

11.76 € ( 13.99 € )	4 working days
14.44 € ( 17.18 € )	4 working days
15.11 € ( 17.98 € )	4 working days
17.30 € ( 20.59 € )	4 working days
22.24 € ( 26.47 € )	4 working days
40.61 € ( 48.33 € )	4 working days
64.04 € ( 76.21 € )	4 working days
154.71 € ( 184.10 € )	4 working days
27.37 € ( 32.57 € )	4 working days
46.24 € ( 55.03 € )	4 working days
26.55 € ( 31.59 € )	4 working days
30.05 € ( 35.76 € )	4 working days
35.60 € ( 42.36 € )	4 working days
46.56 € ( 55.41 € )	4 working days
55.03 € ( 65.49 € )	4 working days
66.36 € ( 78.97 € )	4 working days
110.04 € ( 130.95 € )	4 working days
135.77 € ( 161.57 € )	4 working days
174.41 € ( 207.55 € )	4 working days
201.46 € ( 239.74 € )	4 working days
277.15 € ( 329.81 € )	4 working days
323.71 € ( 385.21 € )	4 working days
80.80 € ( 96.15 € )	4 working days
199.38 € ( 237.26 € )	4 working days

More Information

Basic information

Basic information

· Flexible application

· Application sectors: machine construction, toolmaking, fixture construction

· For clamping any workpiece and component
