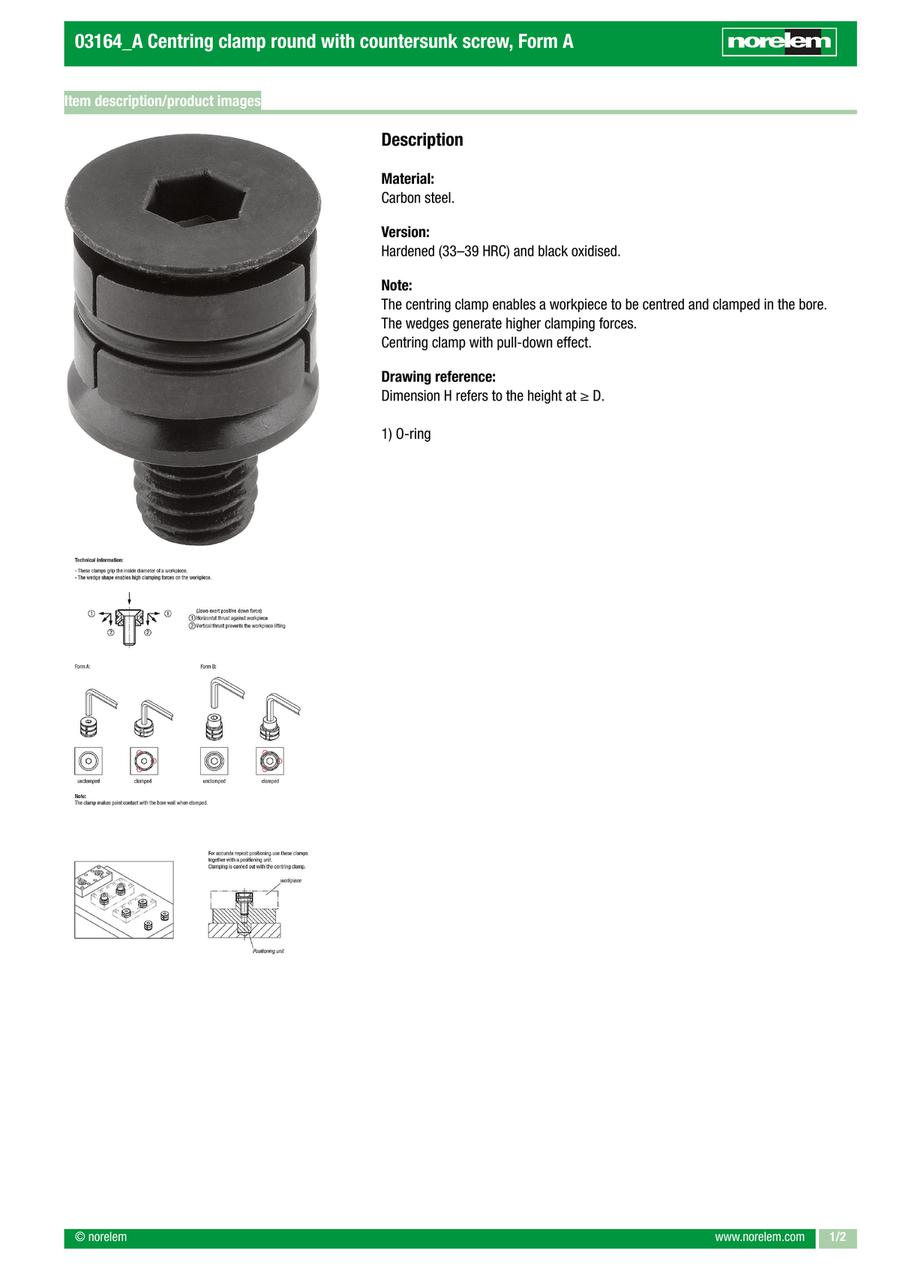

Centring clamp round with countersunk screw, Form A (03164)
· With positive down force
· For clamping low-profile workpieces
· Specifically for small components
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 03164-10804 |
| 03164-11005 |
| 03164-11206 |
| 03164-11608 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | D=Diameter max. (mm) | D=Diameter min. (mm) | D=thread | H=Height (mm) | H1 (mm) | L (mm) | SW (mm) | Tightening torque (Nm) | Clamping force max. (kN) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
29.50 € | 1 | 4 Days | 10.3 | 8 | M4x12 | 5.5 | 0.9 | 7.3 | 2.5 | 2.1 | 0.9 | ||
29.50 € | 1 | 4 Days | 12.3 | 10 | M5X15 | 6.4 | 1.1 | 9.1 | 3 | 4.3 | 1.5 | ||
34.44 € | 1 | 4 Days | 16.3 | 12 | M6X18 | 8.6 | 1.3 | 11.2 | 4 | 7.3 | 2.1 | ||
37.70 € | 1 | 4 Days | 22 | 16 | M8X25 | 11.5 | 1.6 | 16.2 | 5 | 18 | 4 |
Loading...
Basic information
| Main material | steel | Component material | steel | Surface finish body | hardened and black oxid finish |
|---|---|---|---|---|---|
| Surface finish component | hardened and black oxid finish | Form | A | Item | Centring Clamp |
| Version 1 | round |
Configure
Basic Attributes
-
D=Diameter max.(mm)
-
D=Diameter min.(mm)
-
D=thread
-
H=Height(mm)
- 5.5
- 6.4
- 8.6
- 11.5
-
H1(mm)
-
L(mm)
-
SW(mm)
-
Tightening torque(Nm)
- 2.1
- 4.3
- 7.3
- 18
-
Clamping force max.(kN)
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
