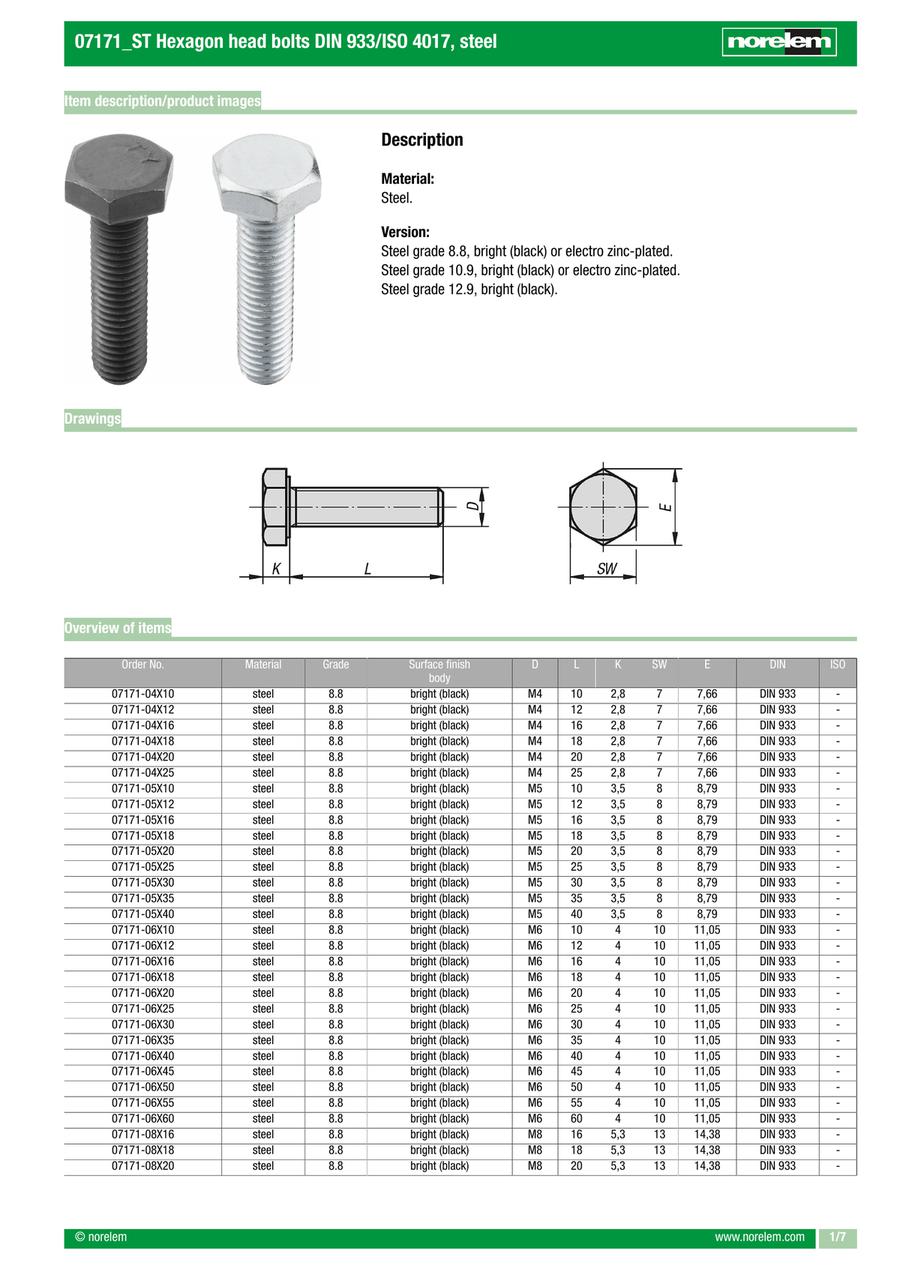

Hexagon head bolts DIN 933/ISO 4017, steel (07171)

Configure

D=thread (M)
- 4
- 5
- 6
- 8
- 10
- 12
- 14
- 16
- 20
Length L (mm)
- 10
- 12
- 16
- 18
- 20
- 25
- 30
- 35
- 40
- 45
- 50
- 55
- 60
- 70
- 80
- 90
- 100
- 110
- 120
Main colour
- Black
Surface finish body
- Galvanised
SW=key width(mm)
- 7
- 8
- 10
- 13
- 17
- 19
- 22
- 24
- 30
E(mm)
- 7.66
- 8.79
- 11.05
- 14.38
- 18.9
- 21.1
- 24.49
- 26.75
- 33.53
K(mm)
- 2.8
- 3.5
- 4
- 5.3
- 6.4
- 7.5
- 8.8
- 10
- 12.5
Grade
- 8.8
- 10.9
- 12.9
B=Thread length(mm)
- 10
- 12
- 16
- 18
- 20
- 25
- 30
- 35
- 40
- 45
- 50
- 55
- 60
- 70
- 80
- 90
- 100
- 110
- 120
Est. shipping days
- All
- Within 4 working days

Hexagon head bolts DIN 933/ISO 4017, steel (07171)

Catalog

Part number:

Still undefined. 409 possible part numbers found.

Part number list
More Information
Catalog

Part number list

Number of items

...

Part number

D=thread (M)

Length L (mm)

Main colour

Surface finish body

SW=key width

(mm)

Grade

B=Thread length

(mm)

Minimum order quantity

4	10	Black	-	7	7.66	2.8	8.8	10	1 pieces
4	12	Black	-	7	7.66	2.8	8.8	12	1 pieces
4	16	Black	-	7	7.66	2.8	8.8	16	1 pieces
4	18	Black	-	7	7.66	2.8	8.8	18	1 pieces
4	20	Black	-	7	7.66	2.8	8.8	20	1 pieces
4	25	Black	-	7	7.66	2.8	8.8	25	1 pieces
5	10	Black	-	8	8.79	3.5	8.8	10	1 pieces
5	12	Black	-	8	8.79	3.5	8.8	12	1 pieces
5	16	Black	-	8	8.79	3.5	8.8	16	1 pieces
5	18	Black	-	8	8.79	3.5	8.8	18	1 pieces
5	20	Black	-	8	8.79	3.5	8.8	20	1 pieces
5	25	Black	-	8	8.79	3.5	8.8	25	1 pieces
5	30	Black	-	8	8.79	3.5	8.8	30	1 pieces
5	35	Black	-	8	8.79	3.5	8.8	35	1 pieces
5	40	Black	-	8	8.79	3.5	8.8	40	1 pieces
6	10	Black	-	10	11.05	4	8.8	10	1 pieces
6	12	Black	-	10	11.05	4	8.8	12	1 pieces
6	16	Black	-	10	11.05	4	8.8	16	1 pieces
6	18	Black	-	10	11.05	4	8.8	18	1 pieces
6	20	Black	-	10	11.05	4	8.8	20	1 pieces
6	25	Black	-	10	11.05	4	8.8	25	1 pieces
6	30	Black	-	10	11.05	4	8.8	30	1 pieces
6	35	Black	-	10	11.05	4	8.8	35	1 pieces
6	40	Black	-	10	11.05	4	8.8	40	1 pieces
6	45	Black	-	10	11.05	4	8.8	45	1 pieces
6	50	Black	-	10	11.05	4	8.8	50	1 pieces
6	55	Black	-	10	11.05	4	8.8	55	1 pieces
6	60	Black	-	10	11.05	4	8.8	60	1 pieces
8	16	Black	-	13	14.38	5.3	8.8	16	1 pieces
8	18	Black	-	13	14.38	5.3	8.8	18	1 pieces
8	20	Black	-	13	14.38	5.3	8.8	20	1 pieces
8	25	Black	-	13	14.38	5.3	8.8	25	1 pieces
8	30	Black	-	13	14.38	5.3	8.8	30	1 pieces
8	35	Black	-	13	14.38	5.3	8.8	35	1 pieces
8	40	Black	-	13	14.38	5.3	8.8	40	1 pieces
8	45	Black	-	13	14.38	5.3	8.8	45	1 pieces
8	50	Black	-	13	14.38	5.3	8.8	50	1 pieces
8	60	Black	-	13	14.38	5.3	8.8	60	1 pieces
8	70	Black	-	13	14.38	5.3	8.8	70	1 pieces
8	80	Black	-	13	14.38	5.3	8.8	80	1 pieces
8	90	Black	-	13	14.38	5.3	8.8	90	1 pieces
8	100	Black	-	13	14.38	5.3	8.8	100	1 pieces
10	16	Black	-	17	18.9	6.4	8.8	16	1 pieces
10	18	Black	-	17	18.9	6.4	8.8	18	1 pieces
10	20	Black	-	17	18.9	6.4	8.8	20	1 pieces
10	25	Black	-	17	18.9	6.4	8.8	25	1 pieces
10	30	Black	-	17	18.9	6.4	8.8	30	1 pieces
10	35	Black	-	17	18.9	6.4	8.8	35	1 pieces
10	40	Black	-	17	18.9	6.4	8.8	40	1 pieces
10	45	Black	-	17	18.9	6.4	8.8	45	1 pieces
10	50	Black	-	17	18.9	6.4	8.8	50	1 pieces
10	60	Black	-	17	18.9	6.4	8.8	60	1 pieces
10	70	Black	-	17	18.9	6.4	8.8	70	1 pieces
10	80	Black	-	17	18.9	6.4	8.8	80	1 pieces
10	90	Black	-	17	18.9	6.4	8.8	90	1 pieces
10	100	Black	-	17	18.9	6.4	8.8	100	1 pieces
12	20	Black	-	19	21.1	7.5	8.8	20	1 pieces
12	25	Black	-	19	21.1	7.5	8.8	25	1 pieces
12	30	Black	-	19	21.1	7.5	8.8	30	1 pieces
12	35	Black	-	19	21.1	7.5	8.8	35	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

0.15 € ( 0.18 € )	4 working days
0.15 € ( 0.18 € )	4 working days
0.15 € ( 0.18 € )	4 working days
0.15 € ( 0.18 € )	4 working days
0.15 € ( 0.18 € )	4 working days
0.15 € ( 0.18 € )	4 working days
0.15 € ( 0.18 € )	4 working days
0.15 € ( 0.18 € )	4 working days
0.15 € ( 0.18 € )	4 working days
0.15 € ( 0.18 € )	4 working days
0.15 € ( 0.18 € )	4 working days
0.15 € ( 0.18 € )	4 working days
0.15 € ( 0.18 € )	4 working days
0.15 € ( 0.18 € )	4 working days
0.15 € ( 0.18 € )	4 working days
0.15 € ( 0.18 € )	4 working days
0.15 € ( 0.18 € )	4 working days
0.15 € ( 0.18 € )	4 working days
0.15 € ( 0.18 € )	4 working days
0.15 € ( 0.18 € )	4 working days
0.15 € ( 0.18 € )	4 working days
0.15 € ( 0.18 € )	4 working days
0.15 € ( 0.18 € )	4 working days
0.18 € ( 0.21 € )	4 working days
0.18 € ( 0.21 € )	4 working days
0.18 € ( 0.21 € )	4 working days
0.18 € ( 0.21 € )	4 working days
0.25 € ( 0.30 € )	4 working days
0.15 € ( 0.18 € )	4 working days
0.15 € ( 0.18 € )	4 working days
0.25 € ( 0.30 € )	4 working days
0.28 € ( 0.33 € )	4 working days
0.33 € ( 0.39 € )	4 working days
0.36 € ( 0.43 € )	4 working days
0.43 € ( 0.51 € )	4 working days
0.46 € ( 0.55 € )	4 working days
0.48 € ( 0.57 € )	4 working days
0.52 € ( 0.62 € )	4 working days
0.55 € ( 0.65 € )	4 working days
0.58 € ( 0.69 € )	4 working days
0.65 € ( 0.77 € )	4 working days
0.68 € ( 0.81 € )	4 working days
0.18 € ( 0.21 € )	4 working days
0.18 € ( 0.21 € )	4 working days
0.25 € ( 0.30 € )	4 working days
0.25 € ( 0.30 € )	4 working days
0.25 € ( 0.30 € )	4 working days
0.33 € ( 0.39 € )	4 working days
0.33 € ( 0.39 € )	4 working days
0.36 € ( 0.43 € )	4 working days
0.36 € ( 0.43 € )	4 working days
0.39 € ( 0.46 € )	4 working days
0.39 € ( 0.46 € )	4 working days
0.43 € ( 0.51 € )	4 working days
0.55 € ( 0.65 € )	4 working days
0.68 € ( 0.81 € )	4 working days
0.36 € ( 0.43 € )	4 working days
0.43 € ( 0.51 € )	4 working days
0.55 € ( 0.65 € )	4 working days
0.59 € ( 0.70 € )	4 working days
