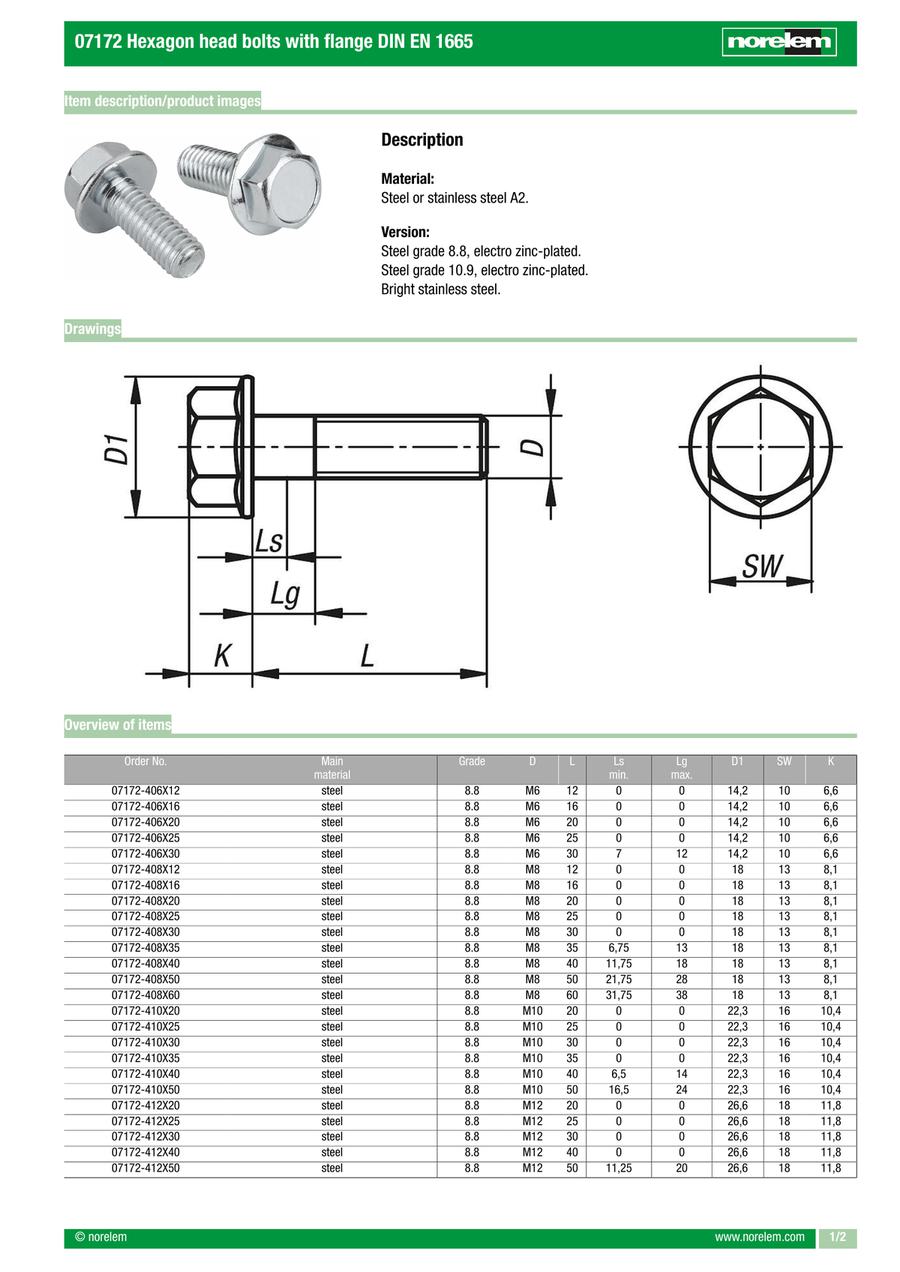

Hexagon head bolts with flange DIN EN 1665 (07172)

Configure

D=thread (M)
- 6
- 8
- 10
- 12
- 16
Length L (mm)
- 12
- 16
- 20
- 25
- 30
- 35
- 40
- 45
- 50
- 60
- 70
Material
- Steel
- Stainless Steel
Surface finish body
- Bright
- Galvanised
D1(mm)
- 14.2
- 18
- 22.3
- 26.6
- 35
SW=key width(mm)
- 10
- 13
- 16
- 18
- 24
K(mm)
- 6.6
- 8.1
- 10.4
- 11.8
- 15.4
Grade
- 8.8
- 10.9
B=Thread length(mm)
- 18
- 22
- 26
- 30
- 38
Est. shipping days
- All
- Within 4 working days

Hexagon head bolts with flange DIN EN 1665 (07172)

Catalog

Part number:

Still undefined. 74 possible part numbers found.

Part number list
More Information
Catalog

Part number list

Number of items

Part number

D=thread (M)

Length L (mm)

Material

Surface finish body

(mm)

SW=key width

(mm)

Grade

B=Thread length

(mm)

Minimum order quantity

6	12	Stainless Steel	Bright	14.2	10	6.6	-	18	1 pieces
6	16	Stainless Steel	Bright	14.2	10	6.6	-	18	1 pieces
6	20	Stainless Steel	Bright	14.2	10	6.6	-	18	1 pieces
6	25	Stainless Steel	Bright	14.2	10	6.6	-	18	1 pieces
6	30	Stainless Steel	Bright	14.2	10	6.6	-	18	1 pieces
8	16	Stainless Steel	Bright	18	13	8.1	-	22	1 pieces
8	20	Stainless Steel	Bright	18	13	8.1	-	22	1 pieces
8	25	Stainless Steel	Bright	18	13	8.1	-	22	1 pieces
8	30	Stainless Steel	Bright	18	13	8.1	-	22	1 pieces
8	35	Stainless Steel	Bright	18	13	8.1	-	22	1 pieces
8	40	Stainless Steel	Bright	18	13	8.1	-	22	1 pieces
8	50	Stainless Steel	Bright	18	13	8.1	-	22	1 pieces
10	20	Stainless Steel	Bright	22.3	16	10.4	-	26	1 pieces
10	25	Stainless Steel	Bright	22.3	16	10.4	-	26	1 pieces
10	30	Stainless Steel	Bright	22.3	16	10.4	-	26	1 pieces
10	35	Stainless Steel	Bright	22.3	16	10.4	-	26	1 pieces
10	40	Stainless Steel	Bright	22.3	16	10.4	-	26	1 pieces
10	50	Stainless Steel	Bright	22.3	16	10.4	-	26	1 pieces
10	60	Stainless Steel	Bright	22.3	16	10.4	-	26	1 pieces
6	12	Steel	Galvanised	14.2	10	6.6	8.8	18	1 pieces
6	16	Steel	Galvanised	14.2	10	6.6	8.8	18	1 pieces
6	20	Steel	Galvanised	14.2	10	6.6	8.8	18	1 pieces
6	25	Steel	Galvanised	14.2	10	6.6	8.8	18	1 pieces
6	30	Steel	Galvanised	14.2	10	6.6	8.8	18	1 pieces
8	12	Steel	Galvanised	18	13	8.1	8.8	22	1 pieces
8	16	Steel	Galvanised	18	13	8.1	8.8	22	1 pieces
8	20	Steel	Galvanised	18	13	8.1	8.8	22	1 pieces
8	25	Steel	Galvanised	18	13	8.1	8.8	22	1 pieces
8	30	Steel	Galvanised	18	13	8.1	8.8	22	1 pieces
8	35	Steel	Galvanised	18	13	8.1	8.8	22	1 pieces
8	40	Steel	Galvanised	18	13	8.1	8.8	22	1 pieces
8	50	Steel	Galvanised	18	13	8.1	8.8	22	1 pieces
8	60	Steel	Galvanised	18	13	8.1	8.8	22	1 pieces
10	20	Steel	Galvanised	22.3	16	10.4	8.8	26	1 pieces
10	25	Steel	Galvanised	22.3	16	10.4	8.8	26	1 pieces
10	30	Steel	Galvanised	22.3	16	10.4	8.8	26	1 pieces
10	35	Steel	Galvanised	22.3	16	10.4	8.8	26	1 pieces
10	40	Steel	Galvanised	22.3	16	10.4	8.8	26	1 pieces
10	50	Steel	Galvanised	22.3	16	10.4	8.8	26	1 pieces
12	20	Steel	Galvanised	26.6	18	11.8	8.8	30	1 pieces
12	25	Steel	Galvanised	26.6	18	11.8	8.8	30	1 pieces
12	30	Steel	Galvanised	26.6	18	11.8	8.8	30	1 pieces
12	40	Steel	Galvanised	26.6	18	11.8	8.8	30	1 pieces
12	50	Steel	Galvanised	26.6	18	11.8	8.8	30	1 pieces
16	30	Steel	Galvanised	35	24	15.4	8.8	38	1 pieces
16	35	Steel	Galvanised	35	24	15.4	8.8	38	1 pieces
16	40	Steel	Galvanised	35	24	15.4	8.8	38	1 pieces
16	45	Steel	Galvanised	35	24	15.4	8.8	38	1 pieces
16	50	Steel	Galvanised	35	24	15.4	8.8	38	1 pieces
16	70	Steel	Galvanised	35	24	15.4	8.8	38	1 pieces
6	12	Steel	Galvanised	14.2	10	6.6	10.9	18	1 pieces
6	16	Steel	Galvanised	14.2	10	6.6	10.9	18	1 pieces
6	20	Steel	Galvanised	14.2	10	6.6	10.9	18	1 pieces
6	25	Steel	Galvanised	14.2	10	6.6	10.9	18	1 pieces
6	30	Steel	Galvanised	14.2	10	6.6	10.9	18	1 pieces
8	12	Steel	Galvanised	18	13	8.1	10.9	22	1 pieces
8	16	Steel	Galvanised	18	13	8.1	10.9	22	1 pieces
8	20	Steel	Galvanised	18	13	8.1	10.9	22	1 pieces
8	25	Steel	Galvanised	18	13	8.1	10.9	22	1 pieces
8	30	Steel	Galvanised	18	13	8.1	10.9	22	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

0.68 € ( 0.81 € )	4 working days
0.54 € ( 0.64 € )	4 working days
0.54 € ( 0.64 € )	4 working days
0.54 € ( 0.64 € )	4 working days
0.65 € ( 0.77 € )	4 working days
0.72 € ( 0.86 € )	4 working days
0.72 € ( 0.86 € )	4 working days
0.72 € ( 0.86 € )	4 working days
0.73 € ( 0.87 € )	4 working days
0.76 € ( 0.90 € )	4 working days
0.83 € ( 0.99 € )	4 working days
0.94 € ( 1.12 € )	4 working days
1.01 € ( 1.20 € )	4 working days
1.31 € ( 1.56 € )	4 working days
1.39 € ( 1.65 € )	4 working days
1.50 € ( 1.78 € )	4 working days
1.61 € ( 1.92 € )	4 working days
1.68 € ( 2.00 € )	4 working days
1.77 € ( 2.11 € )	4 working days
0.54 € ( 0.64 € )	4 working days
0.40 € ( 0.48 € )	4 working days
0.40 € ( 0.48 € )	4 working days
0.40 € ( 0.48 € )	4 working days
0.46 € ( 0.55 € )	4 working days
0.47 € ( 0.56 € )	4 working days
0.51 € ( 0.61 € )	4 working days
0.51 € ( 0.61 € )	4 working days
0.51 € ( 0.61 € )	4 working days
0.51 € ( 0.61 € )	4 working days
0.54 € ( 0.64 € )	4 working days
0.59 € ( 0.70 € )	4 working days
0.68 € ( 0.81 € )	4 working days
0.80 € ( 0.95 € )	4 working days
0.87 € ( 1.04 € )	4 working days
0.95 € ( 1.13 € )	4 working days
1.01 € ( 1.20 € )	4 working days
1.20 € ( 1.43 € )	4 working days
1.20 € ( 1.43 € )	4 working days
1.20 € ( 1.43 € )	4 working days
1.23 € ( 1.46 € )	4 working days
1.27 € ( 1.51 € )	4 working days
1.32 € ( 1.57 € )	4 working days
1.50 € ( 1.78 € )	4 working days
3.55 € ( 4.22 € )	4 working days
2.43 € ( 2.89 € )	4 working days
2.62 € ( 3.12 € )	4 working days
2.84 € ( 3.38 € )	4 working days
2.97 € ( 3.53 € )	4 working days
3.02 € ( 3.59 € )	4 working days
4.26 € ( 5.07 € )	4 working days
0.68 € ( 0.81 € )	4 working days
0.54 € ( 0.64 € )	4 working days
0.54 € ( 0.64 € )	4 working days
0.54 € ( 0.64 € )	4 working days
0.65 € ( 0.77 € )	4 working days
0.66 € ( 0.79 € )	4 working days
0.72 € ( 0.86 € )	4 working days
0.72 € ( 0.86 € )	4 working days
0.72 € ( 0.86 € )	4 working days
0.73 € ( 0.87 € )	4 working days
