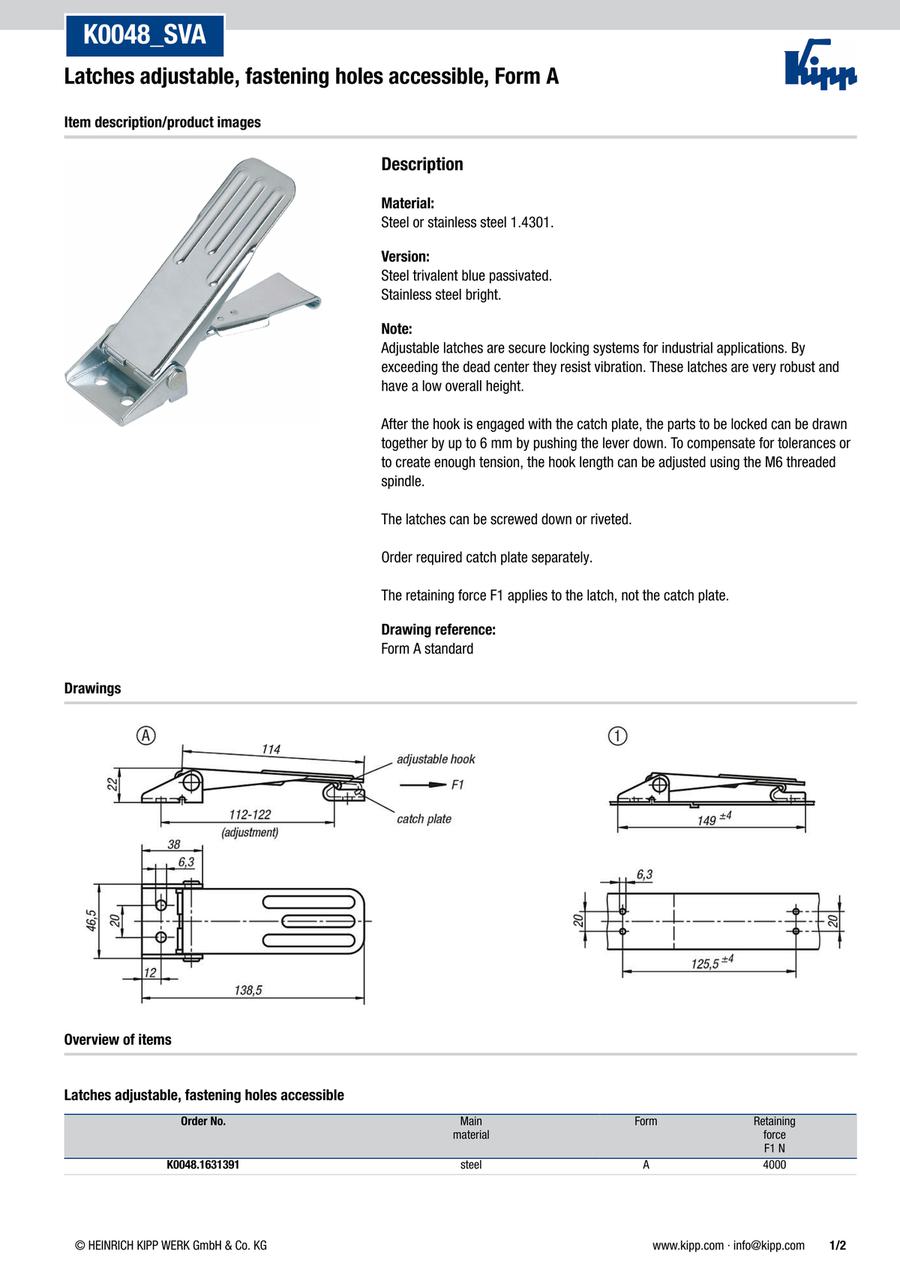

Latches adjustable, fastening holes accessible, Form A (K0048)
· Simple locking mechanism for covers, claddings and containers
· Application sectors: machine and plant construction, container construction
· Vibration-proof through exceeding dead centre point
· Adjustable hook clamps
· Low construction height
· Application sectors: machine and plant construction, container construction
· Vibration-proof through exceeding dead centre point
· Adjustable hook clamps
· Low construction height
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| K0048.1631391 |
| K0048.1631392 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Main material | Surface finish body | Steel code | Weight (kg) | PL Edelstahl | |
|---|---|---|---|---|---|---|---|---|---|
17.64 € | 1 | 4 Days | steel | galvanised and passivated | - | 0.1849 | false | ||
49.70 € | 1 | 4 Days | stainless steel | bright | 1.4301 | 0.1801 | true |
Loading...
Basic information
| Form | A | Version 1 | with swing bail, adjustable | Version 2 | fastening holes visible |
|---|---|---|---|---|---|
| Item | Latch | Retaining force F1(N) | 4000 | Product type | Standard |
| RoHS | true |
Configure
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
