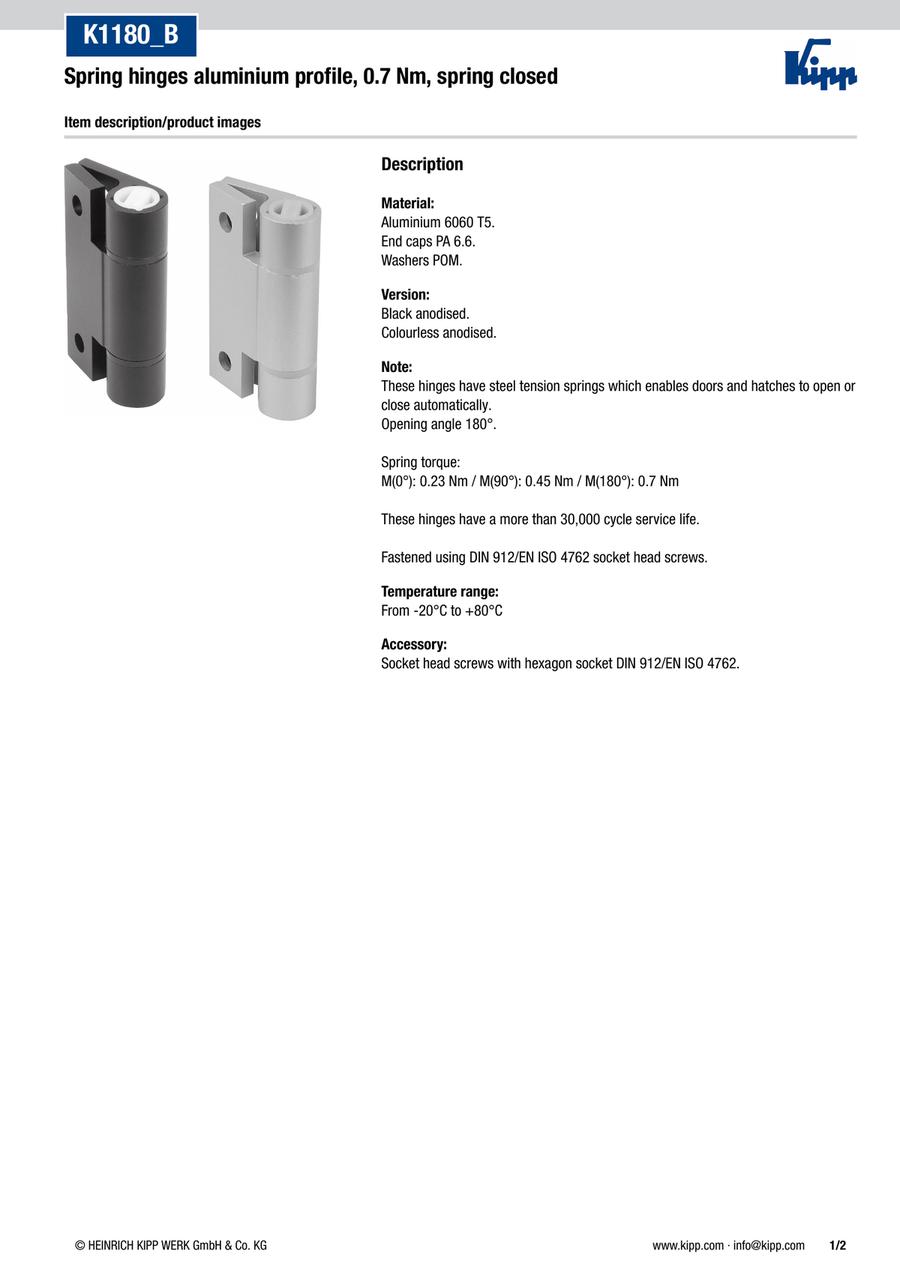

Spring hinges Aluminium profile, 0.7 Nm, spring closed (K1180)
· Connect two fixed components flexibly to each other
· Application sectors: machine construction, furniture construction, doors, hatches, hoods
· Self-closing
· DIN 912 cap screw included
· Temperature range -20° C to +80 °C
· Application sectors: machine construction, furniture construction, doors, hatches, hoods
· Self-closing
· DIN 912 cap screw included
· Temperature range -20° C to +80 °C
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| K1180.55671 |
| K1180.556711 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Main colour | Weight (kg) | PL Edelstahl | |
|---|---|---|---|---|---|---|---|
20.71 € | 1 | 4 Days | colourless | 0.0650 | false | ||
20.71 € | 1 | 4 Days | black | 0.0631 | - |
Loading...
Basic information
| B=Width(mm) | 67 | Main material | Aluminium | Surface finish body | anodized |
|---|---|---|---|---|---|
| A=Length(mm) | 55 | A1(mm) | 38 | B1(mm) | 48 |
| D(mm) | 6.3 | D1(mm) | 18 | Kind of fastening | fastening holes |
| S(mm) | 4.5 | Version 1 | spring closed | Item | Spring Hinge |
| F1(N) | 5000 | F2(N) | 4200 | Product type | Spring Hinge |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
