Configure
  • B=Width(mm)
  • A=Length(mm)
  • B2(mm)
  • B3(mm)
  • D1(mm)
  • D2(mm)
  • H(mm)
  • H1(mm)
  • A1=Hole spacing left(mm)
  • A2=Hole spacing right(mm)
  • A3=Wing length left(mm)
  • A4=Wing length right(mm)
  • Weight(kg)
  • Type
    • CAD
    • Est. shipping days
      • All
      • Within 4 working days

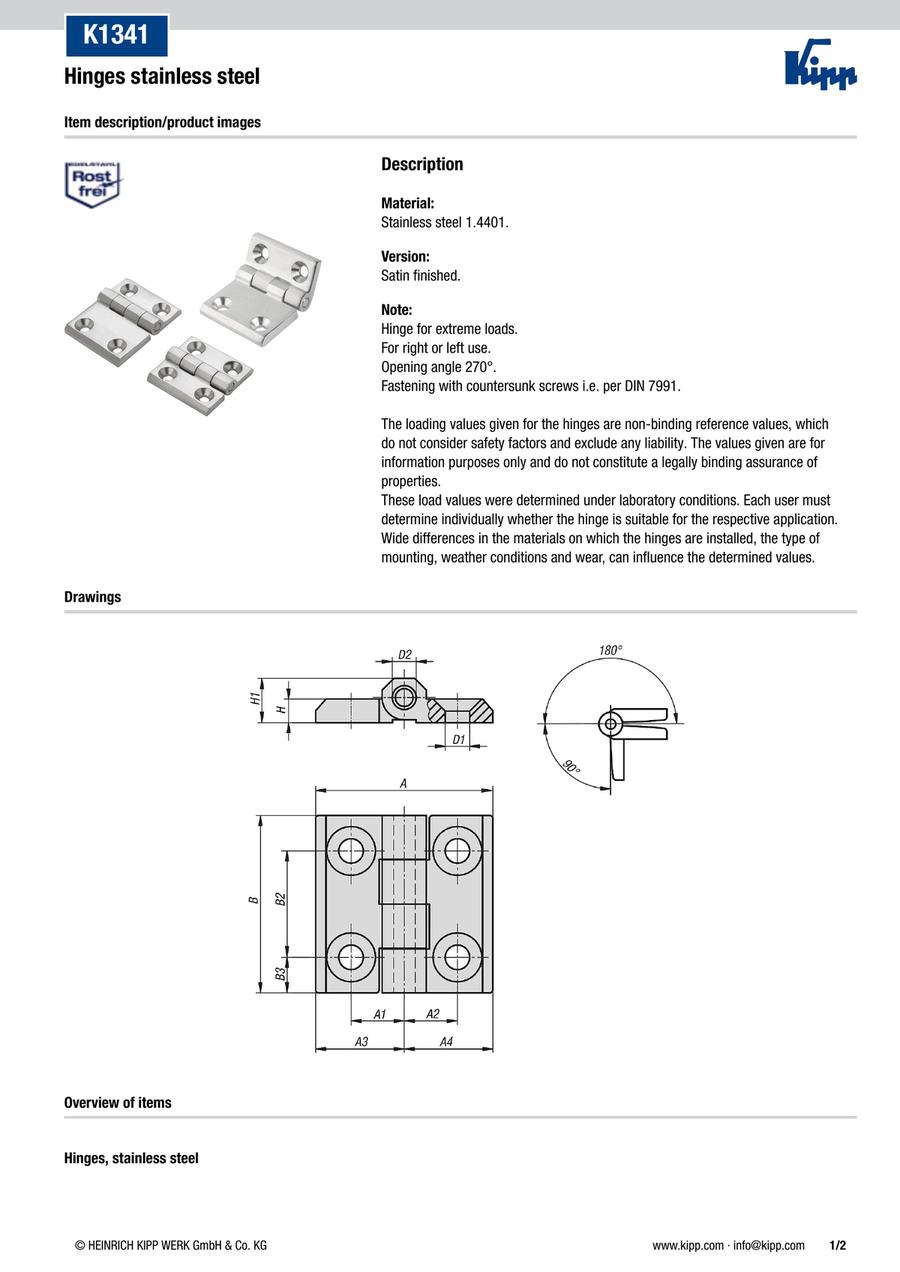

    Hinges Stainless Steel (K1341)

    Part number:

    Still undefined. 5 possible part numbers found.
    Quantity:

    Part number list

    Number of items

    Working Load

    (N)

    B=Width

    (mm)

    A=Length

    (mm)

    B2

    (mm)

    B3

    (mm)

    D1

    (mm)

    D2

    (mm)

    H

    (mm)

    H1

    (mm)

    A1=Hole spacing left

    (mm)

    A2=Hole spacing right

    (mm)

    A3=Wing length left

    (mm)

    A4=Wing length right

    (mm)

    Weight

    (kg)

    Minimum order quantity
    2500
    40
    40
    25
    7.5
    5.2
    4
    5
    9
    12.5
    12.5
    20
    20
    0.0586
    1 pieces
    5000
    50
    50
    30
    10
    6.2
    6
    6
    11.5
    15
    15
    25
    25
    0.1121
    1 pieces
    5000
    50
    63
    30
    10
    6.5
    6
    6
    11.5
    28
    15
    38
    25
    0.1262
    1 pieces
    5000
    50
    76
    30
    10
    6.5
    6
    6
    11.5
    28
    28
    38
    38
    0.1456
    1 pieces
    8000
    60
    60
    36
    12
    8.3
    8
    8
    15
    18
    18
    30
    30
    0.2096
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    18.27 €
    ( 21.74 € )
    4 working days
    20.23 €
    ( 24.07 € )
    4 working days
    22.09 €
    ( 26.29 € )
    4 working days
    22.54 €
    ( 26.82 € )
    4 working days
    21.68 €
    ( 25.80 € )
    4 working days

    More Information

    Basic information

    · Connect two fixed components flexibly to each other

    · Application sectors: machine construction, furniture construction, doors, hatches, hoods

    · Stainless steel 1.4401

    · Version: satin finish

    · Suitable for extreme loads
