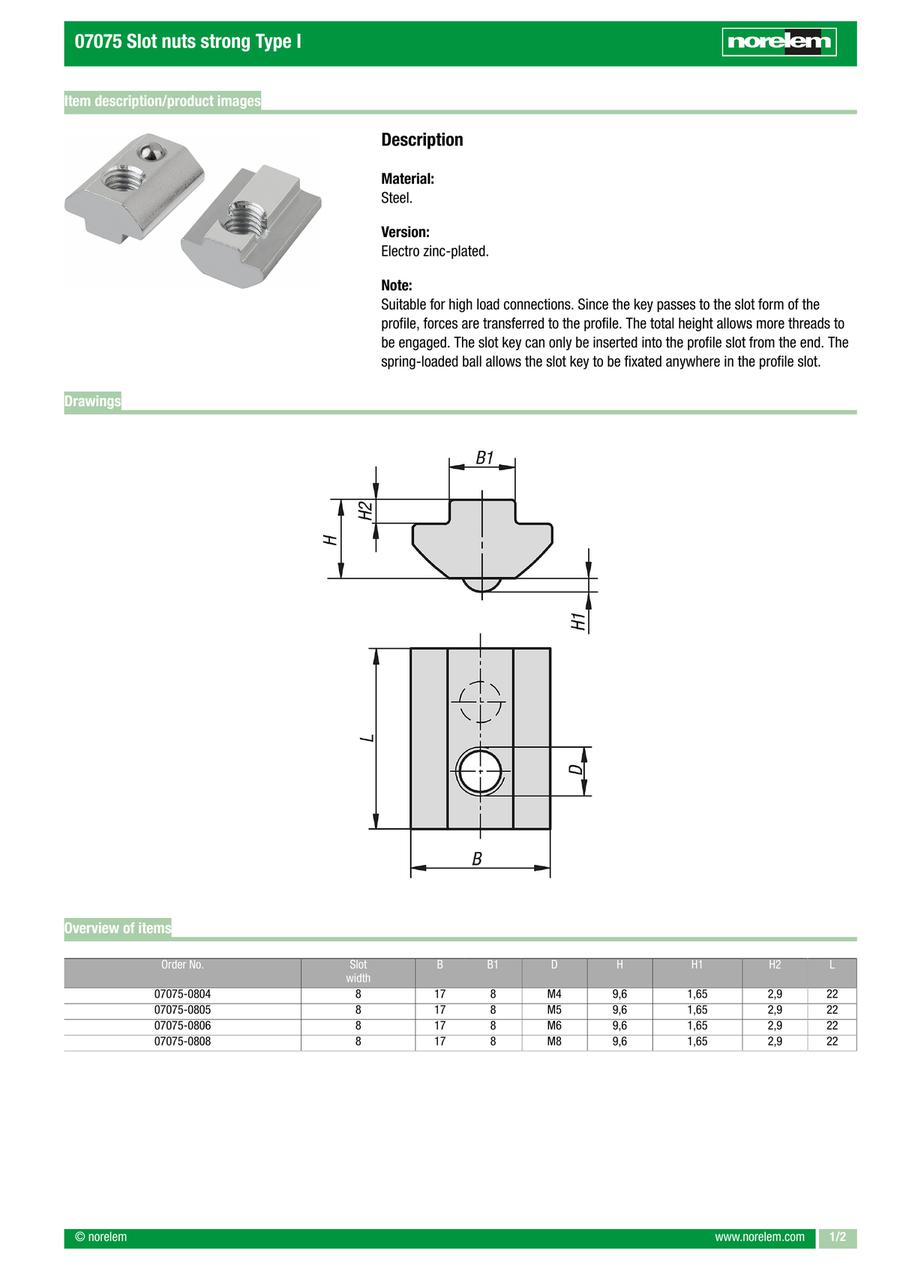

Slot nuts strong Type I (07075)
· For high-strength connections
· Spring-loaded ball allows fixation anywhere in the profile slot
· The high overall height allows more threads to be engaged
· Spring-loaded ball allows fixation anywhere in the profile slot
· The high overall height allows more threads to be engaged
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 07075-0804 |
| 07075-0805 |
| 07075-0806 |
| 07075-0808 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | D=thread (mm) | |
|---|---|---|---|---|---|
1.31 € | 1 | 4 Days | M4 | ||
1.31 € | 1 | 4 Days | M5 | ||
1.31 € | 1 | 4 Days | M6 | ||
1.31 € | 1 | 4 Days | M8 |
Loading...
Basic information
| Function | With Ball Spring | Material | Steel | Surface finish body | Galvanised |
|---|---|---|---|---|---|
| Slot width(mm) | 8 | B=Width(mm) | 17 | B1(mm) | 8 |
| H=Height(mm) | 9.6 | H1(mm) | 1.65 | H2(mm) | 2.9 |
| L=Length(mm) | 22 |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
