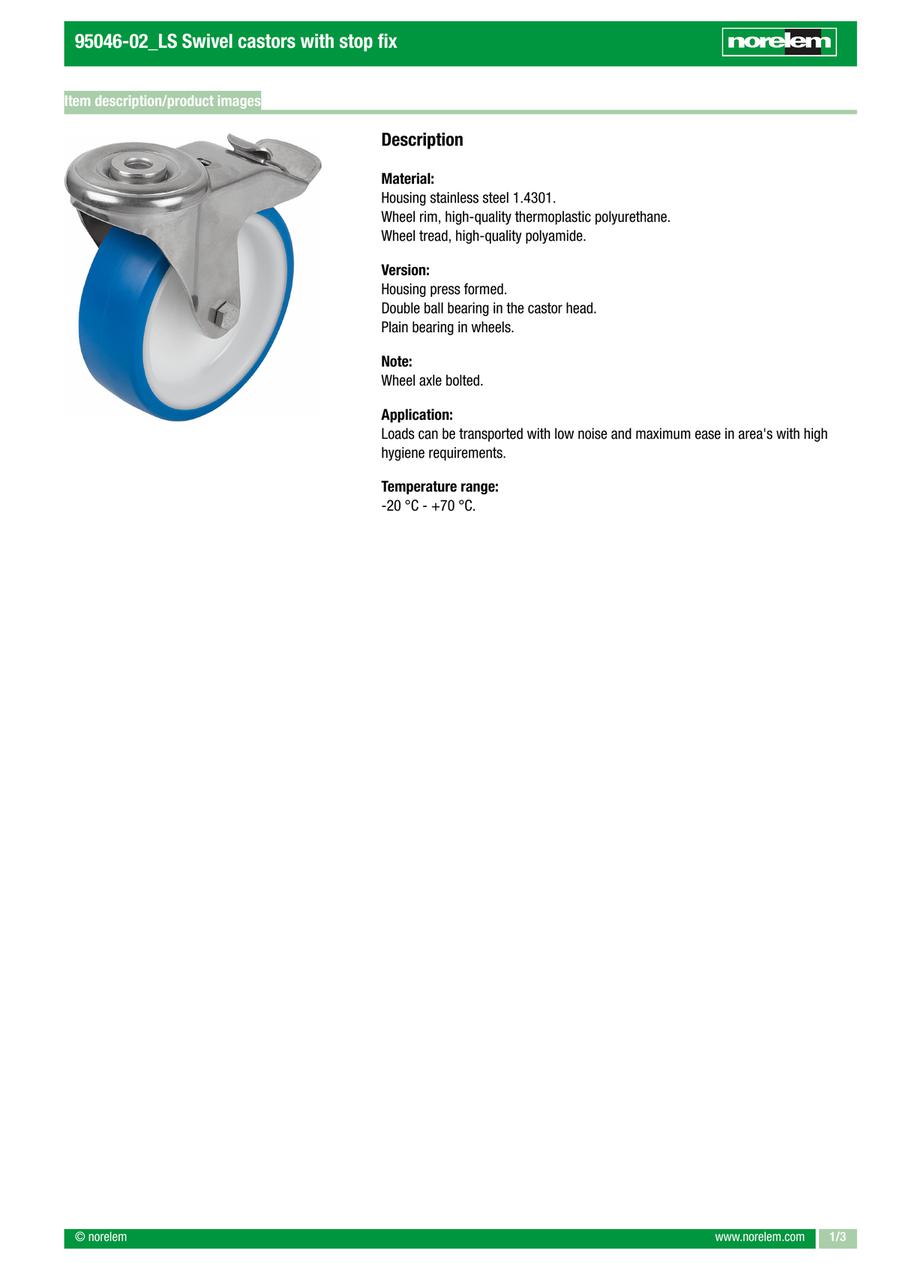

Swivel Castors with stop fix (95046)
· Optically detectable
· Noise dampening
· High operational comfort.
· Low roll and pivot resistance.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 95046-02-211000352 |
| 95046-02-211250402 |
| 95046-02-211600452 |
| 95046-02-212000502 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Mounting Height H (mm) | Wheel Dia. D (mm) | Wheel Width B (mm) | D2 (mm) | A (mm) | R (mm) | Permissible load (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
173.59 € | 1 | 4 Days | 125 | 100 | 35 | 70 | 36 | 86 | 150 | ||
201.07 € | 1 | 4 Days | 150 | 125 | 40 | 70 | 40 | 102.5 | 150 | ||
356.40 € | 1 | 4 Days | 195 | 160 | 45 | 88 | 54 | 134 | 300 | ||
419.02 € | 1 | 4 Days | 235 | 200 | 50 | 88 | 54 | 154 | 300 |
Loading...
Basic information
| Main material | Stainless steel | Steel code | 1.4301 | Component material | Thermoplastic |
|---|---|---|---|---|---|
| Wheel bearing | plain bearing | Version 2 | for hygienic area | D1(mm) | 13 |
Configure
Basic Attributes
-
Mounting Height H(mm)
-
Wheel Dia. D(mm)
-
Wheel Width B(mm)
-
D2(mm)
- 70
- 88
-
A(mm)
-
R(mm)
-
Permissible load(kg)
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
