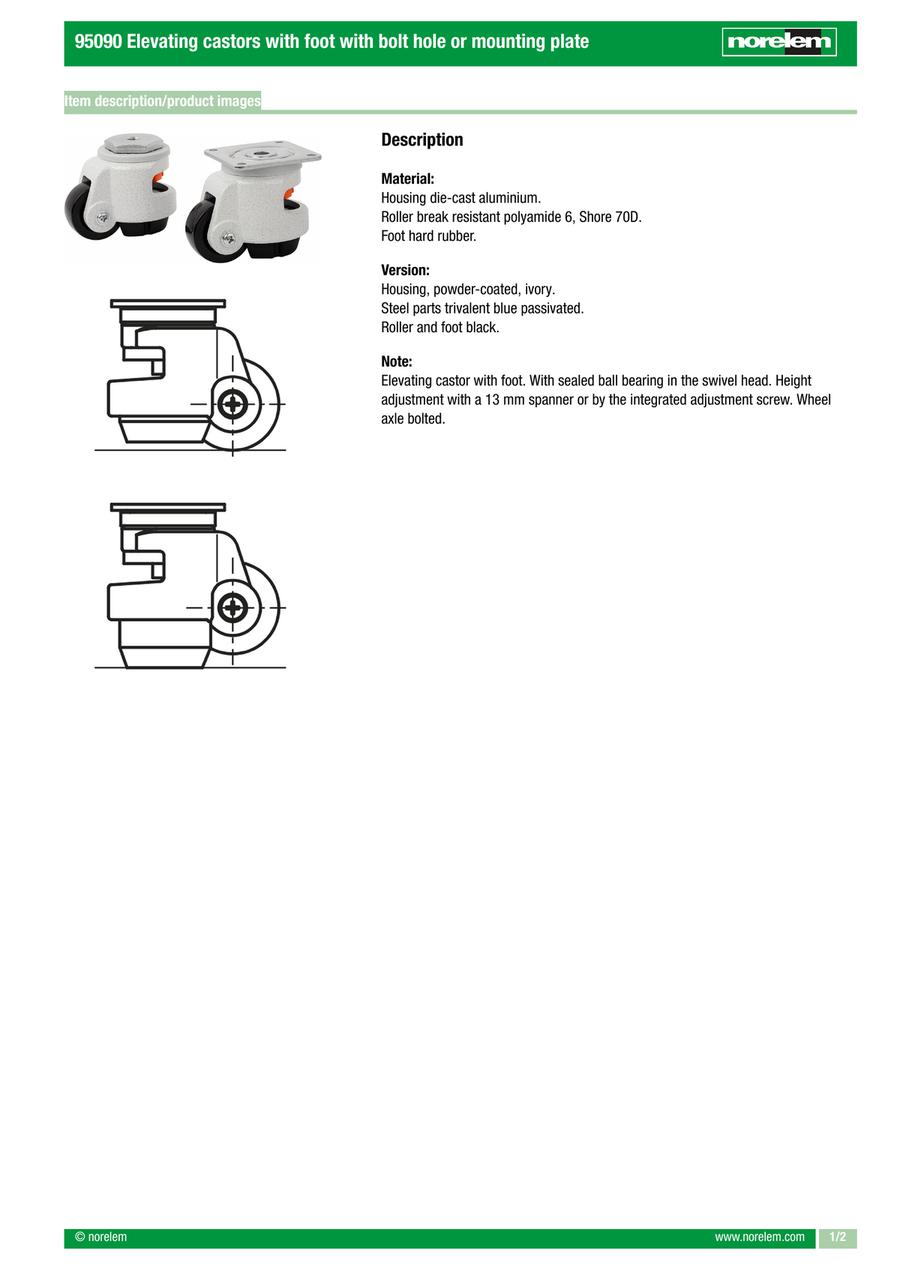

Elevating Castors with foot with bolt hole or mounting plate (95090)
· Height-adjustable
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 95090-045180 |
| 95090-045181 |
| 95090-050220 |
| 95090-050221 |
| 95090-063290 |
| 95090-063291 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Mounting Height H (mm) | Wheel Dia. D (mm) | Wheel Width B (mm) | D1 (mm) | A (mm) | B1 (mm) | B2 (mm) | B3 (mm) | H1 (mm) | L (mm) | L1 (mm) | R (mm) | SW (mm) | Permissible load (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
78.95 € | 1 | 4 Days | 72 | 45 | 18 | M8x12 | 32 | - | - | 58 | 82 | - | - | 54.5 | 40 | 180 | ||
79.09 € | 1 | 4 Days | 72 | 45 | 18 | 7 | 32 | 42 | 55 | 58 | 82 | 55 | 42 | 54.5 | - | 180 | ||
103.31 € | 1 | 4 Days | 84 | 50 | 22 | M12x15 | 38 | - | - | 72 | 94 | - | - | 63 | 46 | 250 | ||
103.31 € | 1 | 4 Days | 84 | 50 | 22 | 7 | 38 | 58 | 73 | 72 | 94 | 73 | 58 | 63 | - | 250 | ||
141.35 € | 1 | 4 Days | 104 | 63 | 29 | M12x15 | 46 | - | - | 85 | 119 | - | - | 77.5 | 65 | 500 | ||
141.41 € | 1 | 4 Days | 104 | 63 | 29 | 9 | 46 | 70 | 90 | 85 | 119 | 90 | 70 | 77.5 | - | 500 |
Loading...
Basic information
| Main material | Polyamide | Component material | Aluminium | Wheel bearing | plain bearing |
|---|
Configure
Basic Attributes
-
Mounting Height H(mm)
-
Wheel Dia. D(mm)
-
Wheel Width B(mm)
-
D1(mm)
- 7
- M8x12
- 9
- M12x15
-
A(mm)
-
B1(mm)
-
B2(mm)
- 55
- 73
- 90
-
B3(mm)
- 58
- 72
- 85
-
H1(mm)
- 82
- 94
- 119
-
L(mm)
- 55
- 73
- 90
-
L1(mm)
- 42
- 58
- 70
-
R(mm)
-
SW(mm)
- 40
- 46
- 65
-
Permissible load(kg)
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
