    KIPP

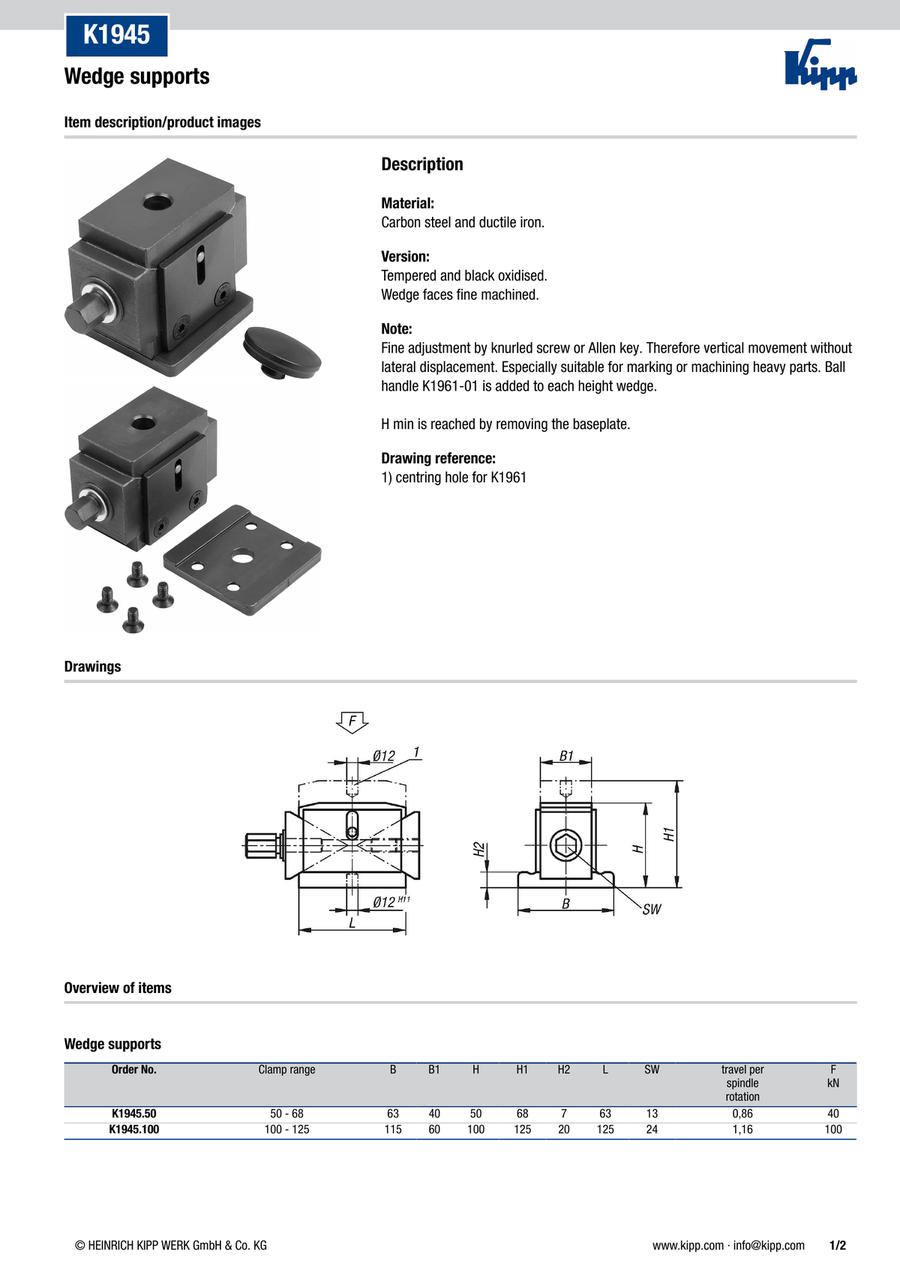

    Wedge supports (K1945)

    Wedge supports (K1945)

    Part number:

    Still undefined. 2 possible part numbers found.
    Quantity:

    Part number list

    Number of items
  • 1
    • Part number
    K1945.50
    K1945.100

    B

    (mm)

    B1

    (mm)

    B3=Clamping range

    (mm)

    F

    (kN)

    H

    (mm)

    H1

    (mm)

    H2

    (mm)

    Travel per spindle rotation

    L

    (mm)

    SW=Key width

    (mm)

    Weight

    (kg)

    		Minimum order quantity
    63
    40
    50 - 68
    40
    50
    68
    7
    0.86
    63
    13
    1.5690
    1 pieces
    115
    60
    100 - 125
    100
    100
    125
    20
    1.16
    125
    24
    8.4250
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    382.95 €
    ( 455.71 € )
    4 working days
    822.25 €
    ( 978.48 € )
    4 working days
  • 1

    • More Information

    Basic information

    · Vertical movement with no lateral shift.

    · Particularly suitable for marking out or machining heavy parts

    · Various optional attachments available
