NORELEM

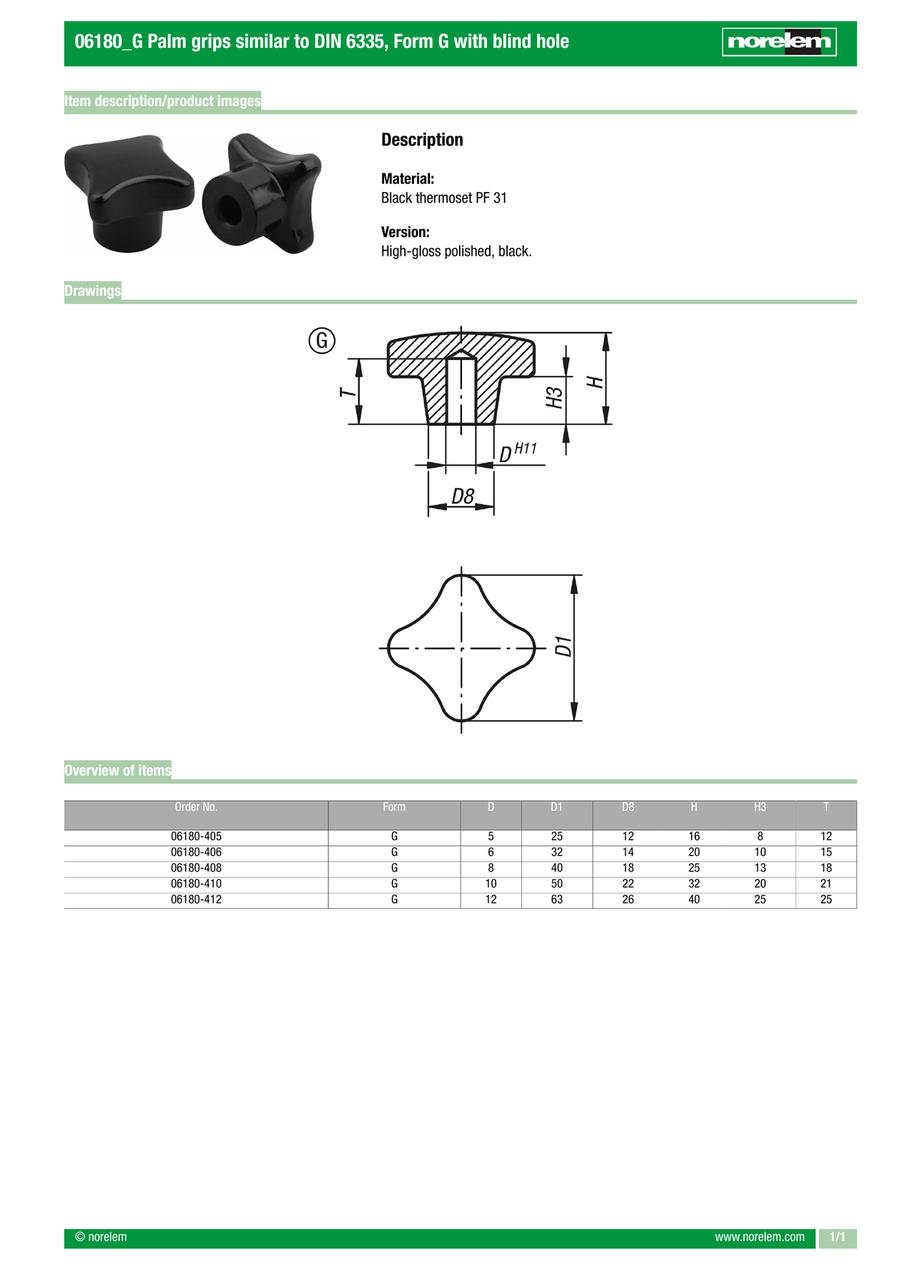

Palm grips similar to DIN 6335, Form G with blind hole (06180)

Palm grips similar to DIN 6335, Form G with blind hole (06180)

Part number:

Still undefined. 5 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    06180-405
    06180-406
    06180-408
    06180-410
    06180-412

    Outside diameter

    (φ)

    Main Body Height t

    (mm)

    H3

    D=bore

    (mm)

    D8

    (mm)

    T=bore depth

    (mm)

    		Minimum order quantity
    25
    16
    8
    5
    12
    12
    1 pieces
    32
    20
    10
    6
    14
    15
    1 pieces
    40
    25
    13
    8
    18
    18
    1 pieces
    50
    32
    20
    10
    22
    21
    1 pieces
    63
    40
    25
    12
    26
    25
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    0.51 €
    ( 0.61 € )
    4 working days
    0.66 €
    ( 0.79 € )
    4 working days
    1.12 €
    ( 1.33 € )
    4 working days
    1.30 €
    ( 1.55 € )
    4 working days
    2.10 €
    ( 2.50 € )
    4 working days
  • 1

    • More Information

    Basic information

    · Can be used as a clamping, retaining and fastening element

    · Application fields: machine, plant and fixture construction, toolmaking

    · For manually adjusting assemblies, machines and aggregates

    · Form G: blind hole

    · Different thread sizes
