NORELEM

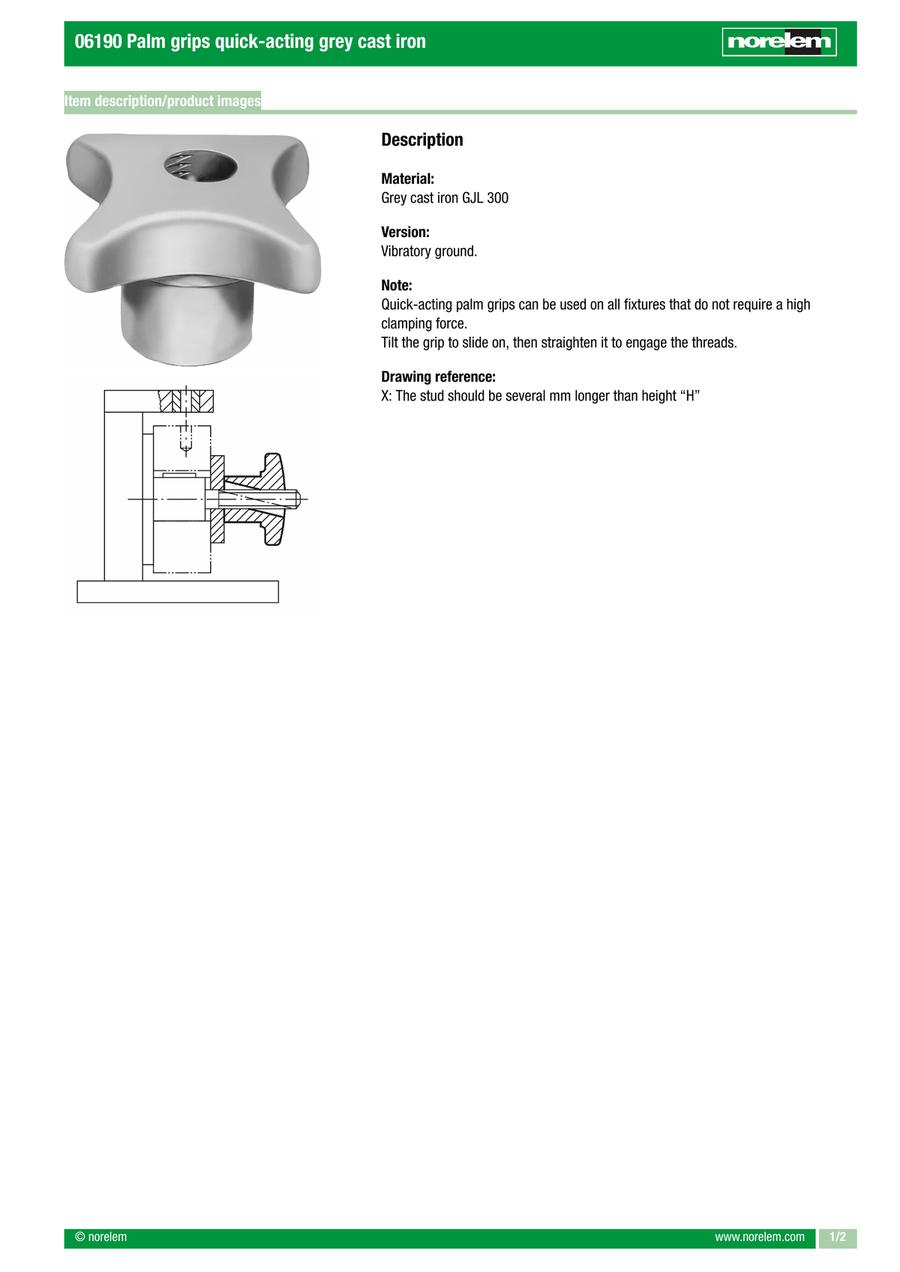

Palm grips quick-acting grey cast iron (06190)

Palm grips quick-acting grey cast iron (06190)

Part number:

Still undefined. 6 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    06190-06
    06190-08
    06190-10
    06190-12
    06190-14
    06190-16

    D

    Outside diameter

    (φ)

    Main Body Height t

    (mm)

    D2

    (mm)

    D4

    (mm)

    H1

    (Nm)

    		Minimum order quantity
    M6
    30
    20
    15
    7
    10
    1 pieces
    M8
    40
    25
    18
    9.4
    14
    1 pieces
    M10
    50
    30
    21
    11.3
    16
    1 pieces
    M12
    60
    35
    26
    13.1
    19
    1 pieces
    M14
    70
    40
    30
    15.6
    22
    1 pieces
    M16
    80
    45
    34
    17.6
    25
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    11.48 €
    ( 13.66 € )
    4 working days
    13.88 €
    ( 16.52 € )
    4 working days
    15.72 €
    ( 18.71 € )
    4 working days
    18.66 €
    ( 22.21 € )
    4 working days
    20.48 €
    ( 24.37 € )
    4 working days
    24.29 €
    ( 28.91 € )
    4 working days
  • 1

    • More Information

    Basic information

    · Can be used as a clamping, retaining and fastening element

    · Application fields: machine, plant and fixture construction, toolmaking

    · For manually adjusting assemblies, machines and aggregates

    · Quick-clamping function: for fixtures that do not require a high clamping force

    · Different thread sizes
