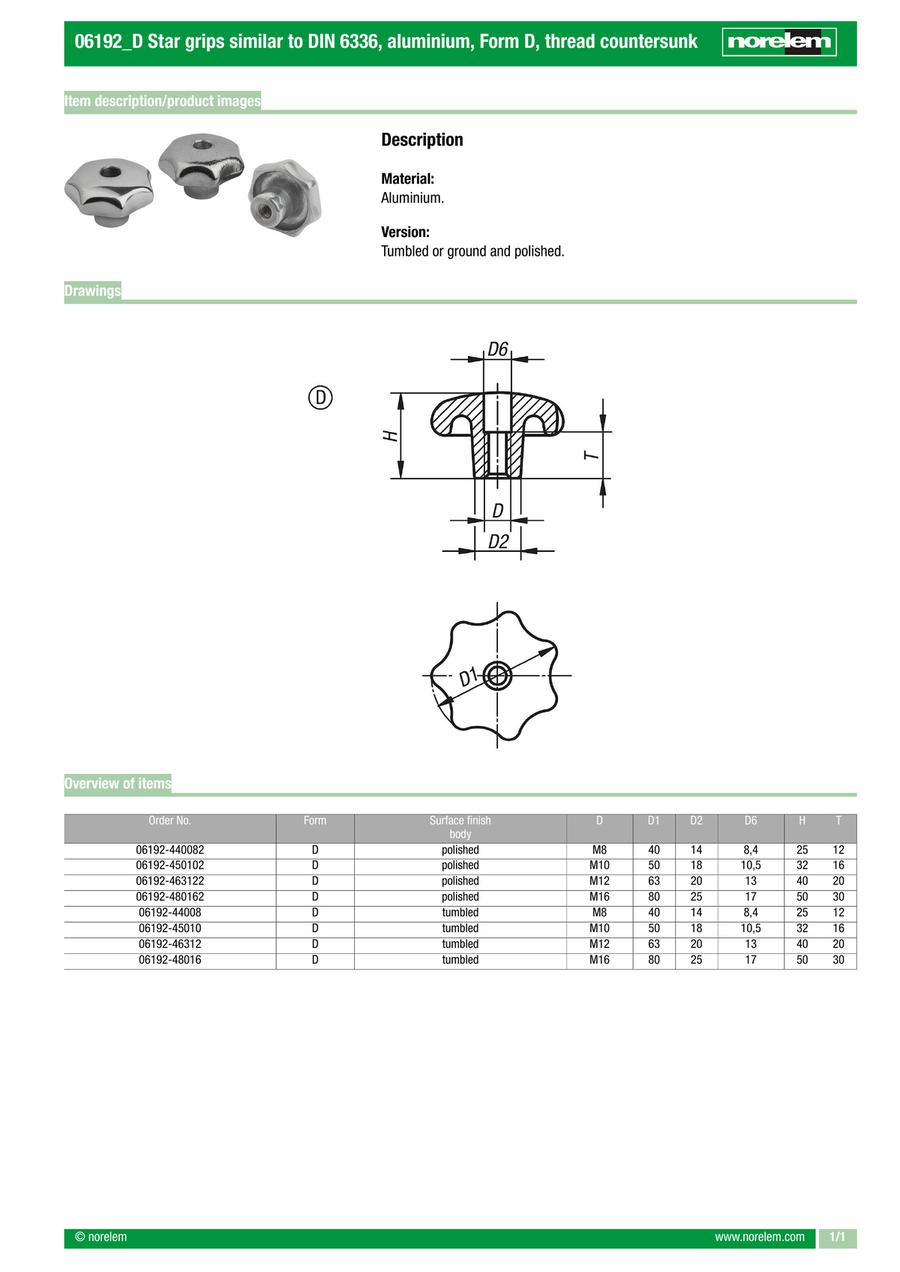

Star grips similar to DIN 6336, aluminium, Form D, thread countersunk (06192)
· Application fields: machine, plant and fixture construction, toolmaking
· For manually adjusting assemblies, machines and aggregates
· Form D: tapped and counterbored
· Version: vibratory ground or polished
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 06192-44008 |
| 06192-440082 |
| 06192-45010 |
| 06192-450102 |
| 06192-46312 |
| 06192-463122 |
| 06192-48016 |
| 06192-480162 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Mounting Section Diameter d(mm) and/or Diameter | Main Body Outer Diameter D (φ) | Surface finish body | D2 (mm) | D6 (mm) | H=Height (mm) | H3 | T=thread depth (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
6.78 € | 1 | 4 Days | M8 | 40 | tumbled | 14 | 8.4 | 25 | 13 | 12 | ||
11.66 € | 1 | 4 Days | M8 | 40 | polished | 14 | 8.4 | 25 | 13 | 12 | ||
8.50 € | 1 | 4 Days | M10 | 50 | tumbled | 18 | 10.5 | 32 | 17 | 16 | ||
14.23 € | 1 | 4 Days | M10 | 50 | polished | 18 | 10.5 | 32 | 17 | 16 | ||
10.85 € | 1 | 4 Days | M12 | 63 | tumbled | 20 | 13 | 40 | 21 | 20 | ||
15.69 € | 1 | 4 Days | M12 | 63 | polished | 20 | 13 | 40 | 21 | 20 | ||
14.23 € | 1 | 4 Days | M16 | 80 | tumbled | 25 | 17 | 50 | 25 | 30 | ||
23.49 € | 1 | 4 Days | M16 | 80 | polished | 25 | 17 | 50 | 25 | 30 |
Loading...
Basic information
| Main Body Material | Aluminum | Form | D |
|---|
Configure
Basic Attributes
-
Mounting Section Diameter d(mm) and/or Diameter
-
Main Body Outer Diameter D(φ)
-
Surface finish body
- polished
- tumbled
-
D2(mm)
-
D6(mm)
-
H=Height(mm)
-
H3
-
T=thread depth(mm)
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
