NORELEM

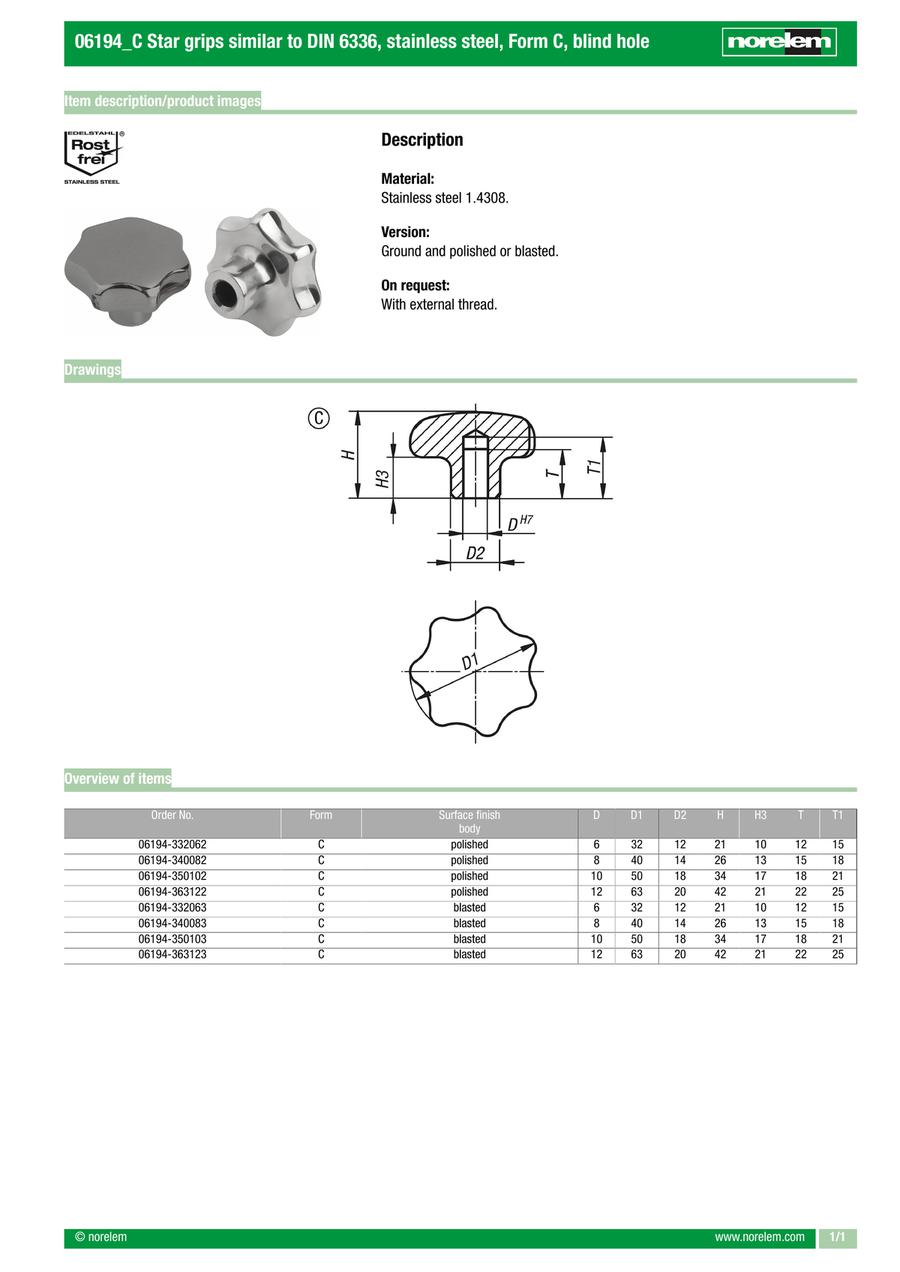

Star grips similar to DIN 6336, stainless steel, Form C, blind hole (06194)

Star grips similar to DIN 6336, stainless steel, Form C, blind hole (06194)

Part number:

Still undefined. 8 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    06194-332062
    06194-332063
    06194-340082
    06194-340083
    06194-350102
    06194-350103
    06194-363122
    06194-363123

    Outside diameter

    (φ)

    Main Body Height t

    (mm)

    H3

    Surface finish body

    D=bore

    (mm)

    D2

    (mm)

    T=bore depth

    (mm)

    T1

    (mm)

    		Minimum order quantity
    32
    21
    10
    Polished
    6
    12
    12
    15
    1 pieces
    32
    21
    10
    Blasted
    6
    12
    12
    15
    1 pieces
    40
    26
    13
    Polished
    8
    14
    15
    18
    1 pieces
    40
    26
    13
    Blasted
    8
    14
    15
    18
    1 pieces
    50
    34
    17
    Polished
    10
    18
    18
    21
    1 pieces
    50
    34
    17
    Blasted
    10
    18
    18
    21
    1 pieces
    63
    42
    21
    Polished
    12
    20
    22
    25
    1 pieces
    63
    42
    21
    Blasted
    12
    20
    22
    25
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    9.69 €
    ( 11.53 € )
    4 working days
    8.72 €
    ( 10.38 € )
    4 working days
    12.39 €
    ( 14.74 € )
    4 working days
    11.16 €
    ( 13.28 € )
    4 working days
    16.30 €
    ( 19.40 € )
    4 working days
    14.66 €
    ( 17.45 € )
    4 working days
    21.10 €
    ( 25.11 € )
    4 working days
    19.00 €
    ( 22.61 € )
    4 working days
  • 1

    • More Information

    Basic information

    · Can be used as a clamping, retaining and fastening element

    · Application fields: machine construction, rehabilitation and medical technology, food industry, pharmaceutical industry, chemical industry, outdoors

    · For manually adjusting assemblies, machines and aggregates

    · Form C: blind hole

    · Version: polished or abrasive blasted
