NORELEM

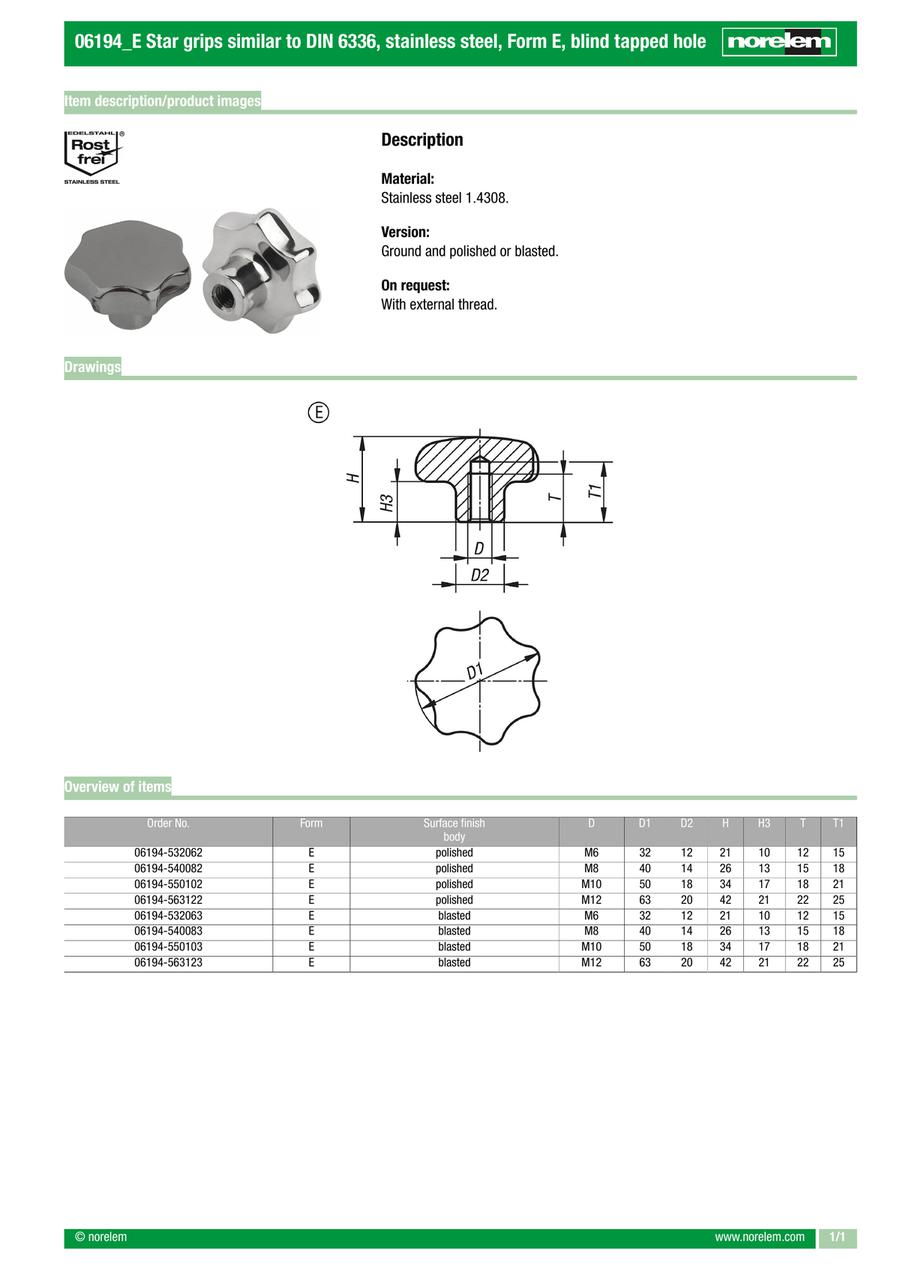

Star grips similar to DIN 6336, stainless steel, Form E, blind tapped hole (06194)

Star grips similar to DIN 6336, stainless steel, Form E, blind tapped hole (06194)

Part number:

Still undefined. 8 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    06194-532062
    06194-532063
    06194-540082
    06194-540083
    06194-550102
    06194-550103
    06194-563122
    06194-563123

    D

    Outside diameter

    (φ)

    Main Body Height t

    (mm)

    H3

    Surface finish body

    D2

    (mm)

    T=thread depth

    (mm)

    T1

    (mm)

    		Minimum order quantity
    M6
    32
    21
    10
    Polished
    12
    12
    15
    1 pieces
    M6
    32
    21
    10
    Blasted
    12
    12
    15
    1 pieces
    M8
    40
    26
    13
    Polished
    14
    15
    18
    1 pieces
    M8
    40
    26
    13
    Blasted
    14
    15
    18
    1 pieces
    M10
    50
    34
    17
    Polished
    18
    18
    21
    1 pieces
    M10
    50
    34
    17
    Blasted
    18
    18
    21
    1 pieces
    M12
    63
    42
    21
    Polished
    20
    22
    25
    1 pieces
    M12
    63
    42
    21
    Blasted
    20
    22
    25
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    10.76 €
    ( 12.80 € )
    4 working days
    9.67 €
    ( 11.51 € )
    4 working days
    13.58 €
    ( 16.16 € )
    4 working days
    12.23 €
    ( 14.55 € )
    4 working days
    17.58 €
    ( 20.92 € )
    4 working days
    15.83 €
    ( 18.84 € )
    4 working days
    22.29 €
    ( 26.53 € )
    4 working days
    20.07 €
    ( 23.88 € )
    4 working days
  • 1

    • More Information

    Basic information

    · Can be used as a clamping, retaining and fastening element

    · Application fields: machine construction, rehabilitation and medical technology, food industry, pharmaceutical industry, chemical industry, outdoors

    · For manually adjusting assemblies, machines and aggregates

    · Form E: tapped blind hole

    · Version: polished or abrasive blasted
