NORELEM

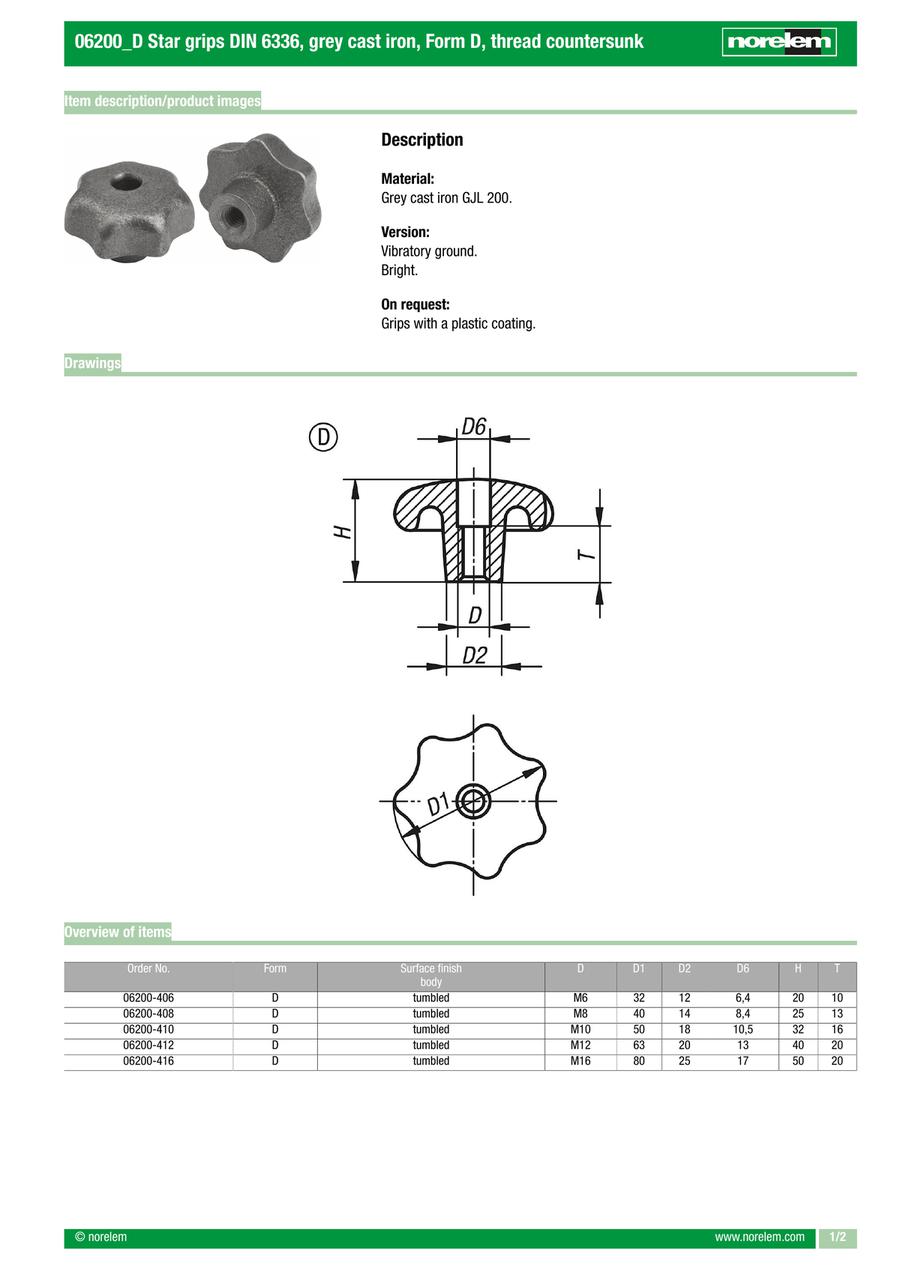

Star grips DIN 6336, grey cast iron, Form D, thread countersunk (06200)

Star grips DIN 6336, grey cast iron, Form D, thread countersunk (06200)

Part number:

Still undefined. 5 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    06200-406
    06200-408
    06200-410
    06200-412
    06200-416

    D

    Outside diameter

    (φ)

    Main Body Height t

    (mm)

    H3

    D2

    (mm)

    D6

    (mm)

    T=thread depth

    (mm)

    		Minimum order quantity
    M6
    32
    20
    10
    12
    6.4
    10
    1 pieces
    M8
    40
    25
    13
    14
    8.4
    13
    1 pieces
    M10
    50
    32
    17
    18
    10.5
    16
    1 pieces
    M12
    63
    40
    21
    20
    13
    20
    1 pieces
    M16
    80
    50
    25
    25
    17
    20
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    2.82 €
    ( 3.36 € )
    4 working days
    2.97 €
    ( 3.53 € )
    4 working days
    4.22 €
    ( 5.02 € )
    4 working days
    6.17 €
    ( 7.34 € )
    4 working days
    11.07 €
    ( 13.17 € )
    4 working days
  • 1

    • More Information

    Basic information

    · Can be used as a clamping, retaining and fastening element

    · Application fields: machine, plant and fixture construction, toolmaking

    · For manually adjusting assemblies, machines and aggregates

    · Form D: tapped and counterbored

    · Version: vibratory ground
