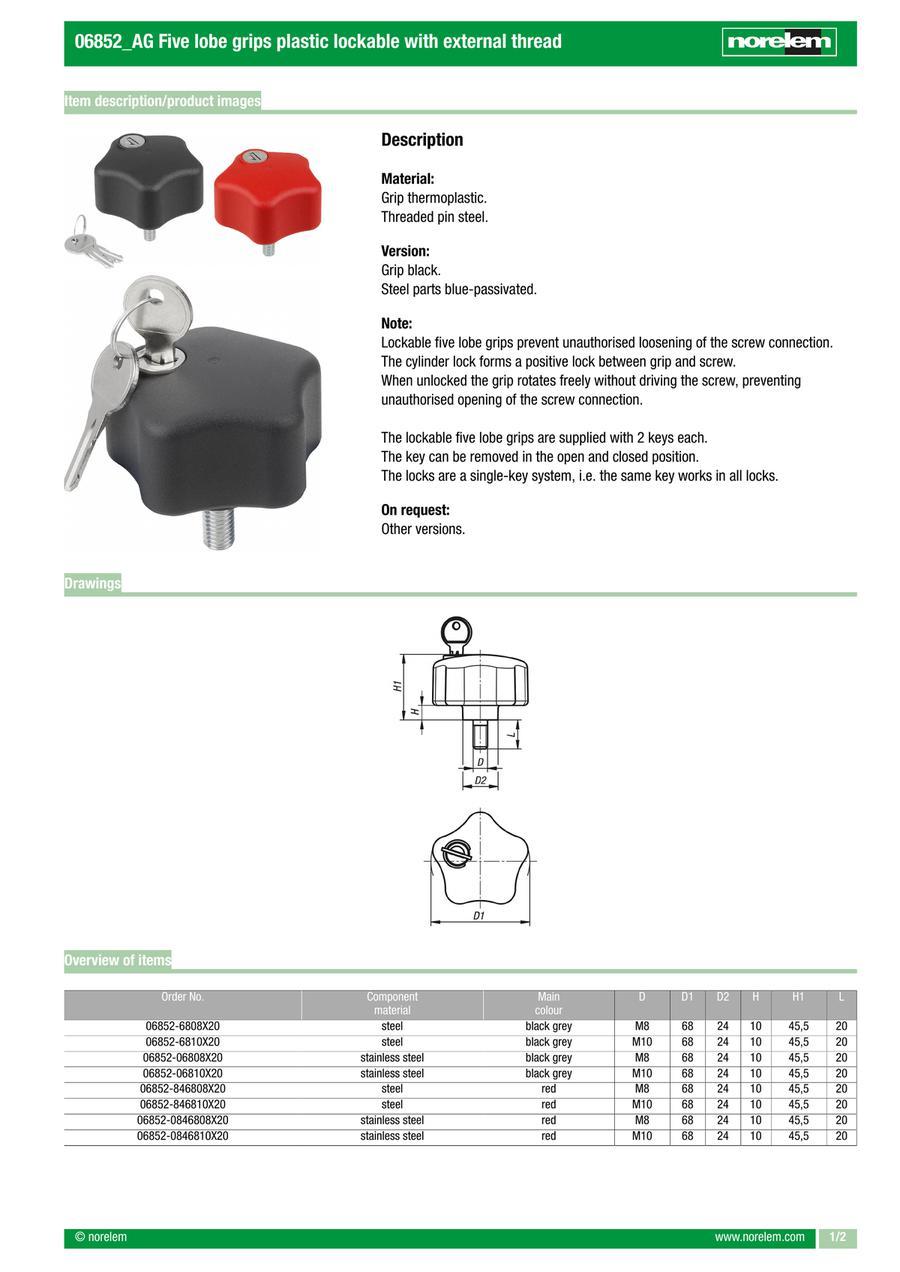

Five lobe grips plastic lockable with male thread (06852)
· The key can be removed in both positions (open and closed)
· The five lobe grips are supplied with 2 keys
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 06852-06808X20 |
| 06852-06810X20 |
| 06852-0846808X20 |
| 06852-0846810X20 |
| 06852-6808X20 |
| 06852-6810X20 |
| 06852-846808X20 |
| 06852-846810X20 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Mounting Section Diameter d(mm) and/or Diameter | Component material | Main colour (mm) | |
|---|---|---|---|---|---|---|---|
26.43 € | 1 | 4 Days | M8 | Stainless steel | black grey | ||
26.59 € | 1 | 4 Days | M10 | Stainless steel | black grey | ||
26.43 € | 1 | 4 Days | M8 | Stainless steel | red | ||
26.59 € | 1 | 4 Days | M10 | Stainless steel | red | ||
24.00 € | 1 | 4 Days | M8 | Steel | black grey | ||
24.21 € | 1 | 4 Days | M10 | Steel | black grey | ||
24.00 € | 1 | 4 Days | M8 | Steel | red | ||
24.21 € | 1 | 4 Days | M10 | Steel | red |
Loading...
Basic information
| Main Body Material | Plastic | Main Body Outer Diameter D(φ) | 68 | D2(mm) | 24 |
|---|---|---|---|---|---|
| H(mm) | 10 | H1(Nm) | 45.5 | L=thread length(mm) | 20 |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
