    KIPP

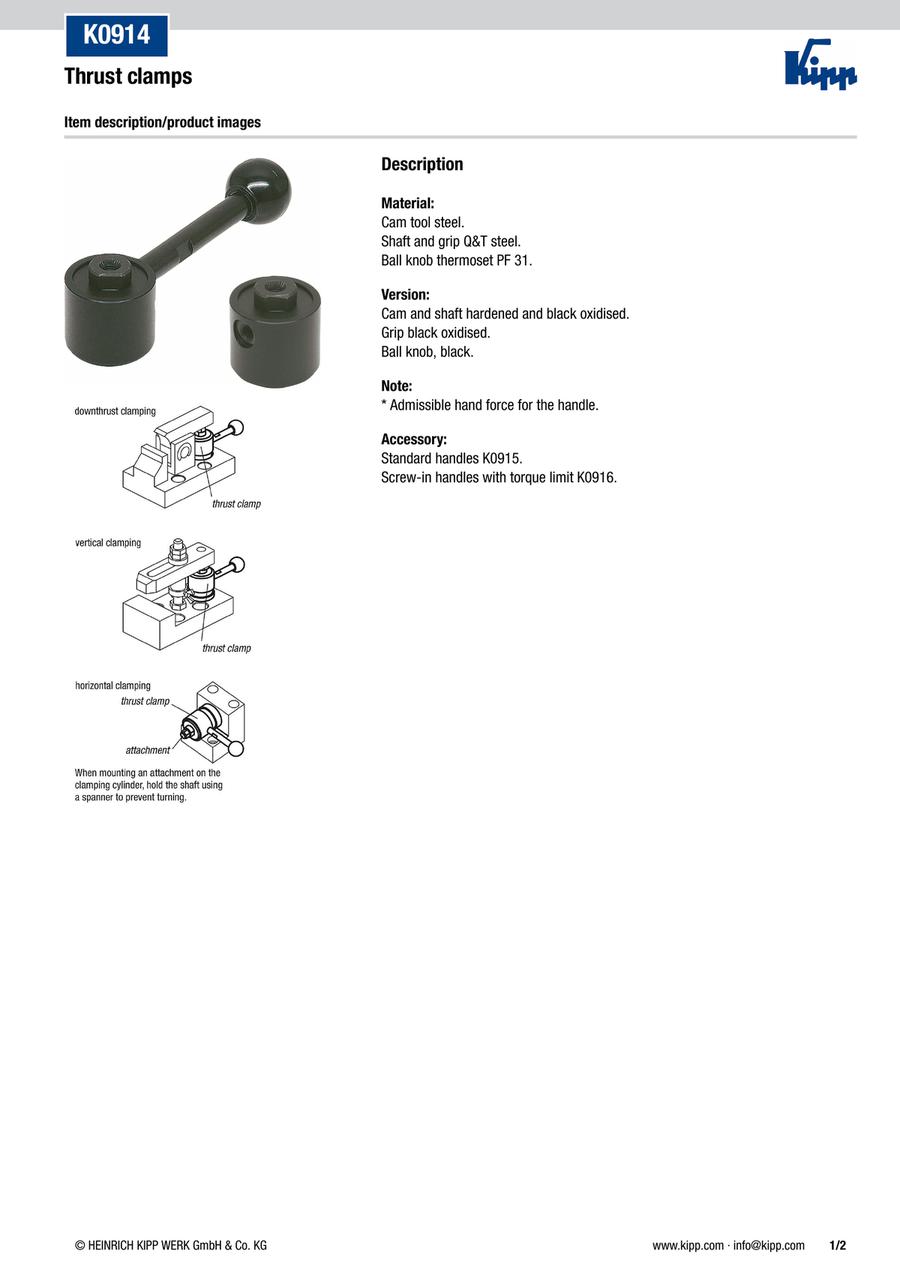

    Thrust clamps (K0914)

    Thrust clamps (K0914)

    Part number:

    Still undefined. 4 possible part numbers found.
    Quantity:

    Part number list

    Number of items
  • 1
    • Part number
    K0914.252500
    K0914.252501
    K0914.323200
    K0914.323201

    Version 1

    Clamping force

    (kN)

    D

    (mm)

    E

    (mm)

    K

    (mm)

    A max.

    (mm)

    A min.

    (mm)

    B

    (mm)

    C

    (mm)

    F

    (mm)

    G

    (mm)

    H

    (mm)

    Hand force FH

    (N)

    J

    (mm)

    L (Travel)

    M

    (mm)

    N

    (mm)

    Weight

    (kg)

    		Minimum order quantity
    without grip
    3
    16
    10
    15
    26.7
    25
    25
    23
    1.7
    M4 x 6
    M4x6
    150
    -
    123°
    12
    -
    0.0649
    1 pieces
    with grip
    4
    16
    10
    15
    26.7
    25
    25
    23
    1.7
    M4 x 6
    M4x6
    150
    20
    123°
    12
    69.5
    0.1233
    1 pieces
    without grip
    4
    20
    13
    19.5
    34.5
    32
    32
    30
    2.5
    M6 x 9
    M6 x 9
    200
    -
    135°
    15
    -
    0.1473
    1 pieces
    with grip
    4
    20
    13
    19.5
    34.5
    32
    32
    30
    2.5
    M6 x 9
    M6 x 9
    200
    25
    135°
    15
    103
    0.1875
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    177.63 €
    ( 211.38 € )
    4 working days
    192.97 €
    ( 229.63 € )
    4 working days
    205.23 €
    ( 244.22 € )
    4 working days
    223.59 €
    ( 266.07 € )
    4 working days
  • 1

    • More Information

    Basic information

    · Self-locking

    · Manual actuation

    · Suitable for push and pull clamping

    · Vertical or horizontal mounting
