    KIPP

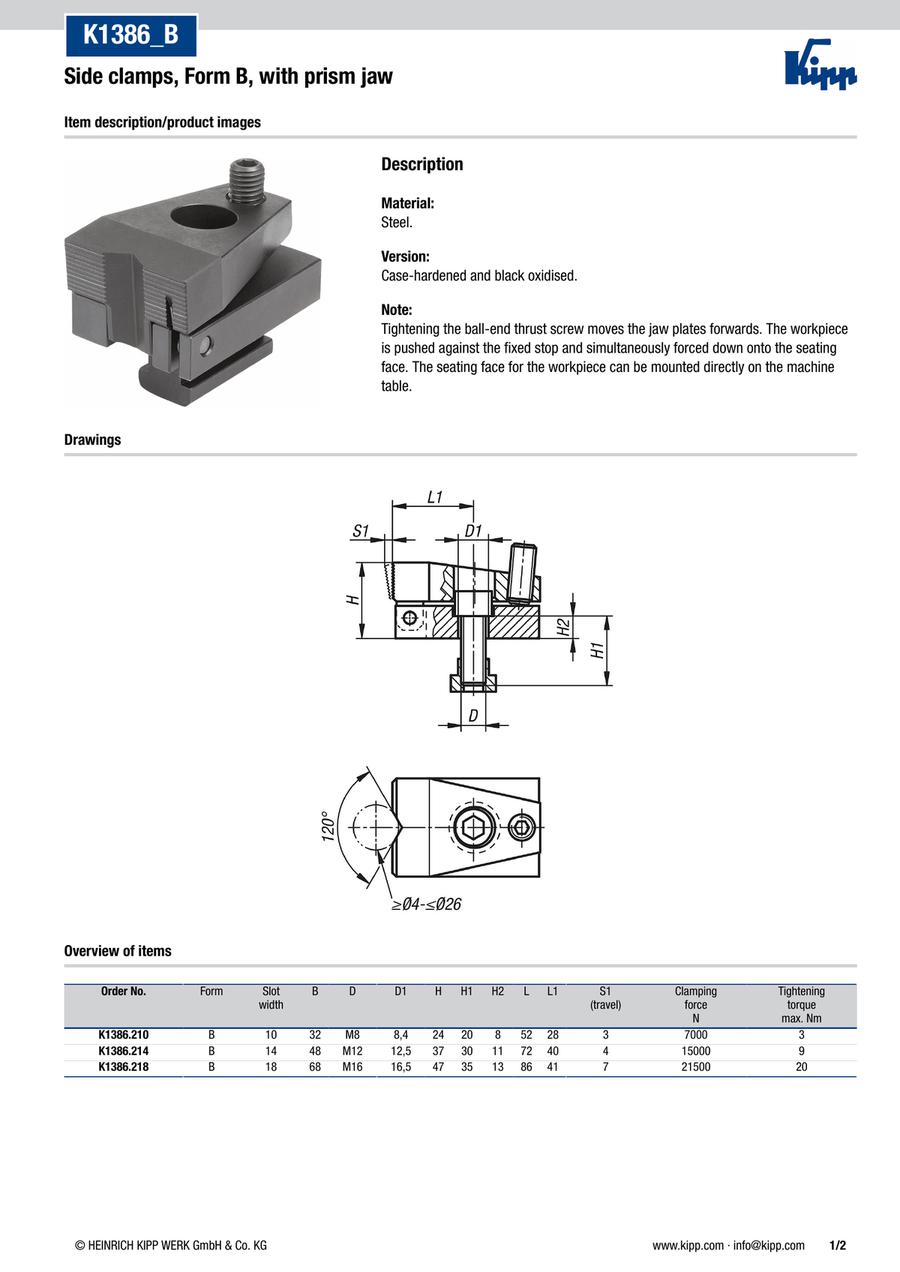

    Side clamps, Form B, with prism jaw (K1386)

    Side clamps, Form B, with prism jaw (K1386)

    Part number:

    Still undefined. 3 possible part numbers found.
    Quantity:

    Part number list

    Number of items
  • 1
    • Part number
    K1386.210
    K1386.214
    K1386.218

    B=Width

    (mm)

    D1

    (mm)

    H1

    (mm)

    H2

    (mm)

    L=Length

    (mm)

    L1

    (mm)

    Tightening torque max.

    (Nm)

    D

    (mm)

    BN=Slot width

    (mm)

    F=Retaining force

    (N)

    H

    (mm)

    S1 (Travel)

    (mm)

    Weight

    (kg)

    		Minimum order quantity
    32
    8.4
    20
    8
    52
    28
    3
    M8
    10
    7000
    24
    3
    0.2711
    1 pieces
    48
    12.5
    30
    11
    72
    40
    9
    M12
    14
    15000
    37
    4
    0.8373
    1 pieces
    68
    16.5
    35
    13
    86
    41
    20
    M16
    18
    21500
    47
    7
    1.7510
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    150.44 €
    ( 179.02 € )
    4 working days
    176.61 €
    ( 210.17 € )
    4 working days
    211.50 €
    ( 251.69 € )
    4 working days
  • 1

    • More Information

    Basic information

    · Workpiece clamping with positive down force

    · High clamping forces

    · Clamping jaws hardened

    · Use on T-slot tables
