    KIPP

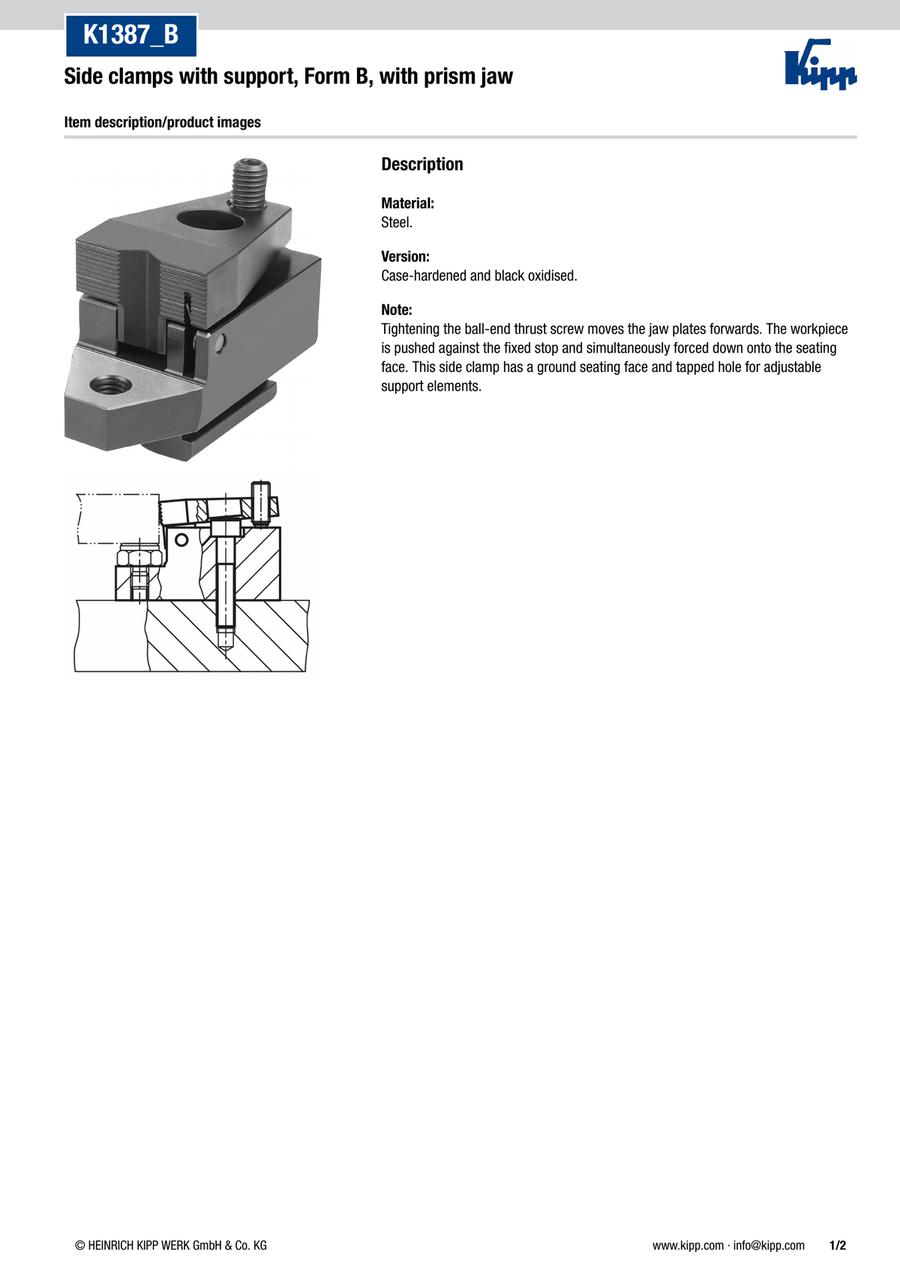

    Side clamps with support, Form B, with prism jaw (K1387)

    Side clamps with support, Form B, with prism jaw (K1387)

    Part number:

    Still undefined. 3 possible part numbers found.
    Quantity:

    Part number list

    Number of items
  • 1
    • Part number
    K1387.210
    K1387.214
    K1387.218

    B=Width

    (mm)

    B1

    (mm)

    D1

    (mm)

    H1

    (mm)

    H2

    (mm)

    H3

    (mm)

    L=Length

    (mm)

    L1

    (mm)

    L2

    (mm)

    L3

    (mm)

    Tightening torque max.

    (Nm)

    D

    (mm)

    D2

    (mm)

    BN=Slot width

    (mm)

    F=Retaining force

    (N)

    H

    (mm)

    S1 (Travel)

    (mm)

    Weight

    (kg)

    		Minimum order quantity
    32
    12.1
    8.4
    40
    28
    15
    52
    28
    72.5
    38
    3
    M8
    M8
    10
    7000
    44
    3
    0.5718
    1 pieces
    48
    16
    13
    45
    27
    15
    72
    40
    100
    55
    9
    M12
    M12
    14
    15000
    53
    4
    1.3470
    1 pieces
    68
    18.8
    17
    60
    38
    20
    86
    41
    126
    63
    20
    M16
    M16
    18
    21500
    72
    7
    3.1700
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    243.77 €
    ( 290.09 € )
    4 working days
    302.04 €
    ( 359.43 € )
    4 working days
    374.90 €
    ( 446.13 € )
    4 working days
  • 1

    • More Information

    Basic information

    · Workpiece clamping with positive down force

    · High clamping forces

    · Clamping jaws hardened

    · Use on T-slot tables

    · Ground contact face
