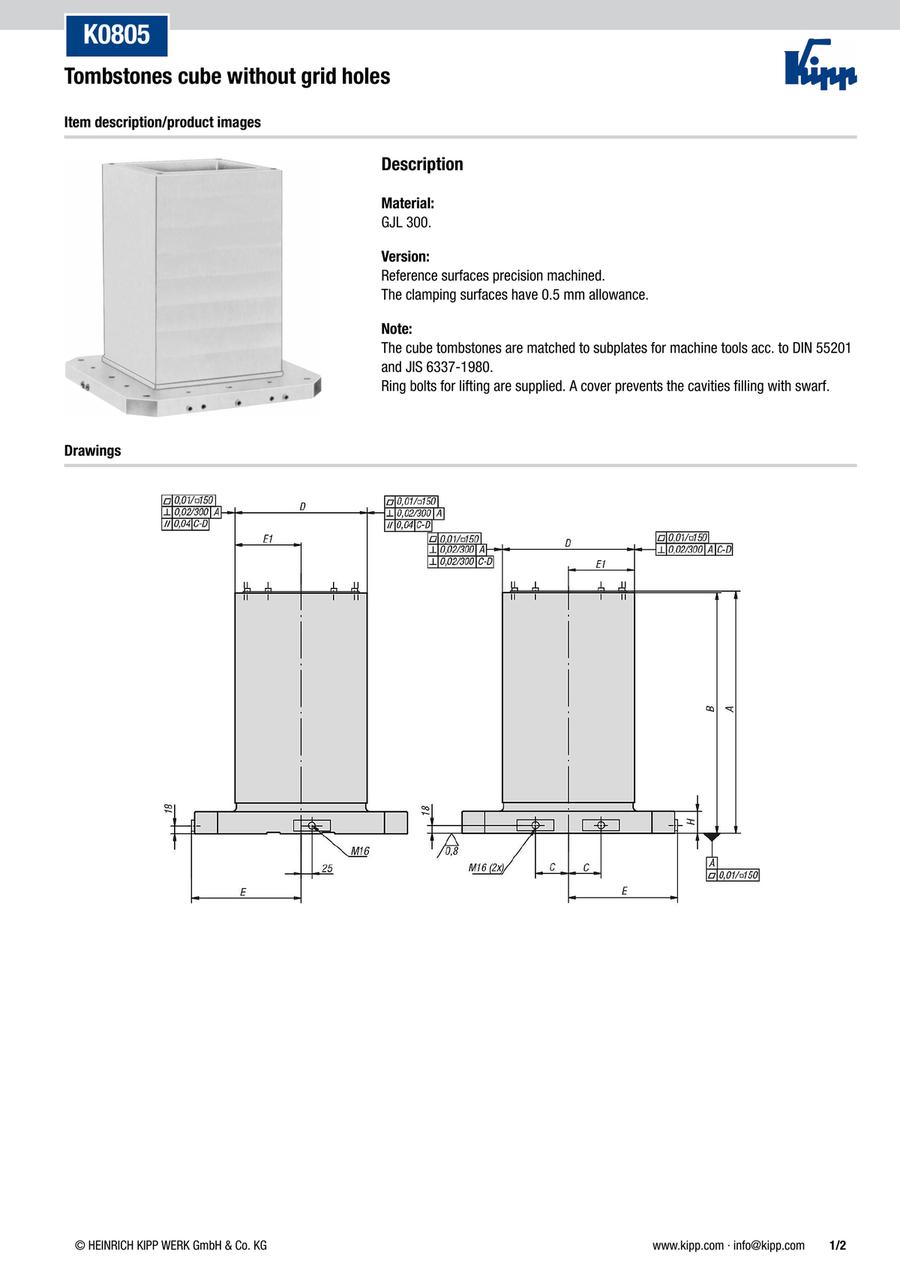

Tombstones cube without grid holes (K0805)
· Rough-machined clamping surfaces
· Precision-machined reference surface
· For DIN 55201, JIS 6337-1980 machine tables
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| K0805.0040251 |
| K0805.005030 |
| K0805.0050301 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Main material | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | E1 (mm) | Weight (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
3,485.65 € | 1 | 4 Days | - | 553 | 550 | 55 | 251 ±0.2 | 200 | 125.5±0.2 | 183 | ||
4,240.05 € | 1 | 4 Days | - | 553 | 550 | 75 | 301 ±0.2 | 250 | 150.5±0.2 | 231 | ||
4,588.50 € | 1 | 4 Days | Grey cast iron | 653 | 650 | 75 | 301±0.2 | 250 | 150.5±0.2 | 268 |
Loading...
Basic information
| G | 20 | H(mm) | 50 |
|---|
Configure
Basic Attributes
-
Main material
- Grey cast iron
-
A(mm)
-
B(mm)
- 550
- 650
-
C(mm)
-
D(mm)
- 251 ±0.2
- 301 ±0.2
- 301±0.2
-
E(mm)
-
E1(mm)
- 125.5±0.2
- 150.5±0.2
-
Weight(kg)
-
Type
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
