    KIPP

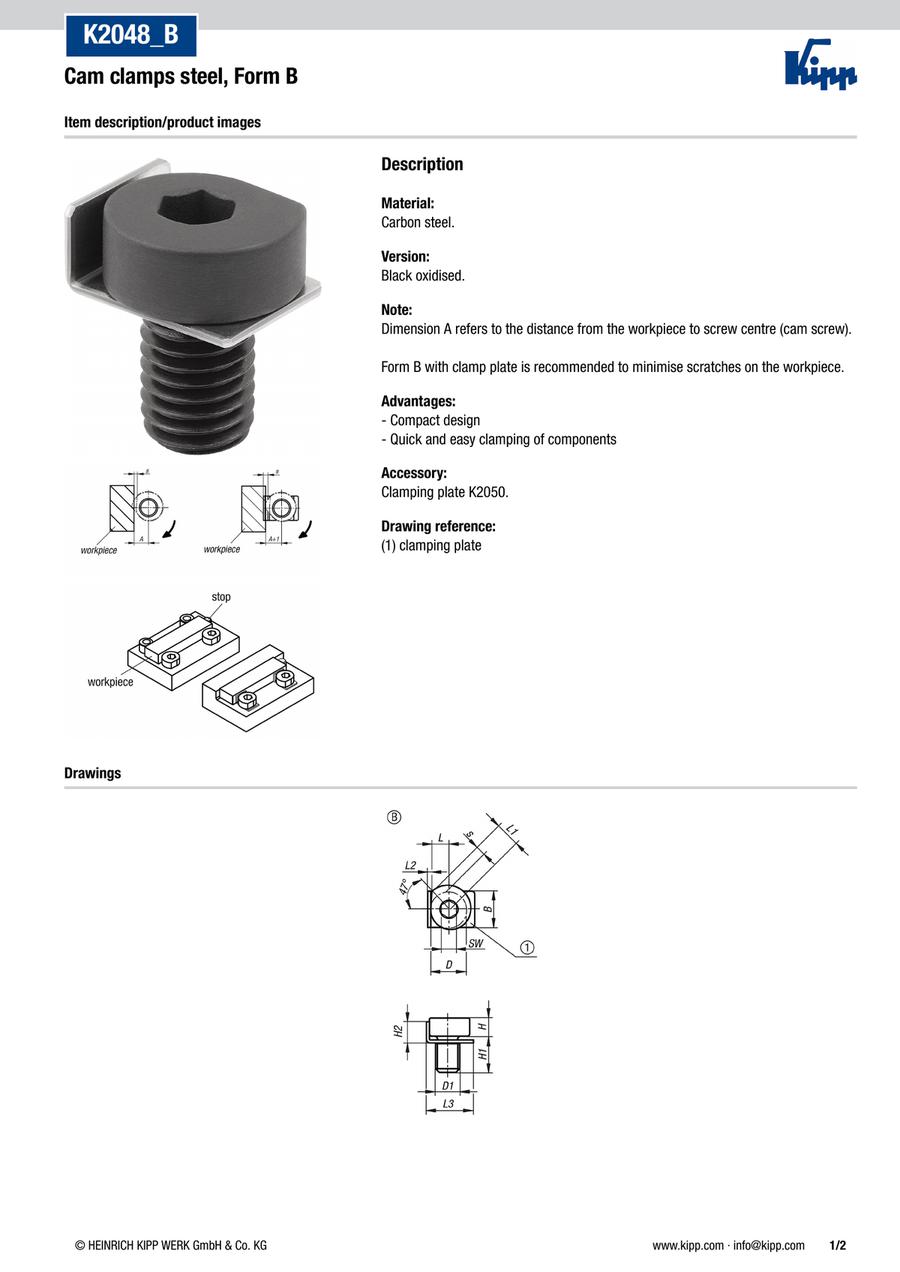

    Cam clamps steel, Form B (K2048)

    Cam clamps steel, Form B (K2048)

    Part number:

    Still undefined. 4 possible part numbers found.
    Quantity:

    Part number list

    Number of items
  • 1
    • Part number
    K2048.061
    K2048.081
    K2048.101
    K2048.121

    A

    (mm)

    B=Width

    (mm)

    D1=Thread

    H=Height

    (mm)

    H1

    (mm)

    H2

    (mm)

    L=Length

    (mm)

    L1

    (mm)

    L3

    (mm)

    Tightening torque max.

    (Nm)

    D=Diameter

    (mm)

    Weight

    (kg)

    Travel S

    (mm)

    		Minimum order quantity
    5.9
    10
    M6
    5
    9
    6
    5
    6.8
    13
    7.4
    10
    0.0070
    1.8
    1 pieces
    7.1
    12
    M8
    6
    12
    7
    6
    8.2
    15.5
    18
    12
    0.0130
    2.2
    1 pieces
    8.3
    14
    M10
    7
    15
    8
    7
    9.5
    18
    35
    14
    0.0204
    2.5
    1 pieces
    9.5
    16
    M12
    8
    18
    9
    8
    10.9
    20
    60
    16
    0.0330
    2.9
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    25.07 €
    ( 29.83 € )
    4 working days
    26.86 €
    ( 31.96 € )
    4 working days
    27.86 €
    ( 33.15 € )
    4 working days
    28.78 €
    ( 34.25 € )
    4 working days
  • 1

    • More Information

    Basic information

    · Compact design

    · Quick and easy clamping of components
