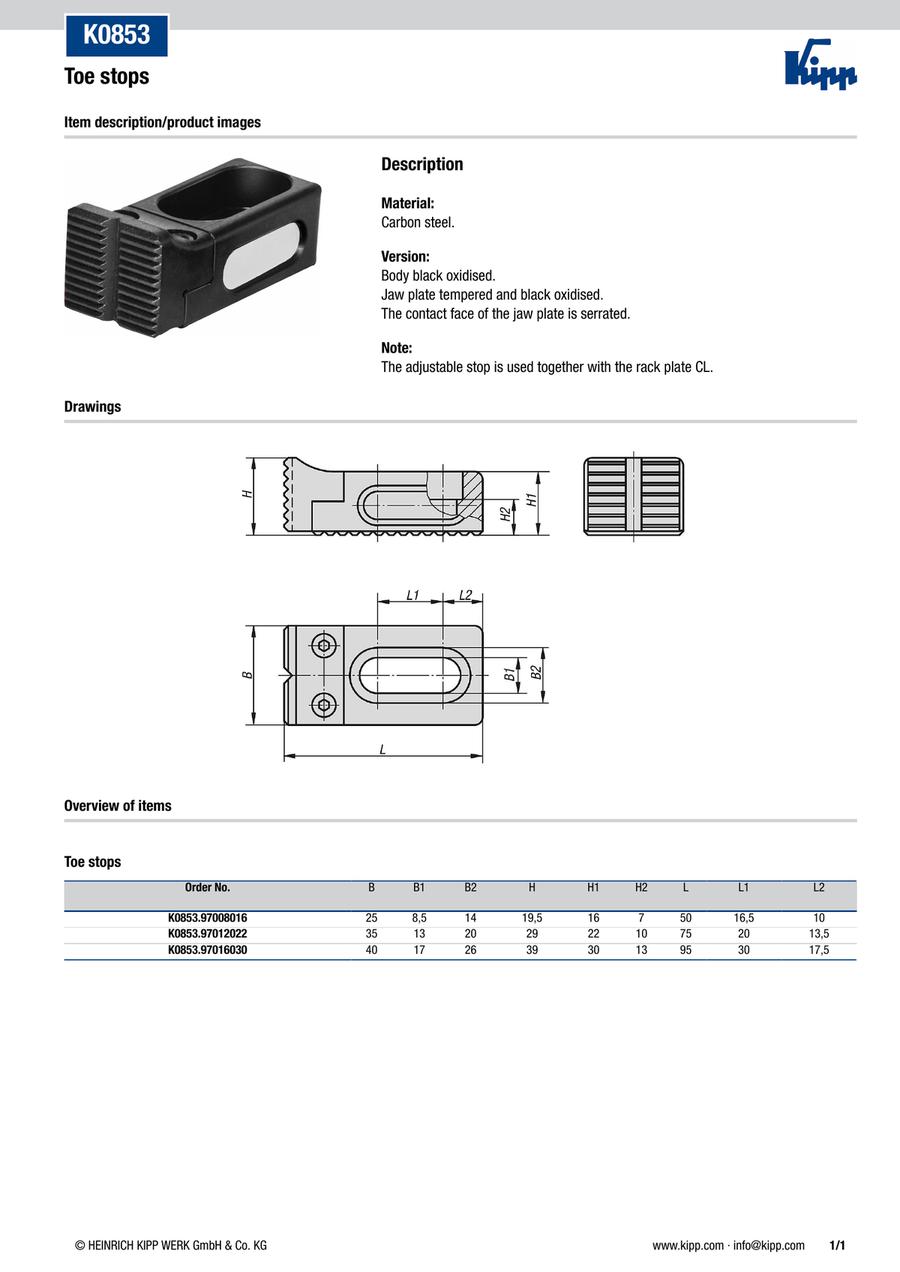

Toe stops (K0853)
· With toothing
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| K0853.97008016 |
| K0853.97012022 |
| K0853.97016030 |
| K0853.97108016 |
| K0853.97112022 |
| K0853.97116030 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Form | B=Width (mm) | B1 (mm) | B2 (mm) | H (mm) | H1 (mm) | H2 (mm) | L=Length (mm) | L1 (mm) | L2 (mm) | Application | J (mm) | Weight (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
95.98 € | 1 | 4 Days | A | 25 | 8.5 | 14 | 19.5 | 16 | 7 | 50 | 16.5 | 10 | blanks | 7 | 0.1125 | ||
132.57 € | 1 | 4 Days | A | 35 | 13 | 20 | 29 | 22 | 10 | 75 | 20 | 13.5 | blanks | 10 | 0.3086 | ||
188.31 € | 1 | 4 Days | A | 40 | 17 | 26 | 39 | 30 | 13 | 95 | 30 | 17.5 | blanks | 13 | 0.6140 | ||
98.73 € | 1 | 4 Days | B | 25 | 8.5 | 14 | 19.5 | 16 | 7 | 50 | 16.5 | 10 | machined | 7 | 0.1096 | ||
133.46 € | 1 | 4 Days | B | 35 | 13 | 20 | 29 | 22 | 10 | 75 | 26.5 | 13.5 | machined | 10 | 0.3042 | ||
191.06 € | 1 | 4 Days | B | 40 | 17 | 26 | 39 | 30 | 13 | 95 | 30 | 17.5 | machined | 13 | 0.5936 |
Loading...
Basic information
| Main material | High carbon steel | Surface finish body | black oxidised | Component material | High carbon steel |
|---|---|---|---|---|---|
| Version 1 | adjustable | Kind of fastening | elongated holes | Item | Catch Plate |
| Surface finish component | tempered and black oxidised |
Configure
Basic Attributes
-
Form
- A
- B
-
B=Width(mm)
-
B1(mm)
-
B2(mm)
-
H(mm)
-
H1(mm)
-
H2(mm)
-
L=Length(mm)
-
L1(mm)
-
L2(mm)
-
Application
- blanks
- machined
-
J(mm)
- 7
- 10
- 13
-
Weight(kg)
-
Type
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
