Configure
- B=Width(mm)
- 25
- 30
- 35
- 40
- B1(mm)
- 10
- 11
- 12
- 14
- H=Height(mm)
- 6
- 8
- 9
- 10
- H1(mm)
- 15
- 19
- 23
- 25
- H2(mm)
- 7
- 10
- H3(mm)
- 1.6
- 2
- 2.3
- 3.2
- L=Length(mm)
- 35
- 43
- 54
- 65
- L1(mm)
- 24.5
- 29
- 37
- 45
- L2(mm)
- 10
- 12
- 16
- 20
- Clamping force(kN)
- 7
- 8.5
- 20
- 40
- Tightening torque(Nm)
- 25
- 50
- 90
- 200
- D=diameter(mm)
- 6
- 8
- 10
- J(mm)
- 3
- 4
- 5
- 6
- Weight(kg)
- 0.0821
- 0.1521
- 0.2678
- 0.4234
- Type
- CAD
- 2D
- 3D
- Est. shipping days
- All
- Within 4 working days

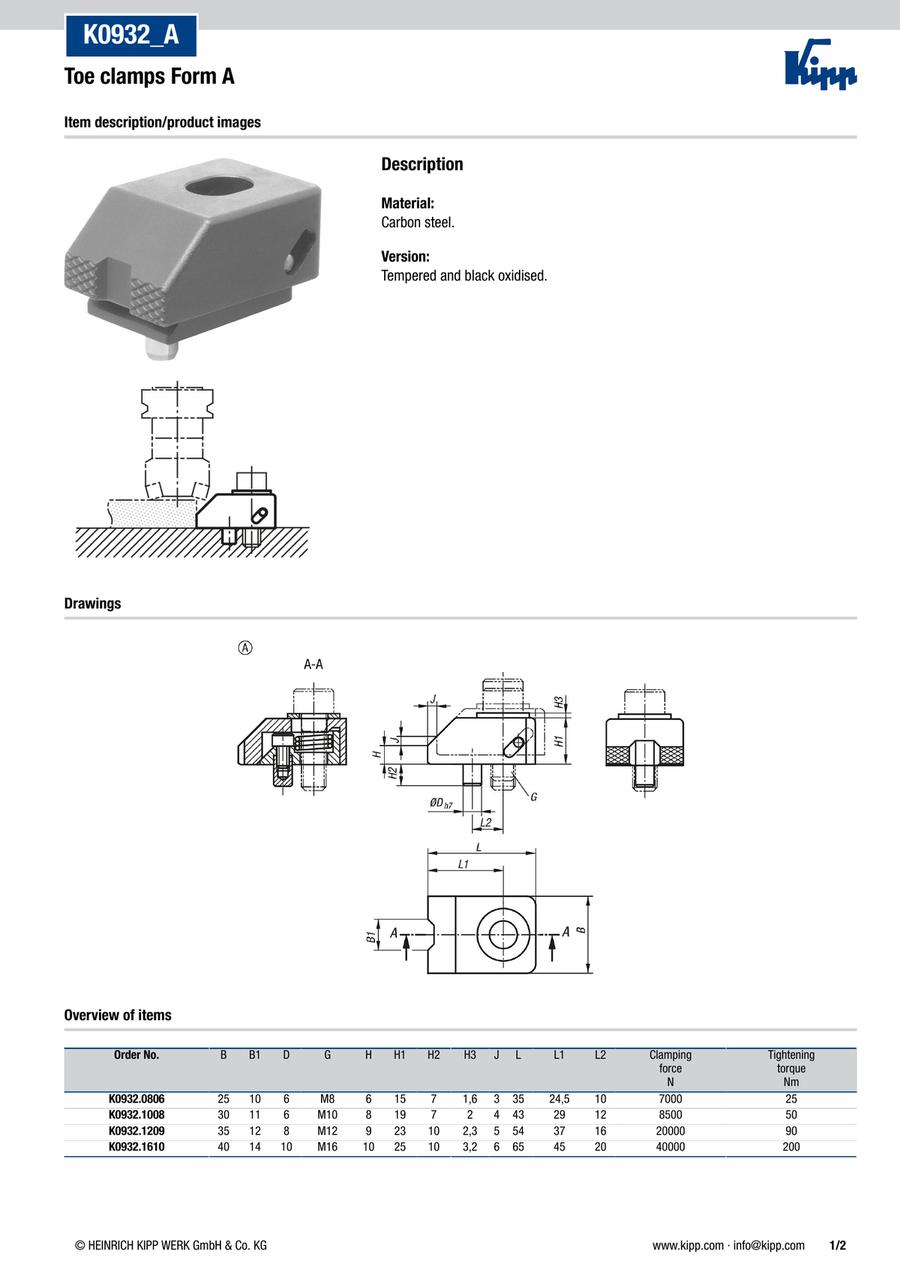

Toe clamps Form A (K0932)
Part number:
possible part numbers found.Part number list
Number of items
| Part number |
|---|
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
88.85 € ( 105.73 € ) | 4 working days |
104.16 € ( 123.95 € ) | 4 working days |
119.49 € ( 142.19 € ) | 4 working days |
148.22 € ( 176.38 € ) | 4 working days |
More Information
Basic information
· Workpiece clamping with positive down force
· Clamping jaws tempered and black oxidised
· Low height, no protruding edges
· Application sector: fixture construction
