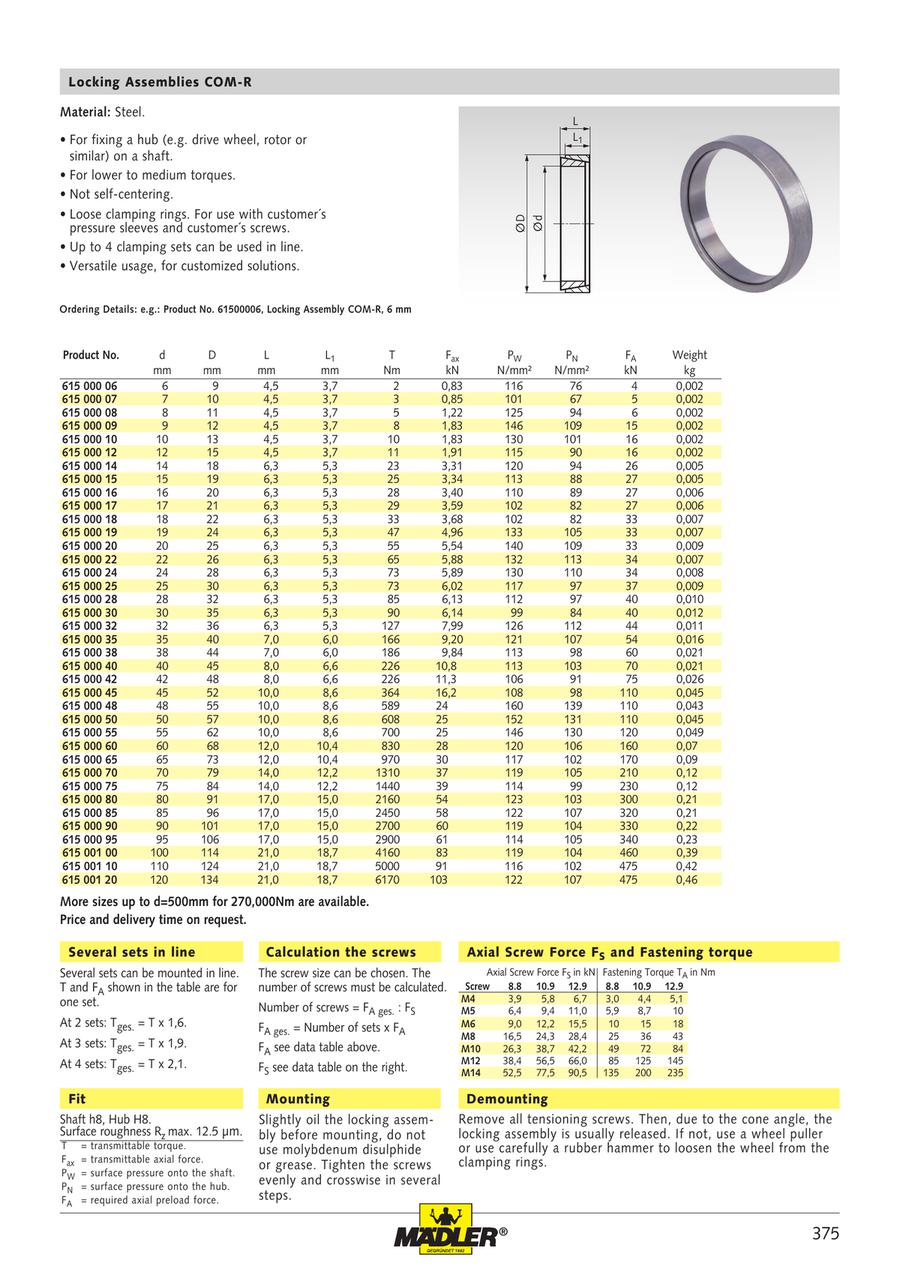

Locking Assemblies COM-R
- Volume Discount
• For fixing a hub (e.g. drive wheel, rotor or similar) on a shaft.
• For lower to medium torques.
• Not self-centering.
• Loose clamping rings. For use with customer's pressure sleeves and customer´s screws.
• Up to 4 clamping sets can be used in line.
• Versatile usage, for customized solutions.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Inner diameter d (mm) | Outer diameter D (mm) | L (mm) | Length L1 (mm) | Transmissible torque T (Nm) | Admissible axial force Fax (kN) | Shaft surface pressure PW (N/mm2) | Hub surface pressure PN (N/mm2) | FA (kN) | Weight (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
5.72 € | 1 | Available | 4 Days | 6 | 9 | 4.5 | 3.7 | 2 | 0.83 | 116 | 76 | 4 | 0.002 | |
5.72 € | 1 | Available | 4 Days | 7 | 10 | 4.5 | 3.7 | 3 | 0.85 | 101 | 67 | 5 | 0.002 | |
5.72 € | 1 | Available | 4 Days | 8 | 11 | 4.5 | 3.7 | 5 | 1.22 | 125 | 94 | 6 | 0.002 | |
5.81 € | 1 | Available | 4 Days | 9 | 12 | 4.5 | 3.7 | 8 | 1.83 | 146 | 109 | 15 | 0.002 | |
5.89 € | 1 | Available | 4 Days | 10 | 13 | 4.5 | 3.7 | 10 | 1.83 | 130 | 101 | 16 | 0.002 | |
5.89 € | 1 | Available | 4 Days | 12 | 15 | 4.5 | 3.7 | 11 | 1.91 | 115 | 90 | 16 | 0.002 | |
5.90 € | 1 | Available | 4 Days | 14 | 18 | 6.3 | 5.3 | 23 | 3.31 | 120 | 94 | 26 | 0.005 | |
5.90 € | 1 | Available | 4 Days | 15 | 19 | 6.3 | 5.3 | 25 | 3.34 | 113 | 88 | 27 | 0.005 | |
5.90 € | 1 | Available | 4 Days | 16 | 20 | 6.3 | 5.3 | 28 | 3.4 | 110 | 89 | 27 | 0.006 | |
6.10 € | 1 | Available | 4 Days | 17 | 21 | 6.3 | 5.3 | 29 | 3.59 | 102 | 82 | 27 | 0.006 | |
6.20 € | 1 | Available | 4 Days | 18 | 22 | 6.3 | 5.3 | 33 | 3.68 | 102 | 82 | 33 | 0.007 | |
6.28 € | 1 | Available | 4 Days | 19 | 24 | 6.3 | 5.3 | 47 | 4.96 | 133 | 105 | 33 | 0.007 | |
6.36 € | 1 | Available | 4 Days | 20 | 25 | 6.3 | 5.3 | 55 | 5.54 | 140 | 109 | 33 | 0.009 | |
6.76 € | 1 | Available | 4 Days | 22 | 26 | 6.3 | 5.3 | 65 | 5.88 | 132 | 113 | 34 | 0.007 | |
7.13 € | 1 | Available | 4 Days | 24 | 28 | 6.3 | 5.3 | 73 | 5.89 | 130 | 110 | 34 | 0.008 | |
7.13 € | 1 | Available | 4 Days | 25 | 30 | 6.3 | 5.3 | 73 | 6.02 | 117 | 97 | 37 | 0.009 | |
7.29 € | 1 | Available | 4 Days | 28 | 32 | 6.3 | 5.3 | 85 | 6.13 | 112 | 97 | 40 | 0.01 | |
7.40 € | 1 | Available | 4 Days | 30 | 35 | 6.3 | 5.3 | 90 | 6.14 | 99 | 84 | 40 | 0.012 | |
7.63 € | 1 | Available | 4 Days | 32 | 36 | 6.3 | 5.3 | 127 | 7.99 | 126 | 112 | 44 | 0.011 | |
7.56 € | 1 | Available | 4 Days | 35 | 40 | 7 | 6 | 166 | 9.2 | 121 | 107 | 54 | 0.016 | |
7.91 € | 1 | Available | 4 Days | 38 | 44 | 7 | 6 | 186 | 9.84 | 113 | 98 | 60 | 0.021 | |
8.15 € | 1 | Available | 4 Days | 40 | 45 | 8 | 6.6 | 226 | 10.8 | 113 | 103 | 70 | 0.021 | |
9.26 € | 1 | Available | 4 Days | 42 | 48 | 8 | 6.6 | 226 | 11.3 | 106 | 91 | 75 | 0.026 | |
10.30 € | 1 | Available | 4 Days | 45 | 52 | 10 | 8.6 | 364 | 16.2 | 108 | 98 | 110 | 0.045 | |
10.83 € | 1 | Available | 4 Days | 48 | 55 | 10 | 8.6 | 589 | 24 | 160 | 139 | 110 | 0.043 | |
10.83 € | 1 | Available | 4 Days | 50 | 57 | 10 | 8.6 | 608 | 25 | 152 | 131 | 110 | 0.045 | |
11.34 € | 1 | Available | 4 Days | 55 | 62 | 10 | 8.6 | 700 | 25 | 146 | 130 | 120 | 0.049 | |
11.48 € | 1 | Available | 4 Days | 60 | 68 | 12 | 10.4 | 830 | 28 | 120 | 106 | 160 | 0.07 | |
12.30 € | 1 | Available | 4 Days | 65 | 73 | 12 | 10.4 | 970 | 30 | 117 | 102 | 170 | 0.09 | |
12.49 € | 1 | Available | 4 Days | 70 | 79 | 14 | 12.2 | 1310 | 37 | 119 | 105 | 210 | 0.12 | |
13.74 € | 1 | Available | 4 Days | 75 | 84 | 14 | 12.2 | 1440 | 39 | 114 | 99 | 230 | 0.12 | |
16.90 € | 1 | Available | 4 Days | 80 | 91 | 17 | 15 | 2160 | 54 | 123 | 103 | 300 | 0.21 | |
16.42 € | 1 | Available | 4 Days | 85 | 96 | 17 | 15 | 2450 | 58 | 122 | 107 | 320 | 0.21 | |
18.01 € | 1 | Available | 4 Days | 90 | 101 | 17 | 15 | 2700 | 60 | 119 | 104 | 330 | 0.22 | |
18.98 € | 1 | Available | 4 Days | 95 | 106 | 17 | 15 | 2900 | 61 | 114 | 105 | 340 | 0.23 | |
27.30 € | 1 | Available | 4 Days | 100 | 114 | 21 | 18.7 | 4160 | 83 | 119 | 104 | 460 | 0.39 | |
30.90 € | 1 | Available | 4 Days | 110 | 124 | 21 | 18.7 | 5000 | 91 | 116 | 102 | 475 | 0.42 | |
34.30 € | 1 | Available | 4 Days | 120 | 134 | 21 | 18.7 | 6170 | 103 | 122 | 107 | 475 | 0.46 |
Loading...
Basic information
| Centering | Not Provided | Material | Steel | Surface | Blank |
|---|---|---|---|---|---|
| Type | COM-R | Design (shape) | Loose rings |
Configure
Basic Attributes
-
Inner diameter d(mm)
-
Outer diameter D(mm)
-
L(mm)
- 4.5
- 6.3
- 7
- 8
- 10
- 12
- 14
- 17
- 21
-
Length L1(mm)
- 3.7
- 5.3
- 6
- 6.6
- 8.6
- 10.4
- 12.2
- 15
- 18.7
-
Transmissible torque T(Nm)
-
Admissible axial force Fax(kN)
-
Shaft surface pressure PW(N/mm2)
-
Hub surface pressure PN(N/mm2)
-
FA(kN)
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
