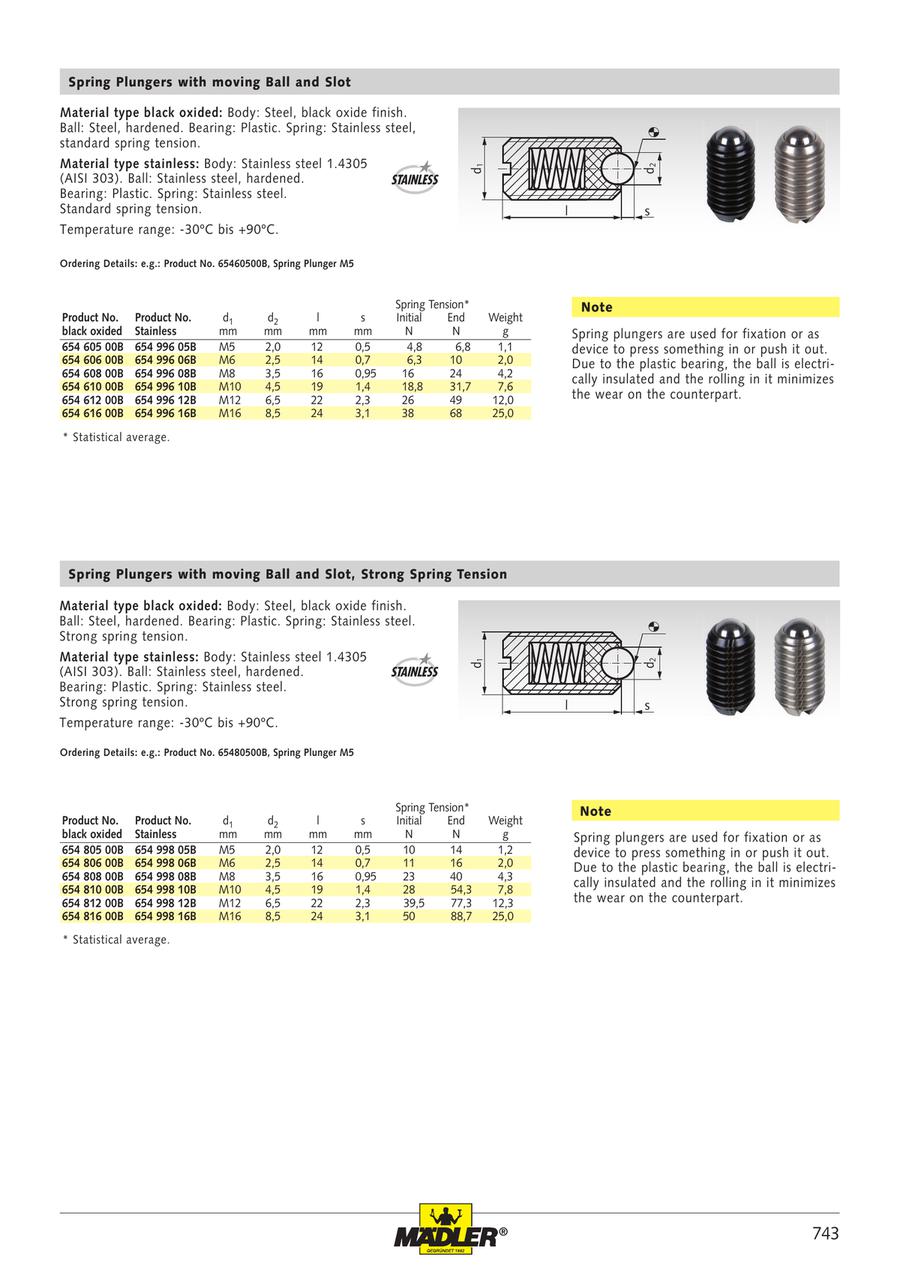

Spring Plungers with Moving Ball and Slot, Steel, Black Oxided

Spring Plungers with Moving Ball and Slot, Steel, Black Oxided

Part number:

Still undefined. 6 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    65460500B
    65460600B
    65460800B
    65461000B
    65461200B
    65461600B

    Initial Load

    (N)

    Thread size d1

    (mm)

    Ball diameter d2

    (mm)

    Length l

    (mm)

    Overhang of ball s

    (mm)

    Spring load end

    (N)

    Weight

    (g)

    		Minimum order quantity
    4.8
    M 5
    2
    12
    0.5
    6.8
    1.1
    1 pieces
    6.3
    M 6
    2.5
    14
    0.7
    10
    2
    1 pieces
    16
    M 8
    3.5
    16
    0.95
    24
    4.2
    1 pieces
    18.8
    M 10
    4.5
    19
    1.4
    31.7
    7.6
    1 pieces
    26
    M 12
    6.5
    22
    2.3
    49
    12
    1 pieces
    38
    M 16
    8.5
    24
    3.1
    68
    25
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    5.22 €
    ( 6.21 € )
    4 working days
    5.56 €
    ( 6.62 € )
    4 working days
    6.21 €
    ( 7.39 € )
    4 working days
    6.56 €
    ( 7.81 € )
    4 working days
    9.41 €
    ( 11.20 € )
    4 working days
    12.31 €
    ( 14.65 € )
    4 working days
  • 1

    • More Information

    Basic information

    Material:
    Body: Steel, black oxide finish. Ball: Steel, hardened.
    Bearing: Plastic. Spring: Stainless steel, standard spring tension.
    Temperature range: -30°C to +90°C.
    Note:
    Spring plungers are used for fixation or as device to press something in or push it out. Due to the plastic bearing, the ball is electrically insulated and the rolling in it minimizes the wear on the counterpart.
