Knurled screws DIN 464 high form, steel and stainless steel, inch (06090)

Configure

Material
- Steel
- Stainless Steel
Surface finish body
- Black oxidised
- Bright
D=Thread
D1=Outside diameter(mm)
- 16
- 20
- 24
- 30
- 36
D3(mm)
- 8
- 10
- 12
- 16
- 20
H=Height(mm)
- 9.5
- 11.5
- 15
- 18
- 23
K(mm)
- 3.5
- 4
- 5
- 6
- 8
L=thread length(mm)
- 10
- 16
- 20
- 25
PL Edelstahl
- No
- Yes
Est. shipping days
- All
- Within 4 working days

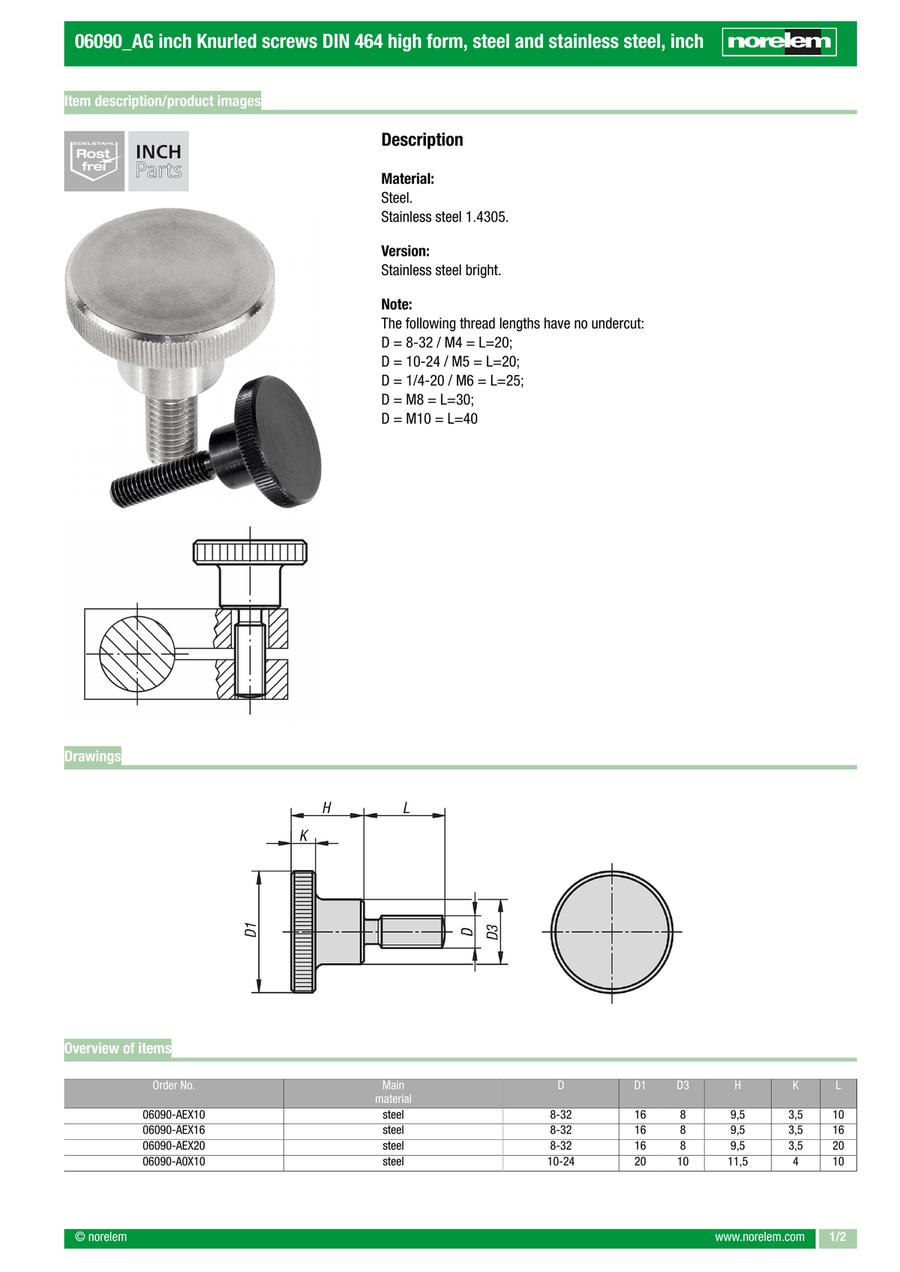

Knurled screws DIN 464 high form, steel and stainless steel, inch (06090)

Catalog

Part number:

Still undefined. 36 possible part numbers found.

Part number list
More Information
Catalog

Part number list

Number of items

Part number

Material

Surface finish body

D=Thread

D1=Outside diameter

(mm)

H=Height

(mm)

L=thread length

(mm)

PL Edelstahl

Weight (ERP)

(kg)

Minimum order quantity

Stainless Steel	Bright	10-24	20	10	11.5	4	10	Yes	0.0147	1 pieces
Stainless Steel	Bright	10-24	20	10	11.5	4	16	Yes	0.0152	1 pieces
Stainless Steel	Bright	10-24	20	10	11.5	4	20	Yes	0.0161	1 pieces
Steel	Black oxidised	10-24	20	10	11.5	4	10	No	0.0750	1 pieces
Steel	Black oxidised	10-24	20	10	11.5	4	16	No	0.0920	1 pieces
Steel	Black oxidised	10-24	20	10	11.5	4	20	No	0.1040	1 pieces
Steel	Black oxidised	10-32	20	10	11.5	4	10	No	0.0750	1 pieces
Steel	Black oxidised	10-32	20	10	11.5	4	16	No	0.0920	1 pieces
Steel	Black oxidised	10-32	20	10	11.5	4	20	No	0.1040	1 pieces
Steel	Black oxidised	1/4-20	24	12	15	5	10	No	0.1210	1 pieces
Steel	Black oxidised	1/4-20	24	12	15	5	16	No	0.1450	1 pieces
Steel	Black oxidised	1/4-20	24	12	15	5	20	No	0.1610	1 pieces
Steel	Black oxidised	1/4-20	24	12	15	5	25	No	0.1810	1 pieces
Steel	Black oxidised	5/16-18	30	16	18	6	16	No	0.2580	1 pieces
Steel	Black oxidised	5/16-18	30	16	18	6	20	No	0.2840	1 pieces
Steel	Black oxidised	5/16-18	30	16	18	6	25	No	0.3170	1 pieces
Steel	Black oxidised	3/8-16	36	20	23	8	20	No	0.4010	1 pieces
Steel	Black oxidised	3/8-16	36	20	23	8	25	No	0.4430	1 pieces
Stainless Steel	Bright	10-32	20	10	11.5	4	10	Yes	0.0270	1 pieces
Stainless Steel	Bright	10-32	20	10	11.5	4	16	Yes	0.0570	1 pieces
Stainless Steel	Bright	10-32	20	10	11.5	4	20	Yes	0.0160	1 pieces
Stainless Steel	Bright	1/4-20	24	12	15	5	10	Yes	0.0279	1 pieces
Stainless Steel	Bright	1/4-20	24	12	15	5	16	Yes	0.0289	1 pieces
Stainless Steel	Bright	1/4-20	24	12	15	5	20	Yes	0.0294	1 pieces
Stainless Steel	Bright	1/4-20	24	12	15	5	25	Yes	0.0306	1 pieces
Stainless Steel	Bright	5/16-18	30	16	18	6	16	Yes	0.0552	1 pieces
Stainless Steel	Bright	5/16-18	30	16	18	6	20	Yes	0.0558	1 pieces
Stainless Steel	Bright	5/16-18	30	16	18	6	25	Yes	0.0576	1 pieces
Stainless Steel	Bright	3/8-16	36	20	23	8	20	Yes	0.1059	1 pieces
Stainless Steel	Bright	3/8-16	36	20	23	8	25	Yes	0.1060	1 pieces
Stainless Steel	Bright	8-32	16	8	9.5	3.5	10	Yes	0.0102	1 pieces
Stainless Steel	Bright	8-32	16	8	9.5	3.5	16	Yes	0.0085	1 pieces
Stainless Steel	Bright	8-32	16	8	9.5	3.5	20	Yes	0.0096	1 pieces
Steel	Black oxidised	8-32	16	8	9.5	3.5	10	No	0.0079	1 pieces
Steel	Black oxidised	8-32	16	8	9.5	3.5	16	No	0.0083	1 pieces
Steel	Black oxidised	8-32	16	8	9.5	3.5	20	No	0.0640	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

4.22 € ( 5.02 € )	4 working days
4.57 € ( 5.44 € )	4 working days
5.02 € ( 5.97 € )	4 working days
3.53 € ( 4.20 € )	4 working days
3.73 € ( 4.44 € )	4 working days
4.11 € ( 4.89 € )	4 working days
3.53 € ( 4.20 € )	4 working days
3.73 € ( 4.44 € )	4 working days
4.11 € ( 4.89 € )	4 working days
4.47 € ( 5.32 € )	4 working days
4.95 € ( 5.89 € )	4 working days
5.42 € ( 6.45 € )	4 working days
5.87 € ( 6.99 € )	4 working days
6.90 € ( 8.21 € )	4 working days
7.47 € ( 8.89 € )	4 working days
8.31 € ( 9.89 € )	4 working days
10.63 € ( 12.65 € )	4 working days
11.58 € ( 13.78 € )	4 working days
4.22 € ( 5.02 € )	4 working days
4.57 € ( 5.44 € )	4 working days
5.02 € ( 5.97 € )	4 working days
5.46 € ( 6.50 € )	4 working days
5.96 € ( 7.09 € )	4 working days
6.57 € ( 7.82 € )	4 working days
7.12 € ( 8.47 € )	4 working days
8.47 € ( 10.08 € )	4 working days
9.09 € ( 10.82 € )	4 working days
9.96 € ( 11.85 € )	4 working days
12.85 € ( 15.29 € )	4 working days
13.98 € ( 16.64 € )	4 working days
3.53 € ( 4.20 € )	4 working days
3.93 € ( 4.68 € )	4 working days
4.46 € ( 5.31 € )	4 working days
2.83 € ( 3.37 € )	4 working days
3.27 € ( 3.89 € )	4 working days
3.70 € ( 4.40 € )	4 working days

More Information

Basic information

Basic information

· Suitable for manual positioning and clamping

· Application fields: machine, plant and fixture construction, toolmaking

· Advantage: knurled nut is tightened and loosened with tools

· Material: free-cutting steel or stainless steel 1.4305

· Different thread sizes
