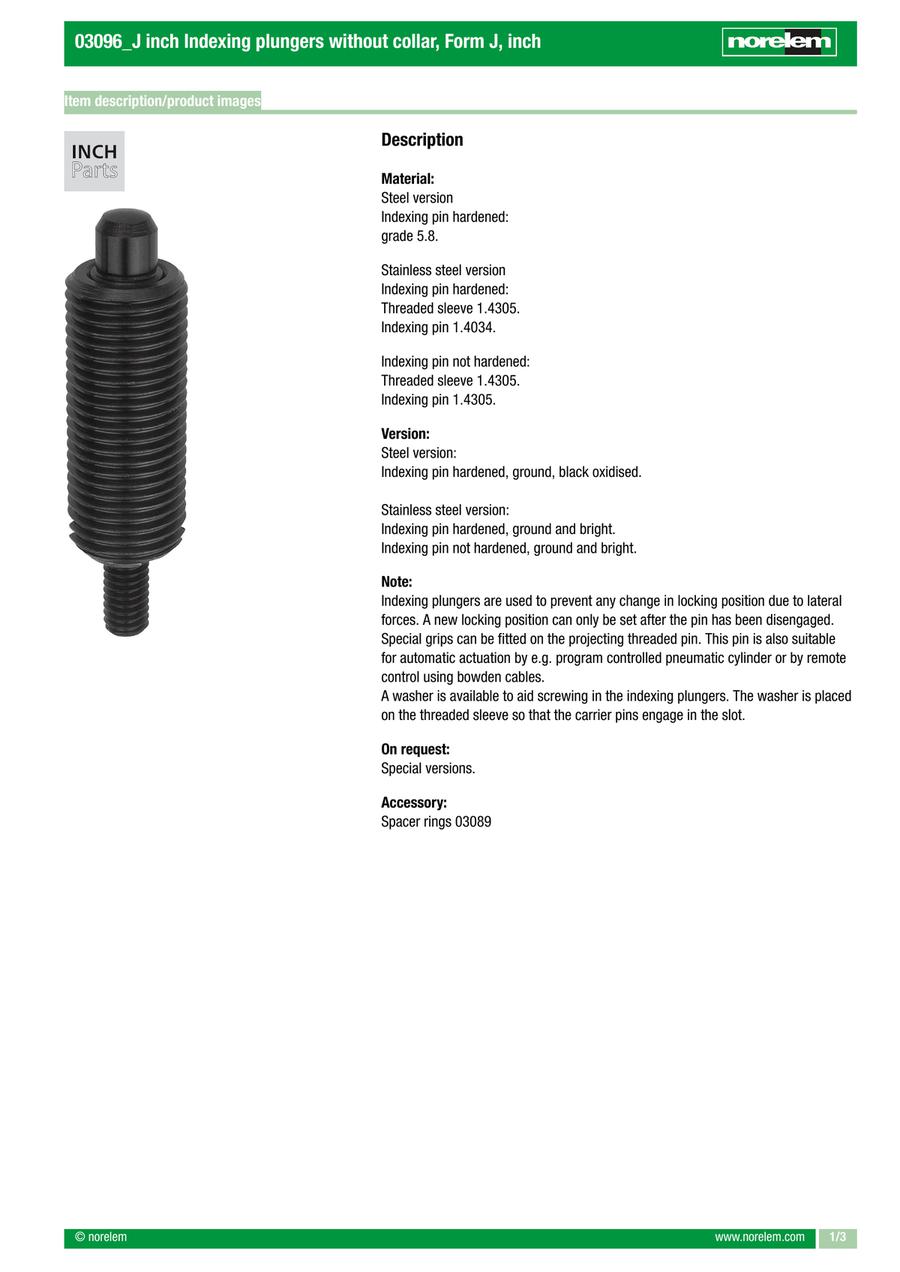

Indexing plunger without collar, form J with threaded pin without locknut, steel or stainless steel, inch (03096)
· Application sectors: machine, instrument and fixture construction, measuring technology, domestic use
· High stability
· Threaded pins enable the indexing plunger to be operated
· Material: steel or stainless steel
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Main material | Steel code | Grade | Surface finish body | Size | D1=Thread | Order No. screw-in washer | Spring force final pressure F2 approx. (N) | Spring force initial pressure F1 approx. (N) | Fx30° | L=Length | D=pin diameter | L2 | D2 | Travel S | L1 | PL Edelstahl | Weight (ERP) (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
17.07 € | 1 | 4 Days | Stainless steel | 1.4034 | - | hardened | 0 | 5/16-24 | 03094-90 | 12 | 6 | 1 | 32 | 4 | 7 | M3 | 4 | 21 | yes | 0.0010 | ||
14.61 € | 1 | 4 Days | Stainless steel | 1.4034 | - | hardened | 1 | 3/8-24 | 03094-91 | 12 | 5 | 1.3 | 37 | 5 | 8 | M4 | 5 | 24 | yes | 0.1199 | ||
17.57 € | 1 | 4 Days | Stainless steel | 1.4034 | - | hardened | 2 | 1/2-13 | 03094-92 | 14 | 6 | 1.8 | 42 | 6 | 8 | M6 | 6 | 28 | yes | 0.0191 | ||
19.87 € | 1 | 4 Days | Stainless steel | 1.4034 | - | hardened | 3 | 5/8-11 | 03094-93 | 35 | 15 | 2.3 | 56 | 8 | 12 | M8 | 8 | 36 | yes | 0.0481 | ||
31.28 € | 1 | 4 Days | Stainless steel | 1.4034 | - | hardened | 4 | 3/4-10 | 03094-94 | 34 | 15 | 2.8 | 62 | 10 | 12 | M8 | 10 | 40 | yes | 0.0884 | ||
34.43 € | 1 | 4 Days | Stainless steel | 1.4034 | - | hardened | 4 | 3/4-16 | 03094-94 | 39 | 15 | 2.8 | 66 | 12 | 12 | M8 | 12 | 42 | yes | 0.0885 | ||
39.11 € | 1 | 4 Days | Stainless steel | 1.4034 | - | hardened | 5 | 1-8 | 03094-95 | 46 | 20 | 3.2 | 80 | 16 | 14 | M10 | 16 | 50 | yes | 0.1462 | ||
17.91 € | 1 | 4 Days | Stainless steel | 1.4034 | - | hardened | 9 | 1/4-28 | 03094-99 | 10 | 4.5 | 0.8 | 24 | 3 | 3.5 | M2 | 3.5 | 17 | yes | 0.0026 | ||
9.49 € | 1 | 4 Days | Steel | - | 5.8 | hardened | 0 | 5/16-24 | 03094-90 | 12 | 6 | 1 | 32 | 4 | 7 | M3 | 4 | 21 | no | 0.0061 | ||
17.07 € | 1 | 4 Days | Stainless steel | 1.4305 | - | not hardened | 0 | 5/16-24 | 03094-90 | 12 | 6 | 1 | 32 | 4 | 7 | M3 | 4 | 21 | yes | 0.0083 | ||
9.05 € | 1 | 4 Days | Steel | - | 5.8 | hardened | 1 | 3/8-24 | 03094-91 | 12 | 5 | 1.3 | 37 | 5 | 8 | M4 | 5 | 24 | no | 0.0120 | ||
14.61 € | 1 | 4 Days | Stainless steel | 1.4305 | - | not hardened | 1 | 3/8-24 | 03094-91 | 12 | 5 | 1.3 | 37 | 5 | 8 | M4 | 5 | 24 | yes | 0.0120 | ||
17.57 € | 1 | 4 Days | Stainless steel | 1.4305 | - | not hardened | 2 | 1/2-13 | 03094-92 | 14 | 6 | 1.8 | 42 | 6 | 8 | M6 | 6 | 28 | yes | 0.0190 | ||
19.87 € | 1 | 4 Days | Stainless steel | 1.4305 | - | not hardened | 3 | 5/8-11 | 03094-93 | 35 | 15 | 2.3 | 56 | 8 | 12 | M8 | 8 | 36 | yes | 0.0480 | ||
31.28 € | 1 | 4 Days | Stainless steel | 1.4305 | - | not hardened | 4 | 3/4-10 | 03094-94 | 34 | 15 | 2.8 | 62 | 10 | 12 | M8 | 10 | 40 | yes | 0.0850 | ||
34.43 € | 1 | 4 Days | Stainless steel | 1.4305 | - | not hardened | 4 | 3/4-16 | 03094-94 | 39 | 15 | 2.8 | 66 | 12 | 12 | M8 | 12 | 42 | yes | 0.9828 | ||
39.11 € | 1 | 4 Days | Stainless steel | 1.4305 | - | not hardened | 5 | 1-8 | 03094-95 | 46 | 20 | 3.2 | 80 | 16 | 14 | M10 | 16 | 50 | yes | 0.1476 | ||
17.91 € | 1 | 4 Days | Stainless steel | 1.4305 | - | not hardened | 9 | 1/4-28 | 03094-99 | 10 | 4.5 | 0.8 | 24 | 3 | 3.5 | M2 | 3.5 | 17 | yes | 0.0026 | ||
9.72 € | 1 | 4 Days | Steel | - | 5.8 | hardened | 2 | 1/2-13 | 03094-92 | 14 | 6 | 1.8 | 42 | 6 | 8 | M6 | 6 | 28 | no | 0.0192 | ||
10.46 € | 1 | 4 Days | Steel | - | 5.8 | hardened | 3 | 5/8-11 | 03094-93 | 35 | 15 | 2.3 | 56 | 8 | 12 | M8 | 8 | 36 | no | 0.0485 | ||
16.38 € | 1 | 4 Days | Steel | - | 5.8 | hardened | 4 | 3/4-10 | 03094-94 | 34 | 15 | 2.8 | 62 | 10 | 12 | M8 | 10 | 40 | no | 0.0886 | ||
18.04 € | 1 | 4 Days | Steel | - | 5.8 | hardened | 4 | 3/4-16 | 03094-94 | 39 | 15 | 2.8 | 66 | 12 | 12 | M8 | 12 | 42 | no | 0.0882 | ||
20.47 € | 1 | 4 Days | Steel | - | 5.8 | hardened | 5 | 1-8 | 03094-95 | 46 | 20 | 3.2 | 80 | 16 | 14 | M10 | 16 | 50 | no | 0.1458 | ||
9.98 € | 1 | 4 Days | Steel | - | 5.8 | hardened | 9 | 1/4-28 | 03094-99 | 10 | 4.5 | 0.8 | 24 | 3 | 3.5 | M2 | 3.5 | 17 | no | 0.0026 |
Loading...
Basic information
| Form | J | Locknut | without locknut | Version 2 | with threaded pin |
|---|---|---|---|---|---|
| Version 1 | without locking slot | Item | Indexing Plunger | Product type | without collar |
| RoHS | yes |
