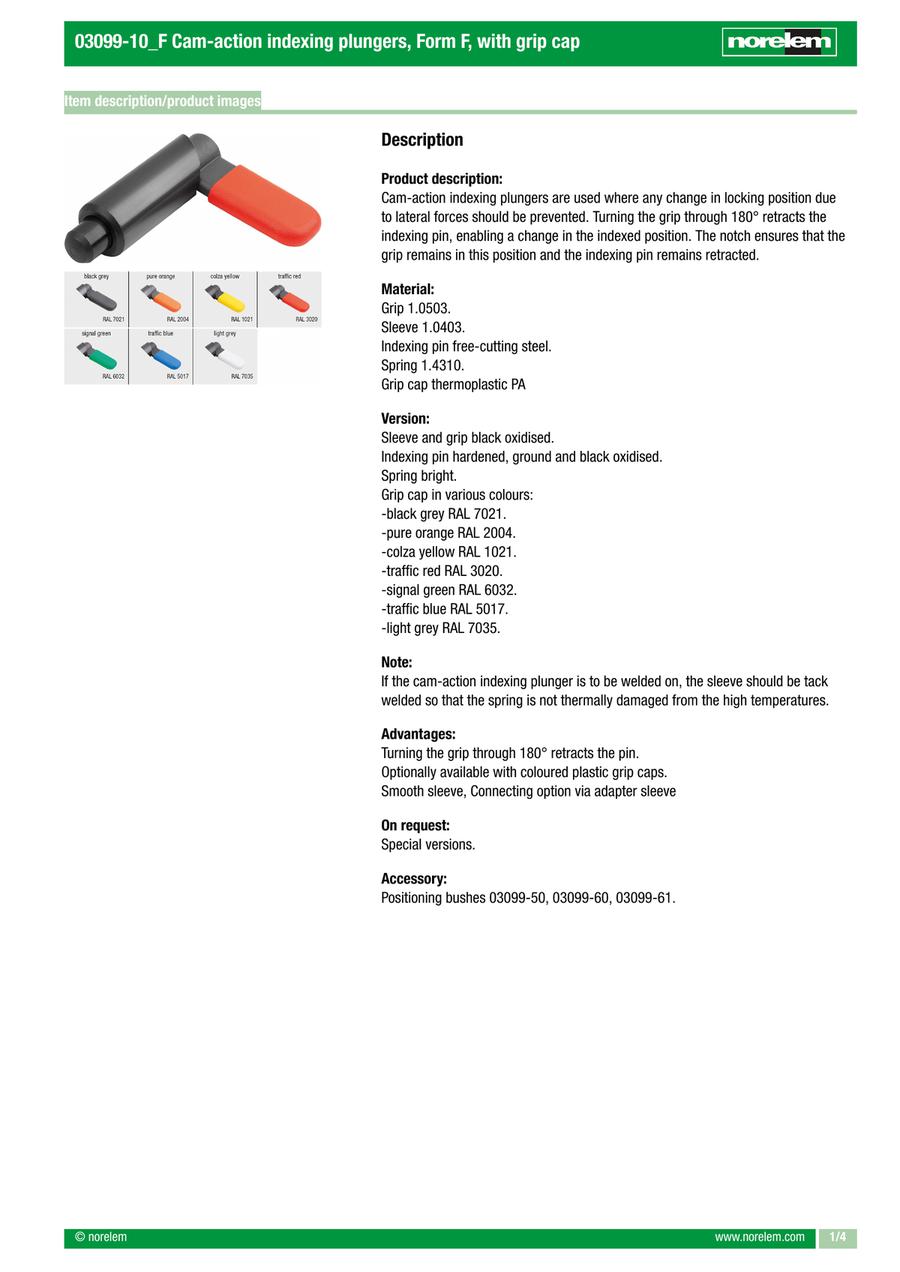

Cam-action indexing plungers, Form F, with grip cap (03099-10)
· Optionally available with coloured plastic grip caps
· Smooth sleeve, Connecting option via adapter sleeve
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Component colour | B (mm) | B1 (mm) | D=locking pin diameter (mm) | D1 | Fx30° (mm) | H (mm) | L (mm) | L1=Handle length (mm) | Spring force final pressure F2 approx. (N) | Spring force initial pressure F1 approx. (N) | Weight (ERP) (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
15.37 € | 1 | 4 Days | Black grey RAL 7021 | 10.9 | 4.9 | 4 | 10 | 1 | 6 | 39.5 | 26.3 | 14 | 8 | 0.0200 | ||
15.37 € | 1 | 4 Days | Colza yellow RAL 1021 | 10.9 | 4.9 | 4 | 10 | 1 | 6 | 39.5 | 26.3 | 14 | 8 | 0.0200 | ||
15.37 € | 1 | 4 Days | Orange RAL 2004 | 10.9 | 4.9 | 4 | 10 | 1 | 6 | 39.5 | 26.3 | 14 | 8 | 0.0200 | ||
15.37 € | 1 | 4 Days | Traffic red RAL 3020 | 10.9 | 4.9 | 4 | 10 | 1 | 6 | 39.5 | 26.3 | 14 | 8 | 0.0200 | ||
15.37 € | 1 | 4 Days | Signal green RAL 6032 | 10.9 | 4.9 | 4 | 10 | 1 | 6 | 39.5 | 26.3 | 14 | 8 | 0.0200 | ||
15.37 € | 1 | 4 Days | Traffic blue RAL 5017 | 10.9 | 4.9 | 4 | 10 | 1 | 6 | 39.5 | 26.3 | 14 | 8 | 0.0200 | ||
15.37 € | 1 | 4 Days | Light grey RAL 7035 | 10.9 | 4.9 | 4 | 10 | 1 | 6 | 39.5 | 26.3 | 14 | 8 | 0.0200 | ||
15.37 € | 1 | 4 Days | Black grey RAL 7021 | 10.9 | 4.9 | 5 | 10 | 1.3 | 6 | 39.5 | 26.3 | 14 | 8 | 0.0200 | ||
15.69 € | 1 | 4 Days | Black grey RAL 7021 | 12.9 | 5.7 | 5 | 12 | 1.3 | 8 | 48.4 | 31.1 | 14 | 8 | 0.0330 | ||
15.37 € | 1 | 4 Days | Colza yellow RAL 1021 | 10.9 | 4.9 | 5 | 10 | 1.3 | 6 | 39.5 | 26.3 | 14 | 8 | 0.0200 | ||
15.37 € | 1 | 4 Days | Orange RAL 2004 | 10.9 | 4.9 | 5 | 10 | 1.3 | 6 | 39.5 | 26.3 | 14 | 8 | 0.0200 | ||
15.37 € | 1 | 4 Days | Traffic red RAL 3020 | 10.9 | 4.9 | 5 | 10 | 1.3 | 6 | 39.5 | 26.3 | 14 | 8 | 0.0200 | ||
15.37 € | 1 | 4 Days | Signal green RAL 6032 | 10.9 | 4.9 | 5 | 10 | 1.3 | 6 | 39.5 | 26.3 | 14 | 8 | 0.0200 | ||
15.37 € | 1 | 4 Days | Traffic blue RAL 5017 | 10.9 | 4.9 | 5 | 10 | 1.3 | 6 | 39.5 | 26.3 | 14 | 8 | 0.0200 | ||
15.37 € | 1 | 4 Days | Light grey RAL 7035 | 10.9 | 4.9 | 5 | 10 | 1.3 | 6 | 39.5 | 26.3 | 14 | 8 | 0.0200 | ||
15.69 € | 1 | 4 Days | Colza yellow RAL 1021 | 12.9 | 5.7 | 5 | 12 | 1.3 | 8 | 48.4 | 31.1 | 14 | 8 | 0.0330 | ||
15.69 € | 1 | 4 Days | Orange RAL 2004 | 12.9 | 5.7 | 5 | 12 | 1.3 | 8 | 48.4 | 31.1 | 14 | 8 | 0.0330 | ||
15.69 € | 1 | 4 Days | Traffic red RAL 3020 | 12.9 | 5.7 | 5 | 12 | 1.3 | 8 | 48.4 | 31.1 | 14 | 8 | 0.0330 | ||
15.69 € | 1 | 4 Days | Signal green RAL 6032 | 12.9 | 5.7 | 5 | 12 | 1.3 | 8 | 48.4 | 31.1 | 14 | 8 | 0.0330 | ||
15.69 € | 1 | 4 Days | Traffic blue RAL 5017 | 12.9 | 5.7 | 5 | 12 | 1.3 | 8 | 48.4 | 31.1 | 14 | 8 | 0.0330 | ||
15.69 € | 1 | 4 Days | Light grey RAL 7035 | 12.9 | 5.7 | 5 | 12 | 1.3 | 8 | 48.4 | 31.1 | 14 | 8 | 0.0330 | ||
15.37 € | 1 | 4 Days | Black grey RAL 7021 | 10.9 | 4.9 | 6 | 10 | 1.8 | 6 | 39.5 | 26.3 | 14 | 8 | 0.0210 | ||
15.69 € | 1 | 4 Days | Black grey RAL 7021 | 12.9 | 5.7 | 6 | 12 | 1.8 | 8 | 48.4 | 31.1 | 14 | 8 | 0.0340 | ||
18.56 € | 1 | 4 Days | Black grey RAL 7021 | 16.6 | 7 | 6 | 16 | 1.8 | 10 | 62.3 | 41.5 | 35 | 15 | 0.0790 | ||
15.37 € | 1 | 4 Days | Colza yellow RAL 1021 | 10.9 | 4.9 | 6 | 10 | 1.8 | 6 | 39.5 | 26.3 | 14 | 8 | 0.0210 | ||
15.37 € | 1 | 4 Days | Orange RAL 2004 | 10.9 | 4.9 | 6 | 10 | 1.8 | 6 | 39.5 | 26.3 | 14 | 8 | 0.0210 | ||
15.37 € | 1 | 4 Days | Traffic red RAL 3020 | 10.9 | 4.9 | 6 | 10 | 1.8 | 6 | 39.5 | 26.3 | 14 | 8 | 0.0210 | ||
15.37 € | 1 | 4 Days | Signal green RAL 6032 | 10.9 | 4.9 | 6 | 10 | 1.8 | 6 | 39.5 | 26.3 | 14 | 8 | 0.0210 | ||
15.37 € | 1 | 4 Days | Traffic blue RAL 5017 | 10.9 | 4.9 | 6 | 10 | 1.8 | 6 | 39.5 | 26.3 | 14 | 8 | 0.0210 | ||
15.37 € | 1 | 4 Days | Light grey RAL 7035 | 10.9 | 4.9 | 6 | 10 | 1.8 | 6 | 39.5 | 26.3 | 14 | 8 | 0.0210 | ||
15.69 € | 1 | 4 Days | Colza yellow RAL 1021 | 12.9 | 5.7 | 6 | 12 | 1.8 | 8 | 48.4 | 31.1 | 14 | 8 | 0.0340 | ||
15.69 € | 1 | 4 Days | Orange RAL 2004 | 12.9 | 5.7 | 6 | 12 | 1.8 | 8 | 48.4 | 31.1 | 14 | 8 | 0.0340 | ||
15.69 € | 1 | 4 Days | Traffic red RAL 3020 | 12.9 | 5.7 | 6 | 12 | 1.8 | 8 | 48.4 | 31.1 | 14 | 8 | 0.0340 | ||
15.69 € | 1 | 4 Days | Signal green RAL 6032 | 12.9 | 5.7 | 6 | 12 | 1.8 | 8 | 48.4 | 31.1 | 14 | 8 | 0.0340 | ||
15.69 € | 1 | 4 Days | Traffic blue RAL 5017 | 12.9 | 5.7 | 6 | 12 | 1.8 | 8 | 48.4 | 31.1 | 14 | 8 | 0.0340 | ||
15.69 € | 1 | 4 Days | Light grey RAL 7035 | 12.9 | 5.7 | 6 | 12 | 1.8 | 8 | 48.4 | 31.1 | 14 | 8 | 0.0340 | ||
18.56 € | 1 | 4 Days | Colza yellow RAL 1021 | 16.6 | 7 | 6 | 16 | 1.8 | 10 | 62.3 | 41.5 | 35 | 15 | 0.0790 | ||
18.56 € | 1 | 4 Days | Orange RAL 2004 | 16.6 | 7 | 6 | 16 | 1.8 | 10 | 62.3 | 41.5 | 35 | 15 | 0.0790 | ||
18.56 € | 1 | 4 Days | Traffic red RAL 3020 | 16.6 | 7 | 6 | 16 | 1.8 | 10 | 62.3 | 41.5 | 35 | 15 | 0.0790 | ||
18.56 € | 1 | 4 Days | Signal green RAL 6032 | 16.6 | 7 | 6 | 16 | 1.8 | 10 | 62.3 | 41.5 | 35 | 15 | 0.0790 | ||
18.56 € | 1 | 4 Days | Traffic blue RAL 5017 | 16.6 | 7 | 6 | 16 | 1.8 | 10 | 62.3 | 41.5 | 35 | 15 | 0.0790 | ||
18.56 € | 1 | 4 Days | Light grey RAL 7035 | 16.6 | 7 | 6 | 16 | 1.8 | 10 | 62.3 | 41.5 | 35 | 15 | 0.0790 | ||
15.69 € | 1 | 4 Days | Black grey RAL 7021 | 12.9 | 5.7 | 8 | 12 | 2.3 | 8 | 48.4 | 31.1 | 14 | 8 | 0.0350 | ||
18.56 € | 1 | 4 Days | Black grey RAL 7021 | 16.6 | 7 | 8 | 16 | 2.3 | 10 | 62.3 | 41.5 | 35 | 15 | 0.0800 | ||
21.51 € | 1 | 4 Days | Black grey RAL 7021 | 20.5 | 8.5 | 8 | 20 | 2.3 | 12 | 72.3 | 51.3 | 60 | 20 | 0.1470 | ||
15.69 € | 1 | 4 Days | Colza yellow RAL 1021 | 12.9 | 5.7 | 8 | 12 | 2.3 | 8 | 48.4 | 31.1 | 14 | 8 | 0.0350 | ||
15.69 € | 1 | 4 Days | Orange RAL 2004 | 12.9 | 5.7 | 8 | 12 | 2.3 | 8 | 48.4 | 31.1 | 14 | 8 | 0.0350 | ||
15.69 € | 1 | 4 Days | Traffic red RAL 3020 | 12.9 | 5.7 | 8 | 12 | 2.3 | 8 | 48.4 | 31.1 | 14 | 8 | 0.0350 | ||
15.69 € | 1 | 4 Days | Signal green RAL 6032 | 12.9 | 5.7 | 8 | 12 | 2.3 | 8 | 48.4 | 31.1 | 14 | 8 | 0.0350 | ||
15.69 € | 1 | 4 Days | Traffic blue RAL 5017 | 12.9 | 5.7 | 8 | 12 | 2.3 | 8 | 48.4 | 31.1 | 14 | 8 | 0.0350 | ||
15.69 € | 1 | 4 Days | Light grey RAL 7035 | 12.9 | 5.7 | 8 | 12 | 2.3 | 8 | 48.4 | 31.1 | 14 | 8 | 0.0350 | ||
18.56 € | 1 | 4 Days | Colza yellow RAL 1021 | 16.6 | 7 | 8 | 16 | 2.3 | 10 | 62.3 | 41.5 | 35 | 15 | 0.0800 | ||
18.56 € | 1 | 4 Days | Orange RAL 2004 | 16.6 | 7 | 8 | 16 | 2.3 | 10 | 62.3 | 41.5 | 35 | 15 | 0.0800 | ||
18.56 € | 1 | 4 Days | Traffic red RAL 3020 | 16.6 | 7 | 8 | 16 | 2.3 | 10 | 62.3 | 41.5 | 35 | 15 | 0.0800 | ||
18.56 € | 1 | 4 Days | Signal green RAL 6032 | 16.6 | 7 | 8 | 16 | 2.3 | 10 | 62.3 | 41.5 | 35 | 15 | 0.0800 | ||
18.56 € | 1 | 4 Days | Traffic blue RAL 5017 | 16.6 | 7 | 8 | 16 | 2.3 | 10 | 62.3 | 41.5 | 35 | 15 | 0.0800 | ||
18.56 € | 1 | 4 Days | Light grey RAL 7035 | 16.6 | 7 | 8 | 16 | 2.3 | 10 | 62.3 | 41.5 | 35 | 15 | 0.0800 | ||
21.51 € | 1 | 4 Days | Colza yellow RAL 1021 | 20.5 | 8.5 | 8 | 20 | 2.3 | 12 | 72.3 | 51.3 | 60 | 20 | 0.1470 | ||
21.51 € | 1 | 4 Days | Orange RAL 2004 | 20.5 | 8.5 | 8 | 20 | 2.3 | 12 | 72.3 | 51.3 | 60 | 20 | 0.1470 | ||
21.51 € | 1 | 4 Days | Traffic red RAL 3020 | 20.5 | 8.5 | 8 | 20 | 2.3 | 12 | 72.3 | 51.3 | 60 | 20 | 0.1470 |
Loading...
Basic information
| Type | Lever Type | Body Material | Steel | Surface finish body | Black oxidised |
|---|---|---|---|---|---|
| Component material | Thermoplastic | Item | Cam-action indexing plungers | Form | F |
| Form definition | With smooth sleeve and cap | Version 1 | Smooth version | RoHS | Yes |
| PL Edelstahl | No |
Configure
Basic Attributes
-
Component colour
-
B(mm)
-
B1(mm)
-
D=locking pin diameter(mm)
- 4
- 5
- 6
- 8
- 10
- 12
-
D1
-
Fx30°(mm)
-
H(mm)
- 6
- 8
- 10
- 12
-
L(mm)
-
L1=Handle length(mm)
-
Spring force final pressure F2 approx.(N)
-
Spring force initial pressure F1 approx.(N)
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
