Configure
- Travel S(mm)
- 5
- 6
- 8
- 10
- Length L(mm)
- 39
- 44
- 56.9
- 62.9
- Size
- 1
- 2
- 3
- 4
- A=Handle length(mm)
- 31.6
- 31.7
- 53.4
- 55.5
- A1=Handle length(mm)
- 41.7
- 67.8
- B=Width(mm)
- 17.9
- 26.9
- B1(mm)
- 12.9
- 19.4
- D=pin diameter(mm)
- 5
- 6
- 8
- 10
- Fx30°(mm)
- 1.3
- 1.8
- 2.3
- 2.8
- L1(mm)
- 17
- 20
- 26
- 28
- L2(mm)
- 7
- 8
- 10
- 12
- L3(mm)
- 15
- 17
- 23
- 25
- SW1(mm)
- 13
- 14
- 19
- 22
- SW2(mm)
- 17
- 19
- 24
- 30
- Spring force final pressure F2 approx.(N)
- 12
- 14
- 34
- 35
- Spring force initial pressure F1 approx.(N)
- 5
- 6
- 15
- Est. shipping days
- All
- Within 4 working days

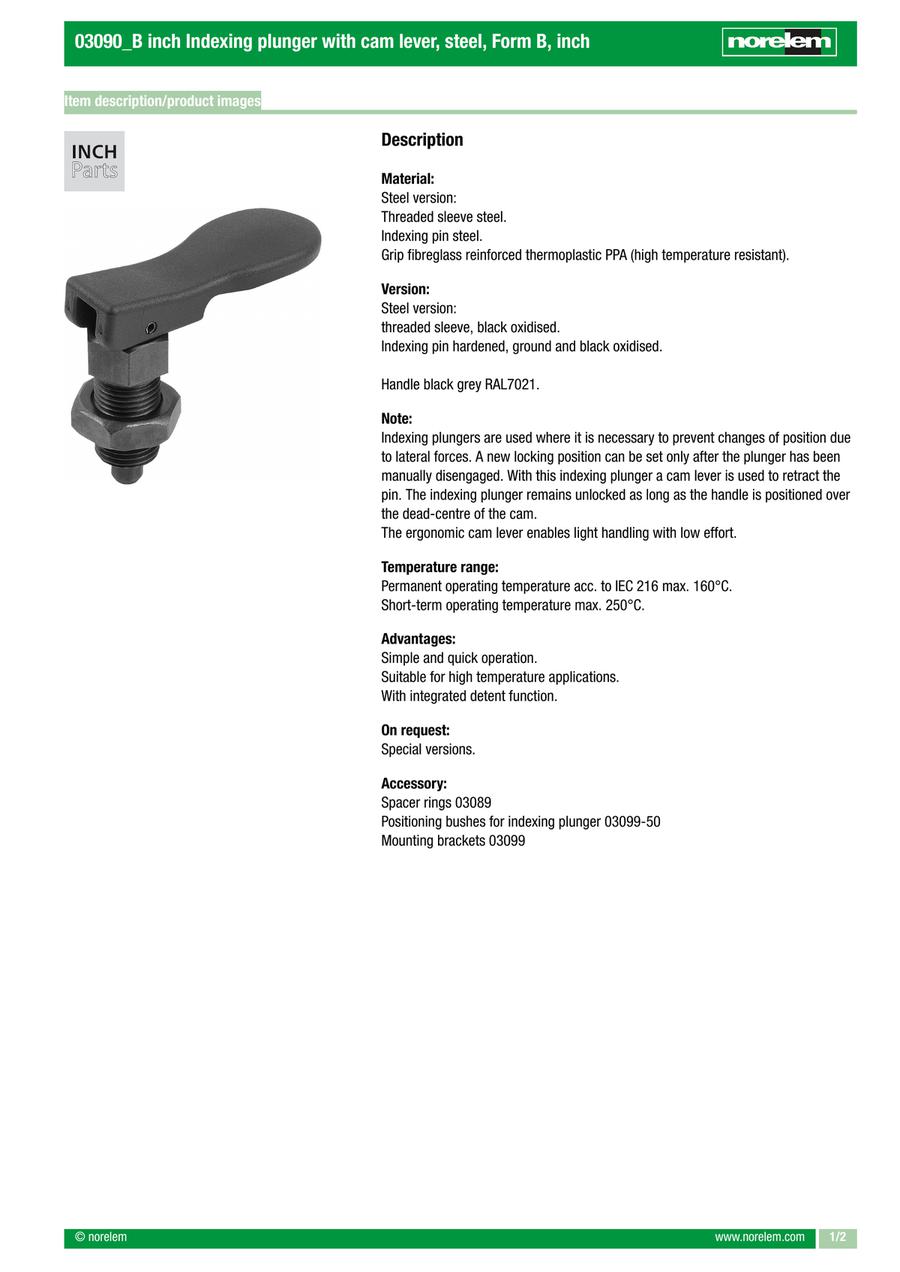

Indexing plunger with cam lever, steel, Form B, inch (03090)
Part number:
possible part numbers found.Part number list
Number of items
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
16.44 € ( 19.56 € ) | 4 working days |
18.30 € ( 21.78 € ) | 4 working days |
22.05 € ( 26.24 € ) | 4 working days |
35.66 € ( 42.44 € ) | 4 working days |
More Information
Basic information
· Simple and quick operation
· Suitable for high temperature applications
· With integrated detent function
