Configure
- Body Material
- Travel S(mm)
- 4
- 5
- 6
- 8
- 10
- Length L(mm)
- 29.5
- 34.5
- 41.7
- 54
- 61
- Steel code
- 1.4034
- 1.4305
- Grade
- 5.8
- Surface finish body
- Size
- 0
- 1
- 2
- 3
- 4
- D=pin diameter(mm)
- 4
- 5
- 6
- 8
- 10
- D2(mm)
- 18
- 21
- 25
- 33
- Fx30°(mm)
- 1
- 1.3
- 1.8
- 2.3
- 2.8
- L1(mm)
- 6
- 8
- 10
- 12
- 15
- L2(mm)
- 6
- 7
- 8
- 10
- 12
- SW1(mm)
- 10
- 13
- 14
- 19
- 22
- Spring force final pressure F2 approx.(N)
- 12
- 14
- 28
- 32
- Spring force initial pressure F1 approx.(N)
- 5
- 6
- 14
- 15
- Est. shipping days
- All
- Within 4 working days

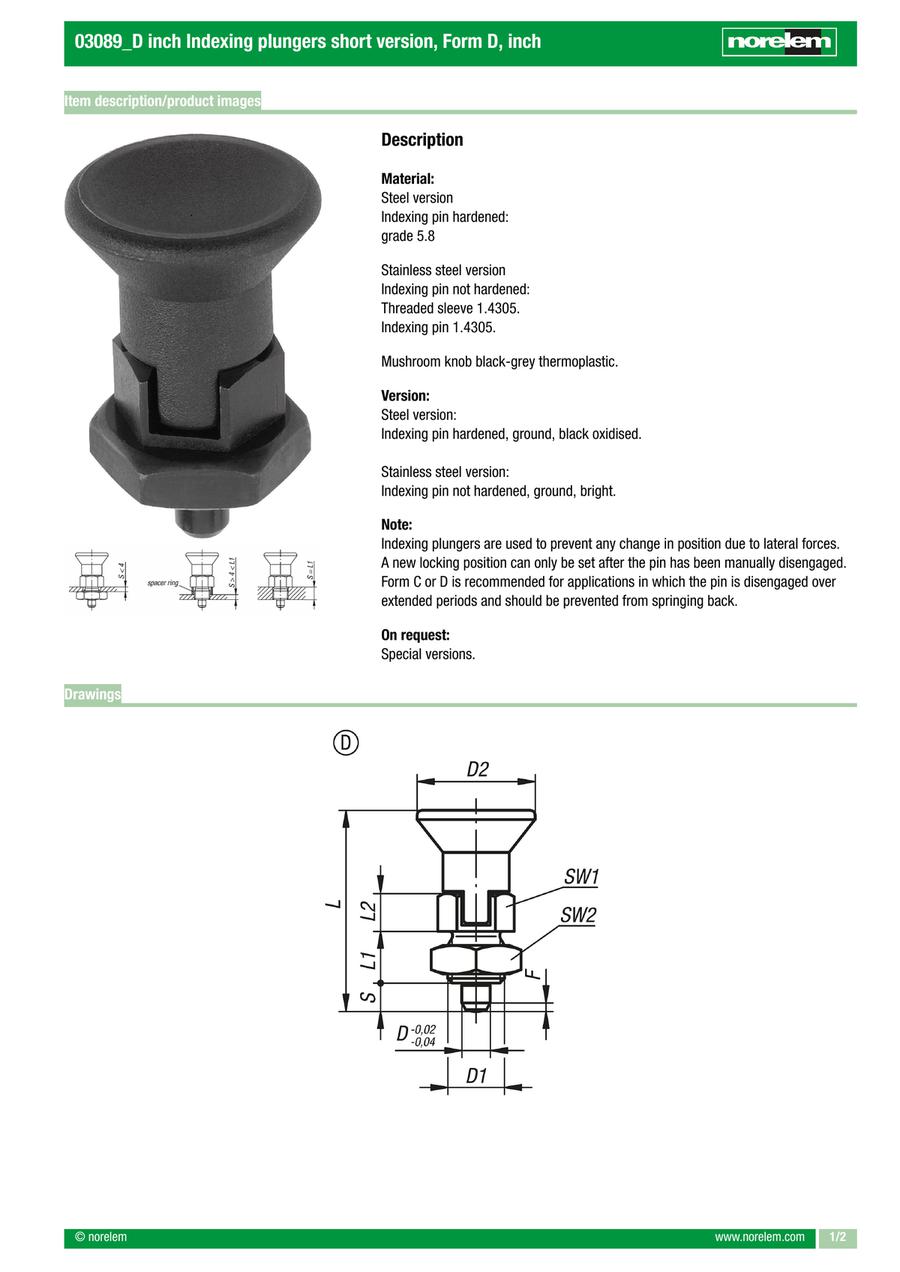

Indexing plungers short version, Form D, inch (03089)
Part number:
possible part numbers found.Part number list
Number of items
| Part number |
|---|
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
23.67 € ( 28.17 € ) | 4 working days |
22.58 € ( 26.87 € ) | 4 working days |
26.54 € ( 31.58 € ) | 4 working days |
35.76 € ( 42.55 € ) | 4 working days |
66.79 € ( 79.48 € ) | 4 working days |
16.23 € ( 19.31 € ) | 4 working days |
15.46 € ( 18.40 € ) | 4 working days |
16.67 € ( 19.84 € ) | 4 working days |
19.89 € ( 23.67 € ) | 4 working days |
32.24 € ( 38.37 € ) | 4 working days |
More Information
Basic information
· Indexing plungers facilitate indexing and locking
· Application sectors: machine, instrument and fixture construction, measuring technology, domestic use
· High stability
· Ideal where space is restricted:
· Material: steel or stainless steel
