NORELEM

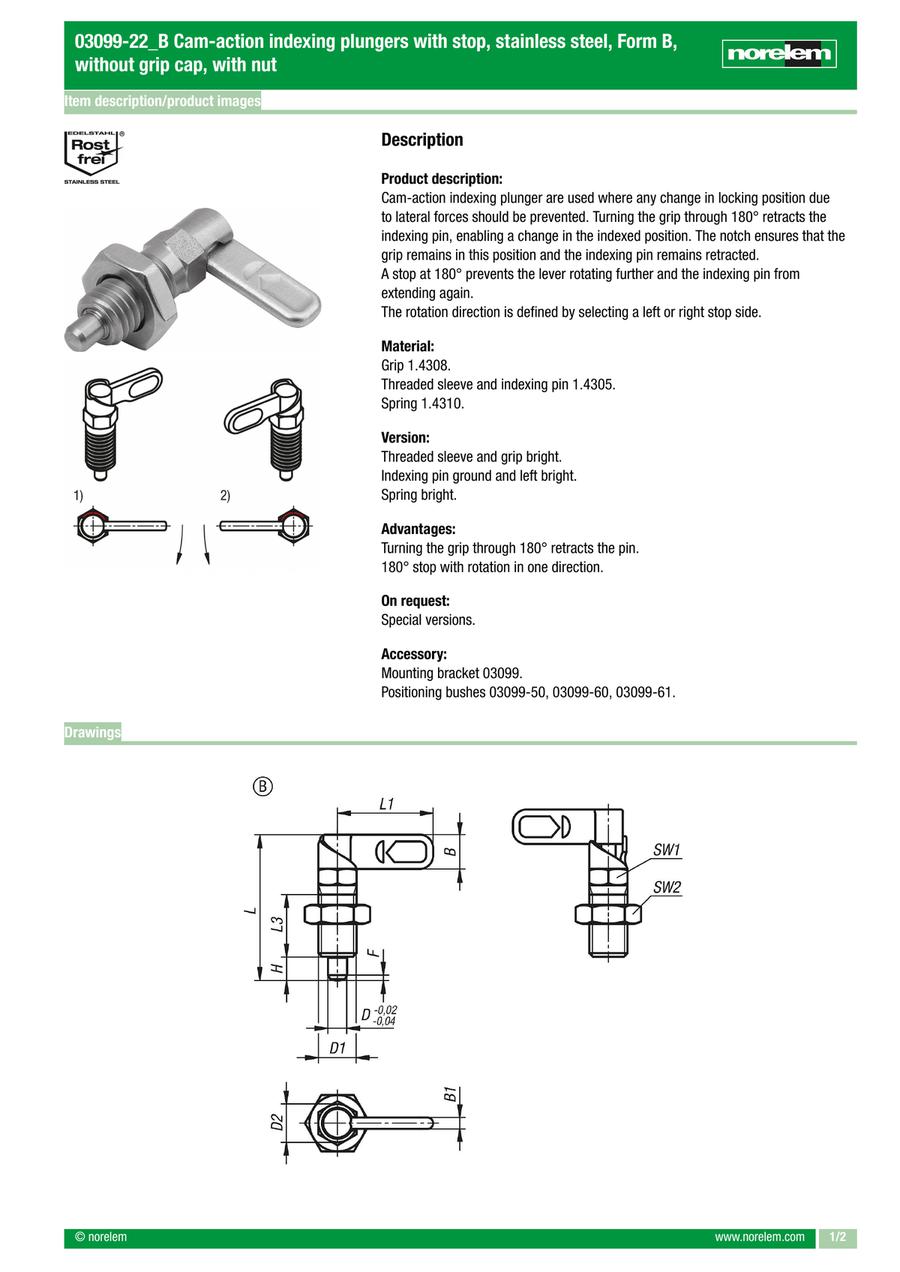

Cam-action indexing plungers with stop, stainless steel, Form B, without grip cap, with nut (03099-22)

Cam-action indexing plungers with stop, stainless steel, Form B, without grip cap, with nut (03099-22)

Part number:

Still undefined. 24 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    03099-22-11050410
    03099-22-11050510
    03099-22-11050512
    03099-22-11050610
    03099-22-11050612
    03099-22-11050616
    03099-22-11050812
    03099-22-11050816
    03099-22-110508201
    03099-22-11051016
    03099-22-110510201
    03099-22-110512201
    03099-22-21050410
    03099-22-21050510
    03099-22-21050512
    03099-22-21050610
    03099-22-21050612
    03099-22-21050616
    03099-22-21050812
    03099-22-21050816
    03099-22-210508201
    03099-22-21051016
    03099-22-210510201
    03099-22-210512201

    Version 2

    B

    (mm)

    B1

    (mm)

    D=locking pin diameter

    (mm)

    D1

    D2

    (mm)

    Fx30°

    (mm)

    H

    (mm)

    L

    (mm)

    L1=Handle length

    (mm)

    L3

    (mm)

    SW1

    (mm)

    SW2

    (mm)

    Spring force final pressure F2 approx.

    (N)

    Spring force initial pressure F1 approx.

    (N)

    Weight (ERP)

    (kg)

    		Minimum order quantity
    Left
    9
    3
    4
    M10
    10
    1
    6
    38.5
    25
    15
    10
    17
    14
    8
    0.0190
    1 pieces
    Left
    9
    3
    5
    M10
    10
    1.3
    6
    38.5
    25
    15
    10
    17
    14
    8
    0.0190
    1 pieces
    Left
    10.8
    3.6
    5
    M12
    12
    1.3
    8
    47.4
    30
    19
    12
    19
    15
    5
    0.0310
    1 pieces
    Left
    9
    3
    6
    M10
    10
    1.8
    6
    38.5
    25
    15
    10
    17
    14
    8
    0.0190
    1 pieces
    Left
    10.8
    3.6
    6
    M12
    12
    1.8
    8
    47.4
    30
    19
    12
    19
    15
    5
    0.0310
    1 pieces
    Left
    14.4
    4.8
    6
    M16
    16
    1.8
    10
    61.2
    40
    26
    16
    24
    35
    15
    0.0740
    1 pieces
    Left
    10.8
    3.6
    8
    M12
    12
    2.3
    8
    47.4
    30
    19
    12
    19
    15
    5
    0.0330
    1 pieces
    Left
    14.4
    4.8
    8
    M16
    16
    2.3
    10
    61.2
    40
    26
    16
    24
    35
    15
    0.0760
    1 pieces
    Left
    18
    6
    8
    M20x1.5
    20
    2.3
    12
    71
    50
    30
    20
    30
    60
    20
    0.1430
    1 pieces
    Left
    14.4
    4.8
    10
    M16
    16
    2.8
    10
    61.2
    40
    26
    16
    24
    35
    15
    0.0780
    1 pieces
    Left
    18
    6
    10
    M20x1.5
    20
    2.8
    12
    71
    50
    30
    20
    30
    60
    20
    0.1430
    1 pieces
    Left
    18
    6
    12
    M20x1.5
    20
    3
    12
    71
    50
    30
    20
    30
    60
    20
    0.1480
    1 pieces
    Right
    9
    3
    4
    M10
    10
    1
    6
    38.5
    25
    15
    10
    17
    14
    8
    0.0190
    1 pieces
    Right
    9
    3
    5
    M10
    10
    1.3
    6
    38.5
    25
    15
    10
    17
    14
    8
    0.0190
    1 pieces
    Right
    10.8
    3.6
    5
    M12
    12
    1.3
    8
    47.4
    30
    19
    12
    19
    15
    5
    0.0310
    1 pieces
    Right
    9
    3
    6
    M10
    10
    1.8
    6
    38.5
    25
    15
    10
    17
    14
    8
    0.0190
    1 pieces
    Right
    10.8
    3.6
    6
    M12
    12
    1.8
    8
    47.4
    30
    19
    12
    19
    15
    5
    0.0310
    1 pieces
    Right
    14.4
    4.8
    6
    M16
    16
    1.8
    10
    61.2
    40
    26
    16
    24
    35
    15
    0.0740
    1 pieces
    Right
    10.8
    3.6
    8
    M12
    12
    2.3
    8
    47.4
    30
    19
    12
    19
    15
    5
    0.0330
    1 pieces
    Right
    14.4
    4.8
    8
    M16
    16
    2.3
    10
    61.2
    40
    26
    16
    24
    35
    15
    0.0760
    1 pieces
    Right
    18
    6
    8
    M20x1.5
    20
    2.3
    12
    71
    50
    30
    20
    30
    60
    20
    0.1430
    1 pieces
    Right
    14.4
    4.8
    10
    M16
    16
    2.8
    10
    61.2
    40
    26
    16
    24
    35
    15
    0.0780
    1 pieces
    Right
    18
    6
    10
    M20x1.5
    20
    2.8
    12
    71
    50
    30
    20
    30
    60
    20
    0.1430
    1 pieces
    Right
    18
    6
    12
    M20x1.5
    20
    3
    12
    71
    50
    30
    20
    30
    60
    20
    0.1480
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    22.31 €
    ( 26.55 € )
    4 working days
    22.31 €
    ( 26.55 € )
    4 working days
    24.62 €
    ( 29.30 € )
    4 working days
    22.31 €
    ( 26.55 € )
    4 working days
    24.62 €
    ( 29.30 € )
    4 working days
    27.64 €
    ( 32.89 € )
    4 working days
    24.62 €
    ( 29.30 € )
    4 working days
    27.64 €
    ( 32.89 € )
    4 working days
    34.36 €
    ( 40.89 € )
    4 working days
    27.64 €
    ( 32.89 € )
    4 working days
    34.36 €
    ( 40.89 € )
    4 working days
    34.36 €
    ( 40.89 € )
    4 working days
    22.31 €
    ( 26.55 € )
    4 working days
    22.31 €
    ( 26.55 € )
    4 working days
    24.62 €
    ( 29.30 € )
    4 working days
    22.31 €
    ( 26.55 € )
    4 working days
    24.62 €
    ( 29.30 € )
    4 working days
    27.64 €
    ( 32.89 € )
    4 working days
    24.62 €
    ( 29.30 € )
    4 working days
    27.64 €
    ( 32.89 € )
    4 working days
    34.36 €
    ( 40.89 € )
    4 working days
    27.64 €
    ( 32.89 € )
    4 working days
    34.36 €
    ( 40.89 € )
    4 working days
    34.36 €
    ( 40.89 € )
    4 working days
  • 1

    • More Information

    Basic information

    · Turning the grip through 180° retracts the indexing pin.

    · 180° stop with rotation in one direction.

    · Optionally available with coloured plastic grip caps
