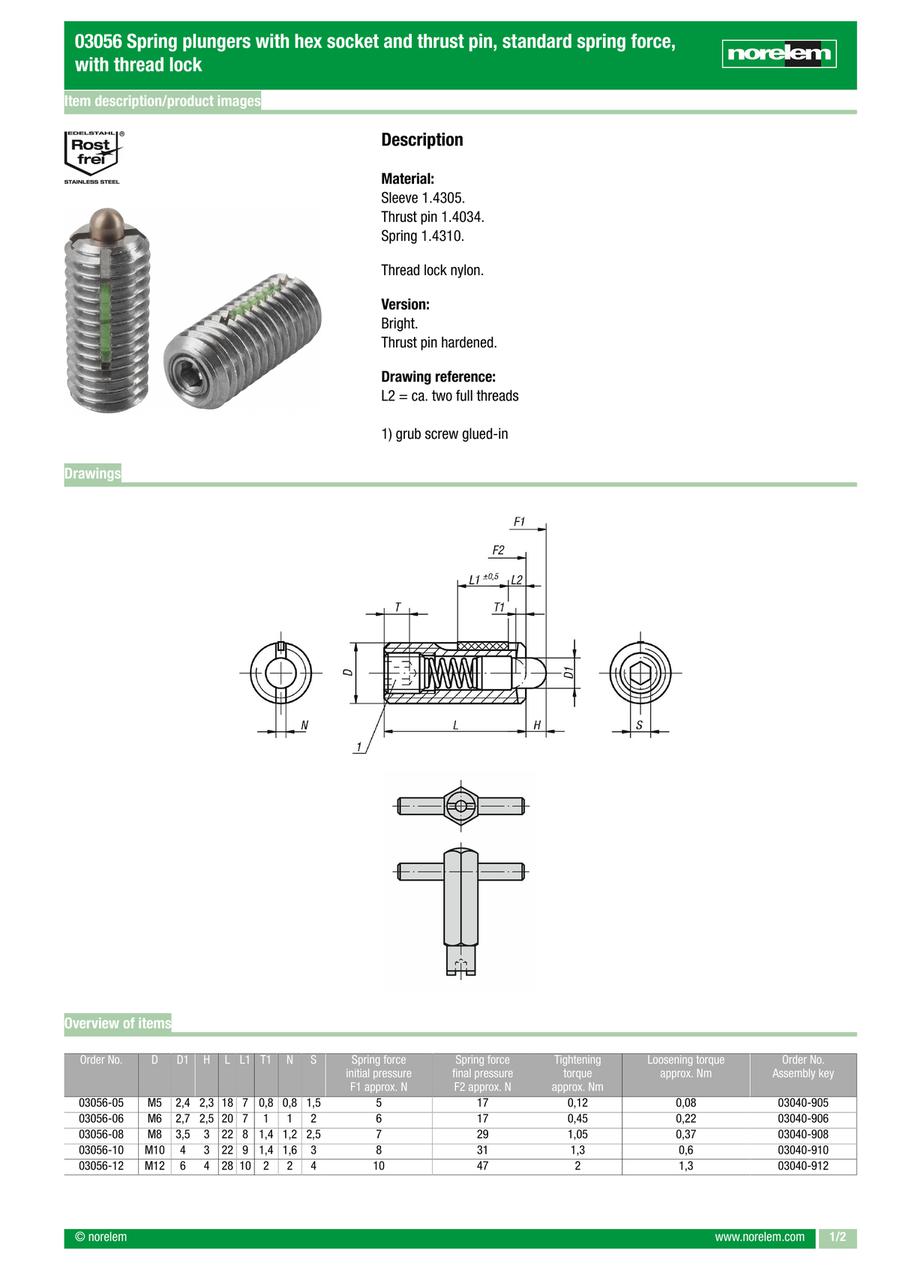

Spring plungers with hex socket and thrust pin, standard spring force, with thread lock (03056)

Spring plungers with hex socket and thrust pin, standard spring force, with thread lock (03056)

Part number:

Still undefined. 6 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    03056-05
    03056-06
    03056-08
    03056-10
    03056-12
    03056-16

    Thread M

    (mm)

    H

    (mm)

    D1

    (mm)

    L1

    (mm)

    L=Length

    (mm)

    S

    (mm)

    T1

    (mm)

    Assembly key approx. weight

    Loosening torque approx.

    (Nm)

    N

    (mm)

    Order No. assembly key

    Spring force initial pressure F1 approx.

    (N)

    Spring force final pressure F2 approx.

    (N)

    Tightening torque approx.

    (Nm)

    Weight (ERP)

    (kg)

    		Minimum order quantity
    5
    2.3
    2.4
    7
    18
    1.5
    0.8
    14
    0.08
    0.8
    03040-905
    5
    17
    0.12
    0.0017
    1 pieces
    6
    2.5
    2.7
    7
    20
    2
    1
    14
    0.22
    1
    03040-906
    6
    17
    0.45
    0.0027
    1 pieces
    8
    3
    3.5
    8
    22
    2.5
    1.4
    33
    0.37
    1.2
    03040-908
    7
    29
    1.05
    0.0056
    1 pieces
    10
    3
    4
    9
    22
    3
    1.4
    50
    0.6
    1.6
    03040-910
    8
    31
    1.3
    0.0090
    1 pieces
    12
    4
    6
    10
    28
    4
    2
    70
    1.3
    2
    03040-912
    10
    47
    2
    0.0161
    1 pieces
    16
    5
    7.5
    14
    32
    5
    2.5
    100
    3
    2.5
    03040-916
    38
    85
    3.9
    0.0340
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    7.41 €
    ( 8.82 € )
    4 working days
    7.41 €
    ( 8.82 € )
    4 working days
    8.36 €
    ( 9.95 € )
    4 working days
    9.66 €
    ( 11.50 € )
    4 working days
    13.77 €
    ( 16.39 € )
    4 working days
    21.96 €
    ( 26.13 € )
    4 working days
  • 1

    • More Information

    Basic information

    · Quick indexing, positioning and fixating of components

    · Application sectors: machine and plant construction, trade, domestic

    · Universally applicable and easy to mount

    · with thread lock: safety against vibrations, reusable

    · Stainless steel 1.4305, 1.4034, 1.4310
