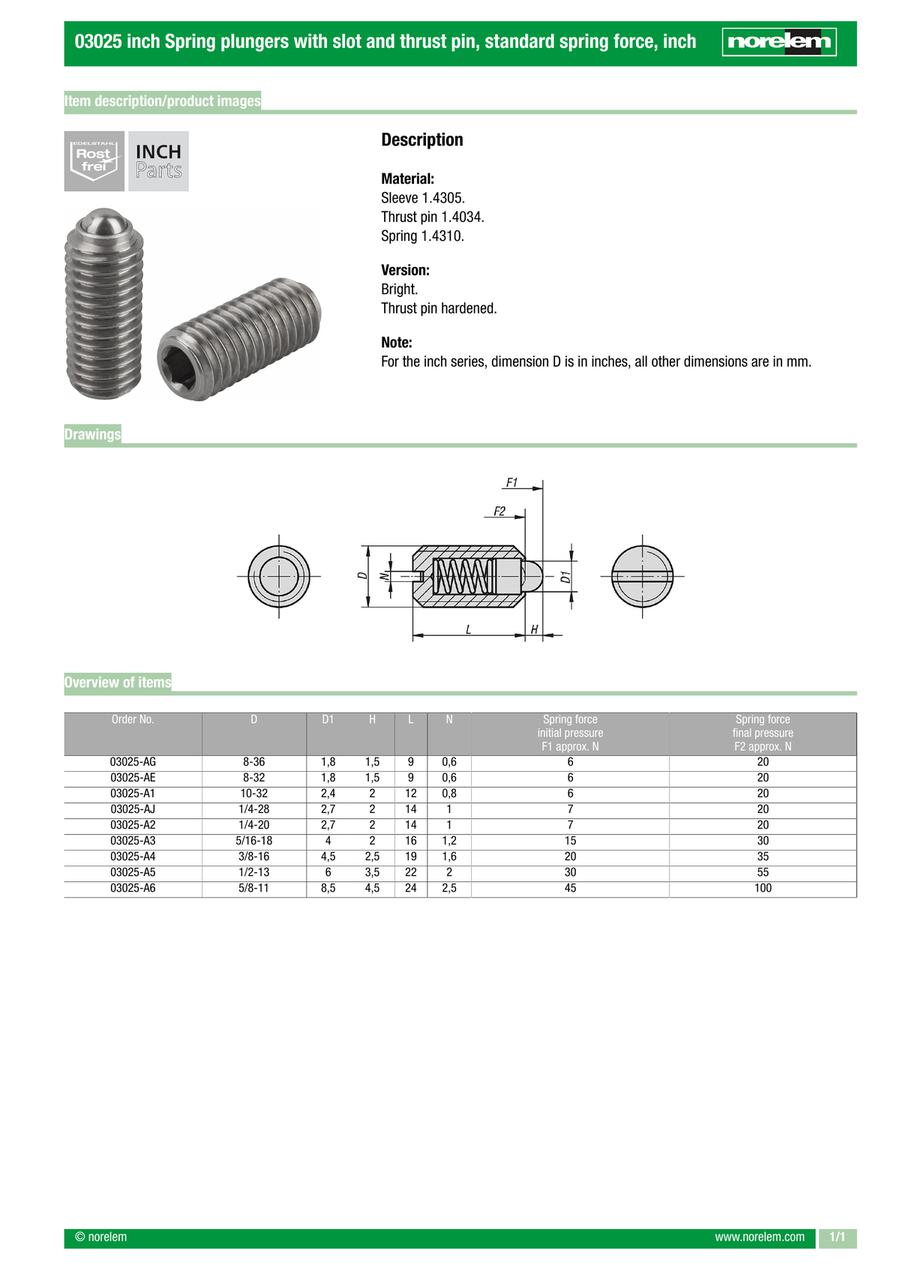

Spring plungers with slot and thrust pin, standard spring force, inch (03025)

Spring plungers with slot and thrust pin, standard spring force, inch (03025)

Part number:

Still undefined. 9 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    03025-A1
    03025-A2
    03025-A3
    03025-A4
    03025-A5
    03025-A6
    03025-AE
    03025-AG
    03025-AJ

    Initial Load

    (N)

    Max. Load

    (N)

    D=thread

    D1

    (mm)

    L=Length

    (mm)

    H

    (mm)

    N

    (mm)

    Weight (ERP)

    (kg)

    		Minimum order quantity
    6
    20
    10-32
    2.4
    12
    2
    0.8
    0.0009
    1 pieces
    7
    20
    1/4-20
    2.7
    14
    2
    1
    0.0019
    1 pieces
    15
    30
    5/16-18
    4
    16
    2
    1.2
    0.0034
    1 pieces
    20
    35
    3/8-16
    4.5
    19
    2.5
    1.6
    0.0058
    1 pieces
    30
    55
    1/2-13
    6
    22
    3.5
    2
    0.0131
    1 pieces
    45
    100
    5/8-11
    8.5
    24
    4.5
    2.5
    0.0216
    1 pieces
    6
    20
    8-32
    1.8
    9
    1.5
    0.6
    0.0007
    1 pieces
    6
    20
    8-36
    1.8
    9
    1.5
    0.6
    0.0006
    1 pieces
    7
    20
    1/4-28
    2.7
    14
    2
    1
    0.0021
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    4.11 €
    ( 4.89 € )
    4 working days
    4.11 €
    ( 4.89 € )
    4 working days
    5.46 €
    ( 6.50 € )
    4 working days
    6.28 €
    ( 7.47 € )
    4 working days
    8.05 €
    ( 9.58 € )
    4 working days
    10.58 €
    ( 12.59 € )
    4 working days
    4.14 €
    ( 4.93 € )
    4 working days
    4.14 €
    ( 4.93 € )
    4 working days
    4.11 €
    ( 4.89 € )
    4 working days
  • 1

    • More Information

    Basic information

    · Quick indexing, positioning and fixating of components

    · Application sectors: machine and plant construction, trade, domestic

    · Universally applicable and easy to mount

    · Hardened thrust pin

    · Stainless steel 1.4305, 1.4034, 1.4310
