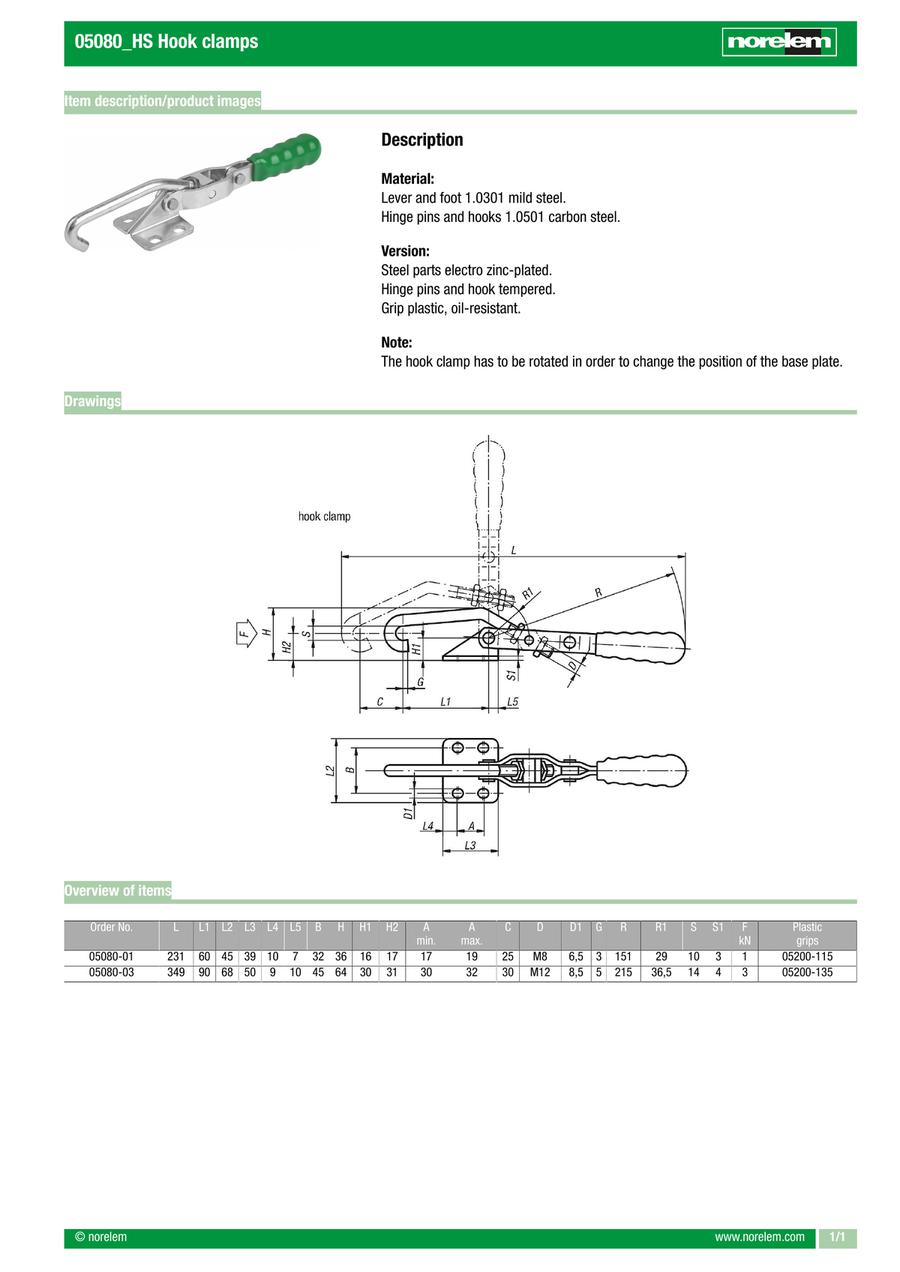

Hook clamp, steel (05080)
· Application sectors: machine construction, welding technology, metal processing, woodworking, plastics industry
· Quick locking and securing of lids and hatches
· Travel range of hasp can be adjusted
· Self-locking prevents the clamping arm opening autonomously.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 05080-01 |
| 05080-03 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | L2 | S | R | L3 | S1 | H | H2 | L | B | H1 | D1 | A max. | Plastic Grips | L5 | R1 | G | A min. | L1 | D=clamping spindle diameter | L4 | C | F (kN) | Weight in kg (ERP) (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
28.30 € | 1 | 4 Days | 45 | 10 | 151 | 39 | 3 | 36 | 17 | 231 | 32 | 16 | 6.5 | 19 | 05200-115 | 7 | 29 | 3 | 17 | 60 | M8 | 10 | 25 | 1 | 0.2369 | ||
46.63 € | 1 | 4 Days | 68 | 14 | 215 | 50 | 4 | 64 | 31 | 349 | 45 | 30 | 8.5 | 32 | 05200-135 | 10 | 36.5 | 5 | 30 | 90 | M12 | 9 | 30 | 3 | 0.6867 |
Loading...
Basic information
| Main material | steel | Item | Hook Clamp | RoHS | yes |
|---|
Configure
Basic Attributes
-
L2
-
S
-
R
- 151
- 215
-
L3
-
S1
- 3
- 4
-
H
-
H2
-
L
-
B
-
H1
-
D1
- 6.5
- 8.5
-
A max.
- 19
- 32
-
Plastic Grips
-
L5
- 7
- 10
-
R1
- 29
- 36.5
-
G
- 3
- 5
-
A min.
- 17
- 30
-
L1
-
D=clamping spindle diameter
- M8
- M12
-
L4
-
C
-
F(kN)
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
